1130 (31AH5SQ5766) - Troy-Bilt Storm 30" Snow Thrower (2007) Q-Style Handle, Frame & Discharge Chute Parts Diagram

Storm 30" Snow Thrower

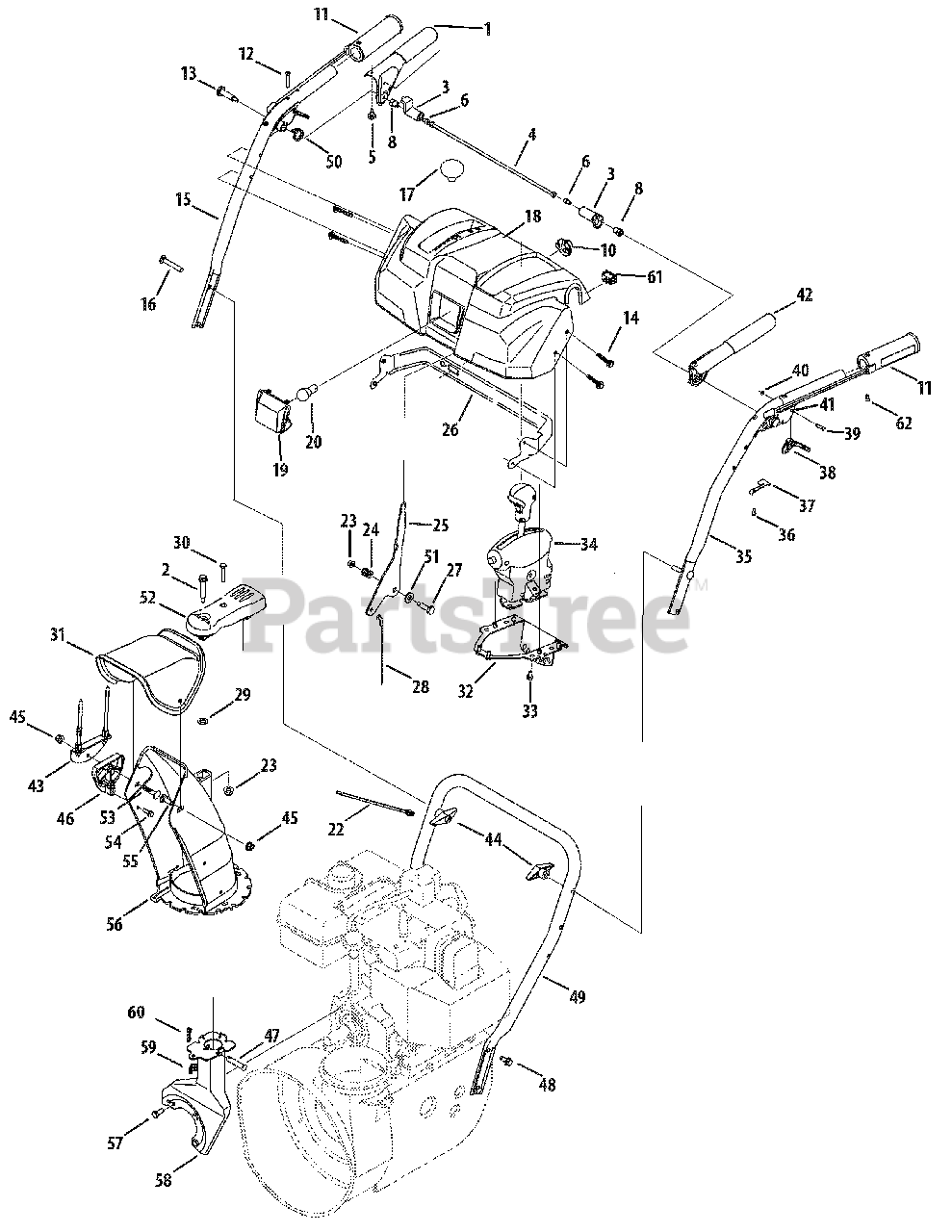

Q-Style Handle, Frame & Discharge Chute Parts Diagram

  • Title

1

Troy-Bilt 684-04106B

Handle Engagement Assembly RH
(Superseded to 684-04106D)

$20.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 738-04194

Flange Shoulder Screw

$5.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 731-04894C

Lock Plate
(Superseded to 731-04894D)

$4.99

$

In Stock, only 4 left!

0

4

Troy-Bilt 684-04250

Pivot Rod

$11.99

$

In Stock, Qty 8

0

5

Troy-Bilt 735-0199A

Rubber Bumper

$6.99

$

In Stock, Qty 16

0

6

Troy-Bilt 710-04354

Screw, 1/4-20 x.375

$3.99

$

In Stock, Qty 18

0

7

Troy-Bilt 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$3.99

$

In Stock, Qty 12

0

8

Troy-Bilt 712-04081A

Shoulder Nut, 1/4-20

$6.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 725-04214

Wire Harness (Not Shown)

$

$

Not available

10

Troy-Bilt 725-1649

Light Socket
(Superseded to 925-1649A)

$10.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 725-1757

Heated Handle Grip

$103.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 710-1233

Screw, #10-24 x 0.375

$4.49

$

In Stock, Qty 13

0

13

Troy-Bilt 738-04122

Shoulder Screw, 1/4-20 x 1.345
(Superseded to 738-04348)

$3.49

$

In Stock, only 2 left!

0

14

Troy-Bilt 710-04586

Screw, 1/4-20 x 1.625

$6.49

$

In Stock, only 2 left!

0

15

Troy-Bilt 749-04190A

Upper Handle RH

Variations

Troy-Bilt 749-04190A-0637

Right Upper Handle with Hole - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04190A-0638

Right Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04190A-0650

HANDLE-UPPER RH - RED METALLIC (0650)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04190A-0662

HANDLE-UPPER RH - OYSTER GRAY (0662)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04190A-0689

HANDLE-UPPER RH - POLO GREEN (0689)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04190A-0691

HANDLE-UPPER RH - BLACK JACK (0691)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04190A-0709

HANDLE-UPPER RH - MASTERCRAFT GREEN (0709)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04190A-0729

HANDLE-UPPER RH - STORM GRAY (0729)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04190A-4033

HANDLE-UPPER RH - FLINT MICA (4033)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04190A-0665

HANDLE-UPPER RH - YARDMAN GREEN (0665)

$

$

Not available

$36.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 710-0449

Carriage Screw, 5/16-18 x 2.25
(Superseded to 710-0572)

$3.99

$

In Stock, Qty 5

0

17

Troy-Bilt 720-04039

Shift Knob

$9.99

$

In Stock, Qty 5

0

18

Troy-Bilt 631-04181

Handle Panel (Includes Ref. #19)
(Superseded to 931-04181A)

$55.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 731-05319

Lens

$12.99

$

In Stock, Qty 5

0

20

Troy-Bilt 725-04213

Lamp
(Superseded to 925-04213)

$4.99

$

In Stock, only 3 left!

0

21

Troy-Bilt 631-04134B

Handle Clutch Lock - RH

$14.99

$

In Stock, only 3 left!

0

22

Troy-Bilt 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

23

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 732-0193

Compression Spring

$4.49

$

In Stock, Qty 8

0

25

Troy-Bilt 790-00311

Shift Lever
(Superseded to 790-00311C-0637)

Variations

Troy-Bilt 790-00311-0637

Shift Lever - POWDER BLACK (0637)

$25.99

$

In Stock, only 1 left!

0

$25.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 790-00248A

Panel Bracket
(Superseded to 790-00248E-0637)

Variations

Troy-Bilt 790-00248A-0637

Handle Support Bracket - POWDER BLACK (0637)

$22.99

$

In Stock, only 2 left!

0

$22.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 738-04125

Shoulder Screw

$4.49

$

In Stock, Qty 18

0

28

Troy-Bilt 746-04396

Speed Selector Cable
(Superseded to 946-04396A)

$19.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 736-0463

Flat Washer, .25 x .630 x .0515

$4.49

$

In Stock, only 2 left!

0

30

Troy-Bilt 710-0224

Screw, #10-16 x .500
(Superseded to 910-0224)

$3.49

$

In Stock, only 1 left!

0

31

Troy-Bilt 731-04427A

Upper Chute
(Superseded to 731-04427B)

$15.99

$

In Stock, only 2 left!

0

32

Troy-Bilt 790-00131

Joystick Bracket
(Superseded to 790-00131A-0637)

Variations

Cub Cadet 790-00131A-0637

BRACKET-LOCK CONTR - POWDER BLACK

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 710-04187

Hi-Lo Screw, 1/4-15 x 0.5
(Superseded to 710-04187A)

$6.49

$

In Stock, Qty 10

0

34

Troy-Bilt 684-04116B

4-Way Chute Control(TM) Assembly
(Superseded to 753-08388A)

$283.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 749-04191A

Upper Handle LH

Variations

Troy-Bilt 749-04191A-0638

Left Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04191A-0637

Left Upper Handle with Hole - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04191A-0650

HANDLE-UPPER LH - RED METALLIC (0650)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04191A-0662

HANDLE-UPPER LH - OYSTER GRAY (0662)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04191A-0665

HANDLE-UPPER LH - YARDMAN GREEN (0665)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04191A-0689

HANDLE-UPPER LH - POLO GREEN (0689)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04191A-0691

HANDLE-UPPER LH - BLACK JACK (0691)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04191A-0709

HANDLE-UPPER LH - MASTERCRAFT GREEN (0709)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04191A-0729

HANDLE-UPPER LH - STORM GRAY (0729)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04191A-4033

HANDLE-UPPER LH - FLINT MICA (4033)

$42.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 710-04326

Screw, #8-16 x 0.50

$3.99

$

In Stock, Qty 11

0

37

Troy-Bilt 732-04219A

Clutch Lock Spring
(Superseded to 732-04219C)

$3.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 731-04913

Steering Control

$4.99

$

In Stock, Qty 5

0

39

Troy-Bilt 738-04126

Pin, 3/16

$3.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 716-04036

E Ring

$5.99

$

In Stock, Qty 9

0

41

Troy-Bilt 631-04133A

Handle Clutch Lock - LH

$14.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 684-04105B

Handle Engagement Assembly LH
(Superseded to 684-04105D)

$21.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 784-5594

Cable Bracket

Variations

Troy-Bilt 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$10.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 710-0449

Wing Knob
(Superseded to 710-0572)

$3.99

$

In Stock, Qty 5

0

45

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 731-1313C

Chute Tilt Cable Guide

$11.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 711-04469A

Clevis Pin

$5.49

$

In Stock, Qty 8

0

48

Troy-Bilt 710-04484

Hex Screw

$3.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 749-04138

Lower Handle
(Superseded to 749-04138A)

Variations

Troy-Bilt 749-04138-0637

Lower Handle, Snow - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 732-04238

Torsion Spring
(Superseded to 732-04238B)

$4.99

$

In Stock, Qty 12

0

51

Troy-Bilt 736-0267

Flat Washer

$4.49

$

Usually ships in 3-6 days

0

52

Troy-Bilt 731-04890A

Joystick Pulley Cover
(Superseded to 753-04875P)

$106.99

$

In Stock, Qty 6

0

53

Troy-Bilt 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 14

0

54

Troy-Bilt 710-0895

Hi-Lo Screw, 1/4-15 x .75

$5.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 710-04071

Carriage Bolt, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 16

0

56

Troy-Bilt 731-04861B

Lower Chute

$41.99

$

In Stock, only 1 left!

0

57

Troy-Bilt 710-0627

Hex Screw, 5/16-24 x .750

$3.99

$

In Stock, Qty 20+

0

58

Troy-Bilt 684-04162B

Chute Support Bracket
(Superseded to 684-04162B-0637)

Variations

Troy-Bilt 684-04162B-0637

BRACKET ASM-SUPT CHUTE - POWDER BLACK (0637)

$

$

Not available

$

$

59

Troy-Bilt 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

60

Troy-Bilt 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

61

Troy-Bilt 725-04393

Heated Grip Switch

$15.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 710-0837

AB Screw

$4.49

$

In Stock, Qty 11

0

Troy-Bilt TC-35062

Starter Key

Note: Not Shown

$3.99

$

In Stock, only 2 left!

0
