1130 SB (961930043-00) - Husqvarna 30" Snow Blower (2008-11) Deflector Control / Discahrge Chute Parts Diagram

30" Snow Blower

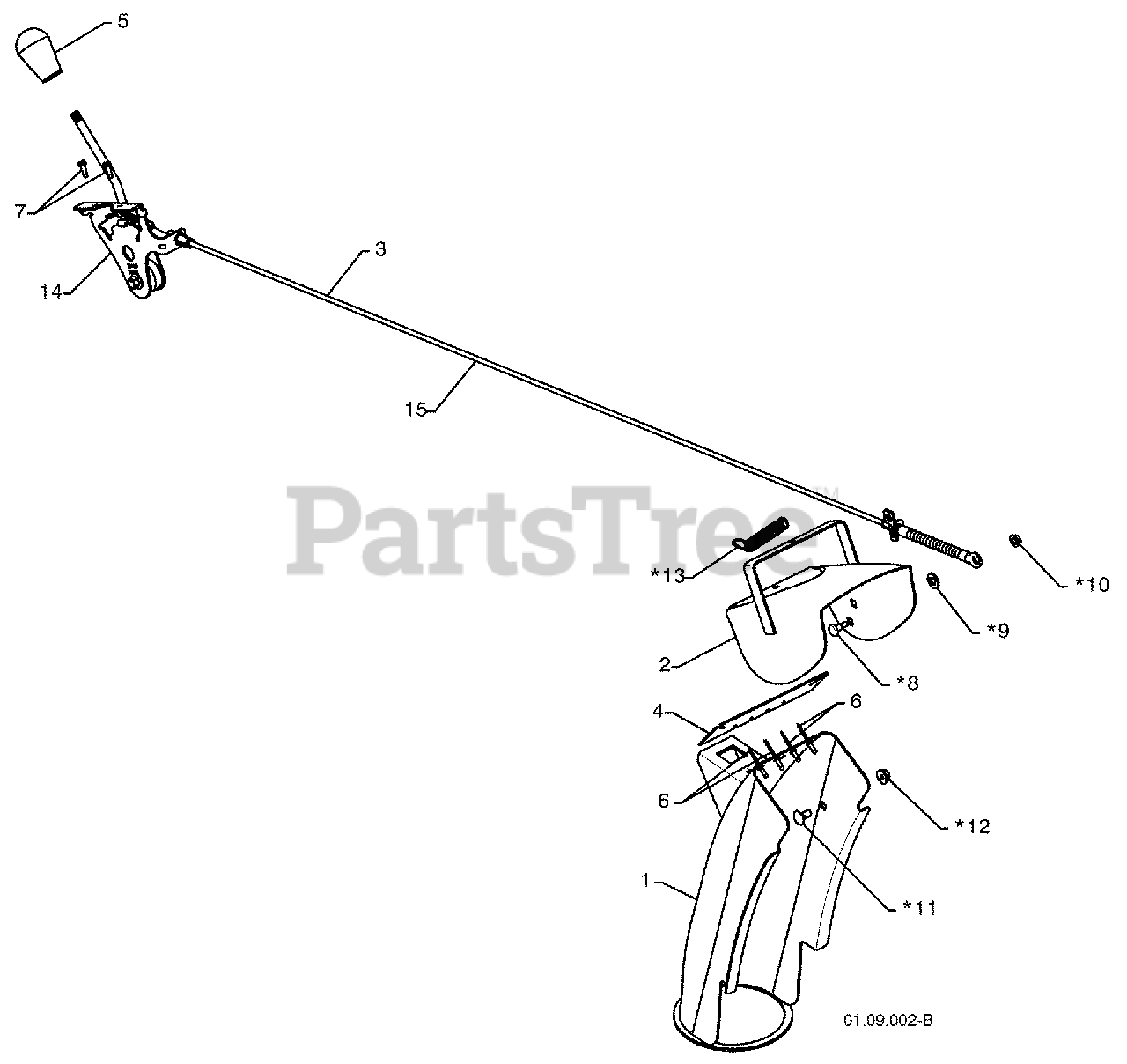

Deflector Control / Discahrge Chute Parts Diagram

  • Title

1

Husqvarna 532407650

CHUTE WELDMENT
(Superseded to 532444041)

$113.99

$

In Stock, only 2 left!

0

2

Husqvarna 532184113

DEFLECTOR WELDMENT
(Superseded to 588077802)

$113.99

$

In Stock, only 2 left!

0

3

Husqvarna 532420673

DEFLECTOR CONTROL ASSEMBLY
(Superseded to 587030801)

$68.99

$

In Stock, only 1 left!

0

4

Husqvarna 532420325

DEFLECTOR SEAL

$6.99

$

In Stock, only 1 left!

0

5

Husqvarna 532414280

KNOB BLACK

$7.99

$

In Stock, Qty 5

0

6

Husqvarna 532128415

POP RIVET

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 817501010

SCREW 10-24 X .625

$

$

Not available

8

Husqvarna 532179829

SHOULDER SCREW

Note: ALL ITEMS INDICATED WITH AN * ARE PROVIDED IN THE BAG OF ITEMS SHIPPED LOOSE WITH PRODUCT.

$4.99

$

In Stock, Qty 10

0

9

Husqvarna 532179246

PLASTIC WASHER

Note: ALL ITEMS INDICATED WITH AN * ARE PROVIDED IN THE BAG OF ITEMS SHIPPED LOOSE WITH PRODUCT.

$3.99

$

In Stock, only 2 left!

0

10

Husqvarna 532191730

NUT 1/4-20

Note: ALL ITEMS INDICATED WITH AN * ARE PROVIDED IN THE BAG OF ITEMS SHIPPED LOOSE WITH PRODUCT.

$3.99

$

In Stock, Qty 6

0

11

Husqvarna 872250505

CARRIAGE BOLT 5/16-18 X .50
(Superseded to 596136401)

Note: ALL ITEMS INDICATED WITH AN * ARE PROVIDED IN THE BAG OF ITEMS SHIPPED LOOSE WITH PRODUCT.

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 532751153

NUT 5/16-18
(Superseded to 585802801)

Note: ALL ITEMS INDICATED WITH AN * ARE PROVIDED IN THE BAG OF ITEMS SHIPPED LOOSE WITH PRODUCT.

$5.99

$

In Stock, Qty 5

0

13

Husqvarna 532184505

DEFLECTOR SPRING

Note: ALL ITEMS INDICATED WITH AN * ARE PROVIDED IN THE BAG OF ITEMS SHIPPED LOOSE WITH PRODUCT.

$7.99

$

In Stock, Qty 12

0

14

Husqvarna 532420679

(SERVICE PART) DEFLECTOR CONTROL HEAD
(Superseded to 587030801)

$68.99

$

In Stock, only 1 left!

0

15

Husqvarna 532420672

(SERVICE PART) DEFLECTOR CONTROL CABLE
(Superseded to 587030901)

$62.99

$

In Stock, only 3 left!

0
