1130 SBE (961930017-01) - Husqvarna 30" Snow Blower (2008-01) Chassis / Engine / Pulleys Parts Diagram

30" Snow Blower

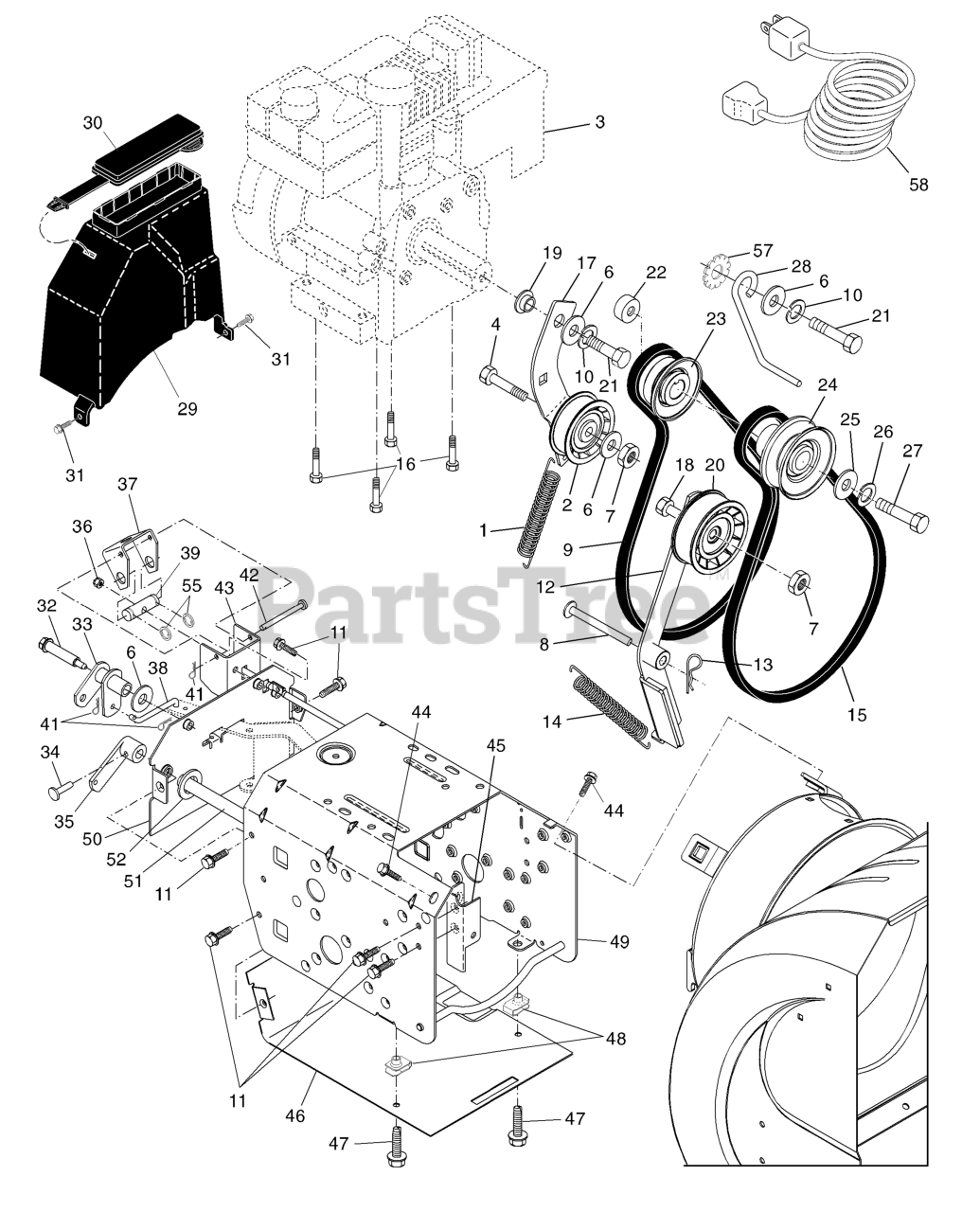

Chassis / Engine / Pulleys Parts Diagram

  • Title

1

Husqvarna 532181044

RP SPRING, TRACTION IDLER
(Superseded to 532414557)

$6.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532180522

PULLEY.W/SPACER.2.25

Note: (2-1/4)

$28.99

$

In Stock, Qty 5

0

3

Engine, Tecumseh, Model Number LH358SA

Note: (For engine service and replacement parts, call Tecumseh Products at 1-800-558-5402)

$

$

Not available

4

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 595305701)

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, Qty 5

0

7

Husqvarna 532166785

LOCKNUT 5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, Qty 15

0

8

Husqvarna 532175330

PIN, IDLER PIVOT

$5.99

$

In Stock, Qty 10

0

9

Husqvarna 532179092

V-BELT, TRACTION DRIVE
(Superseded to 532416954)

$

$

Not available

10

Husqvarna 810400500

LOCKWASHER
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 817490508

Screw, Hex Head 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

12

Husqvarna 532410420

ARM PAD ASSY
(Superseded to 532422111)

$

$

Not available

13

Husqvarna 532085179

RETAINER CLIP PM

$

$

Not available

14

Husqvarna 532178828

SPRING, BRAKE

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532408010

BELT.V.IMPELLER.DRIVE

$

$

Not available

16

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, Qty 12

0

17

Husqvarna 532184804

IDLER ARM
(Superseded to 585238401)

$34.99

$

In Stock, only 2 left!

0

18

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$1.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532175331

RP BUSHING, IDLER PIVOT
(Superseded to 587343701)

$6.99

$

In Stock, only 4 left!

0

20

Husqvarna 532180523

PULLEY.W/SPACER.2.75
(Superseded to 594095301)

Note: (2-3/4)

$13.99

$

Usually ships in 3-10 days

0

21

Husqvarna 874610516

SCREW

$4.99

$

In Stock, only 4 left!

0

22

Husqvarna 532409475

SPACER.ENGINE.PULLEY

$

$

Not available

23

Husqvarna 532180478

PULLEY,ENGINE TRACTION DRIVE
(Superseded to 595926601)

$37.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532179157

PULLEY, ENGINE IMPELLER DRIVE
(Superseded to 532426491)

$20.99

$

In Stock, only 2 left!

0

25

Husqvarna 532400026

WASHER, FLAT 3/8

$9.49

$

In Stock, only 2 left!

0

26

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 532155452

BELT.GUIDE.RH

$5.99

$

In Stock, only 4 left!

0

29

Husqvarna 532192213

COVER.ASM.BELT/STORAGE
(Superseded to 532443030)

Note: (Includes Toolbox Cover)

$

$

Not available

30

Husqvarna 532178830

COVER.STORAGE.SNOW

$

$

Not available

31

Husqvarna 817490408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, only 3 left!

0

32

Husqvarna 532179256

BOLT, SHOULDER 5/16-18

$

$

Not available

33

Husqvarna 532187853

BELLCRANK SHIFTER

$

$

Not available

34

Husqvarna 532198580

CLEVIS PIN

$3.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532405485

ARM, AUGER CONTROL

$9.49

$

In Stock, only 2 left!

0

36

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$

$

Not available

37

Husqvarna 532184086

BRACKET, PIVOT

$

$

Not available

38

Husqvarna 532187101

LINK, SPEED CONTROL

$

$

Not available

39

Husqvarna 532192110

TRUNNION, TRACTION

$

$

Not available

41

Husqvarna 532700279

RETAINER CLIP

$3.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532179065

PIN, PIVOT BRACKET

$

$

Not available

43

Husqvarna 532184085

BRACKET

$

$

Not available

44

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 20+

0

45

Husqvarna 532184074

BRACKET, IDLER PIVOT
(Superseded to 532422762)

$102.99

$

In Stock, only 1 left!

0

46

Husqvarna 532184084

PAN, FRAME BOTTOM
(Superseded to 532178624)

$

$

Not available

47

Husqvarna 871020512

Screw, Hex Head 5/16-18 x 3/4

$

$

Not available

48

Husqvarna 532181156

NUT.SPEED.5/16-18

$3.49

$

In Stock, only 2 left!

0

49

Husqvarna 532407642

FRAME ASSEMBLY
(Superseded to 532404431)

$

$

Not available

50

Husqvarna 532188002

PLATE, FRAME END
(Superseded to 583706301)

$

$

Not available

51

Husqvarna 532406109

SHAFT, AUGER CONTROL
(Superseded to 532429668)

$37.99

$

In Stock, only 2 left!

0

52

Husqvarna 532057079

THRUST WASHER

$2.49

$

In Stock, Qty 13

0

55

Husqvarna 512000002

Ring, Crescent

$

$

Currently unavailable

57

Husqvarna 811050500

WASHER EXT TOOTH LOCK 5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

58

Husqvarna 532198563

CORD.ELECTRIC.10FT.120V.SNOW

$26.99

$

In Stock, only 4 left!
