1130 SBE OV (961930024-00) - Husqvarna 30" Snow Blower (2008-01) Drive Parts Diagram

30" Snow Blower

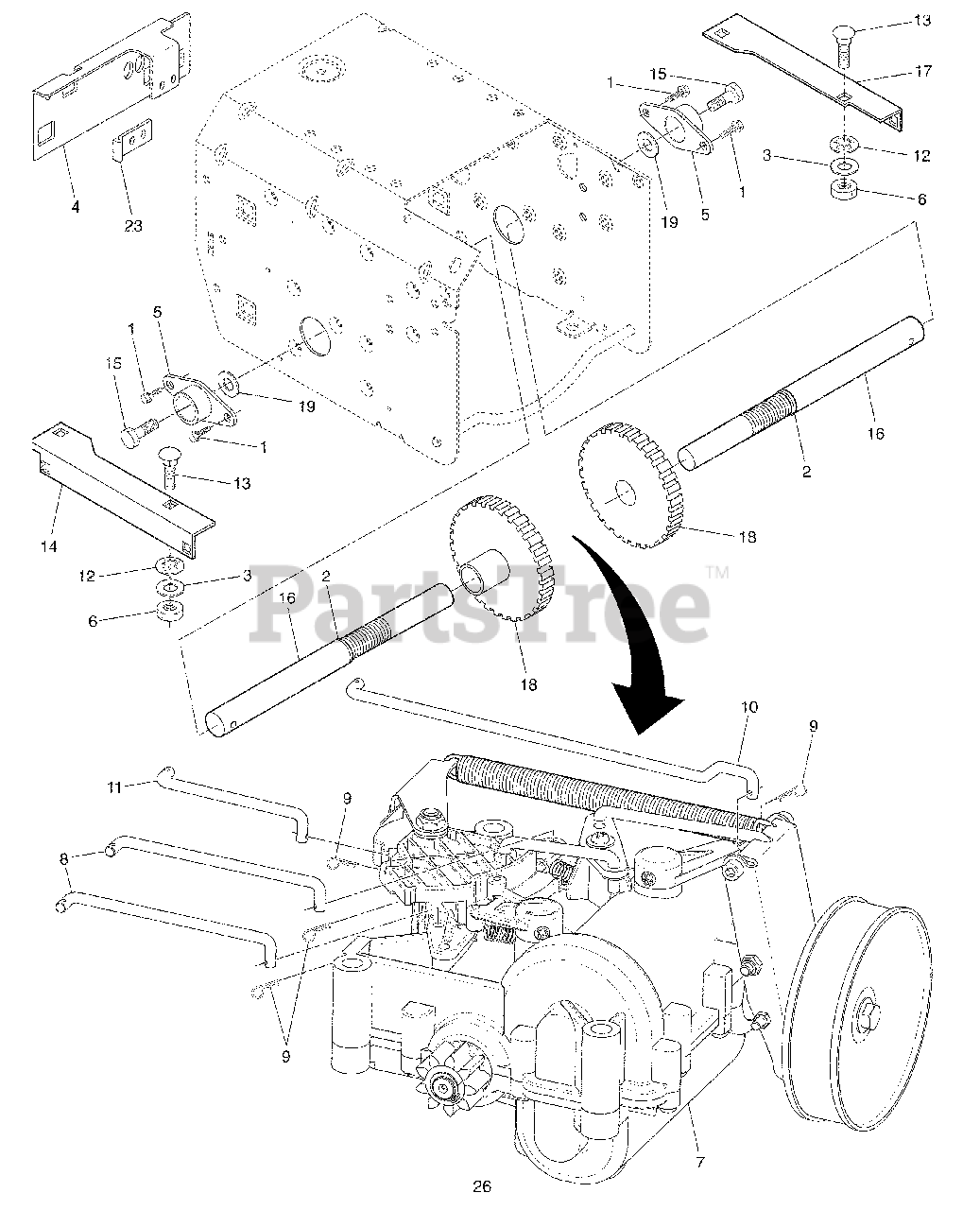

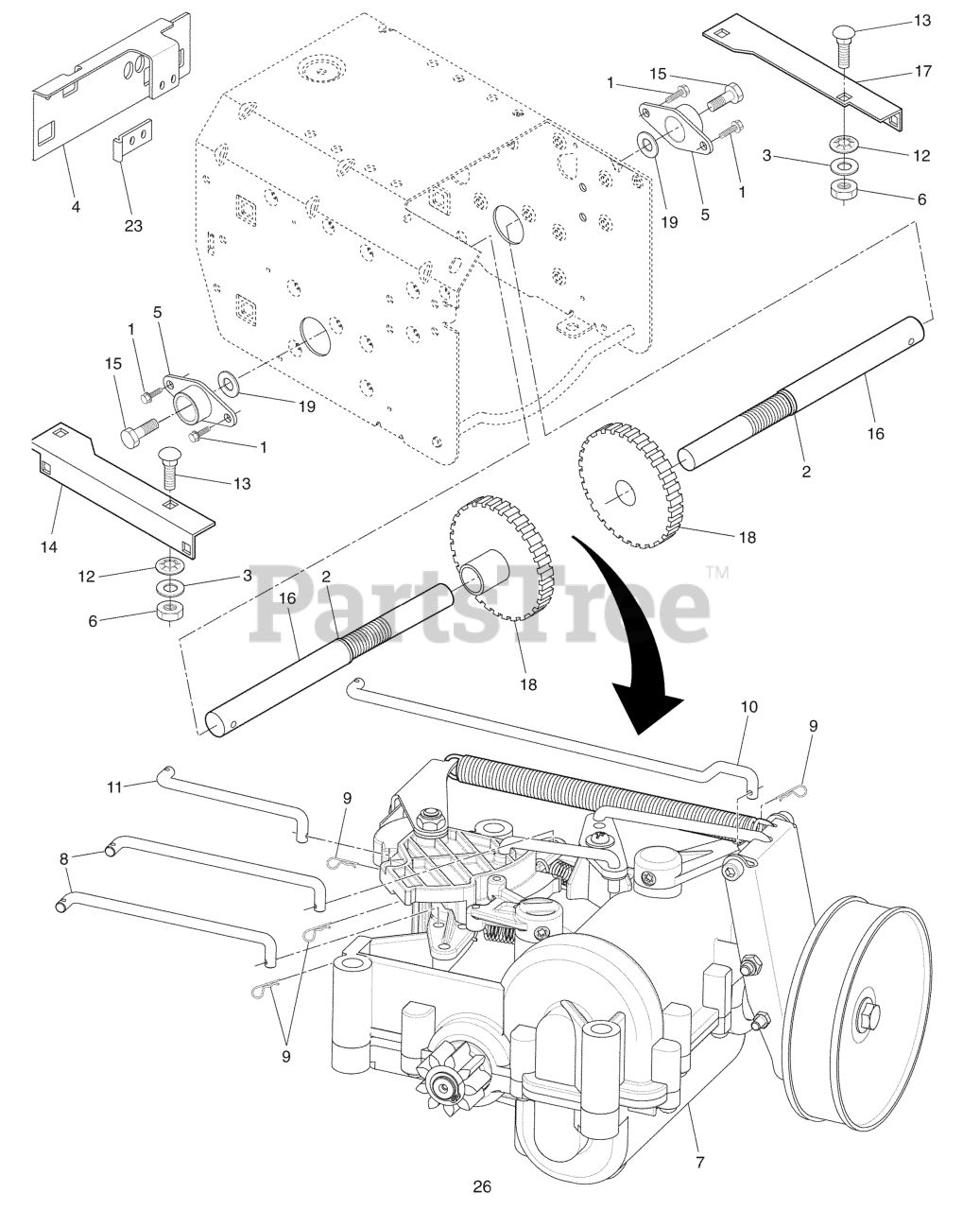

Drive Parts Diagram

  • Title

1

Husqvarna 817490508

Screw, Hex Head 5/16-18 x 3/4
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 812000004

Ring, Retaining

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 819191316

Washer, Flat

$

$

Currently unavailable

4

Husqvarna 532413271

Plate, Rod Alignment

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532402195

Bearing, Axle

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 873800600

Nut, Hex, Centerlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532411195

Transmission Assembly

$377.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532411203

Control Rod, Steering

$

$

Not available

9

Husqvarna 532700279

Retainer Clip

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532411205

Control Rod, Clutch

$

$

Not available

11

Husqvarna 532411202

Control Rod, Speed

$

$

Not available

12

Husqvarna 532401220

Nut, Push

$2.99

$

Usually ships in 3-10 days

0

13

Husqvarna 872110626

Bolt, Carriage 3/8-16 x 3-1/4

$

$

Not available

14

Husqvarna 532411196

Bracket, GT Transmission, RH

$

$

Not available

15

Husqvarna 532150078

Screw, Hex Head
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 532412286

Shaft, Axle

$

$

Not available

18

Husqvarna 532411213

Gear, Axle

$

$

Not available

17

Husqvarna 532411197

Bracket, GT Transmission, LH

$

$

Not available

19

Husqvarna 532412810

Washer, Flat

$

$

Not available

23

Husqvarna 532419212

Spring, Leaf

$2.99

$

Usually ships in 3-10 days

0
