1130 SE (1695442) - John Deere 30" Snow Thrower (2008) Auger Drive Group - 30" Parts Diagram

30" Snow Thrower

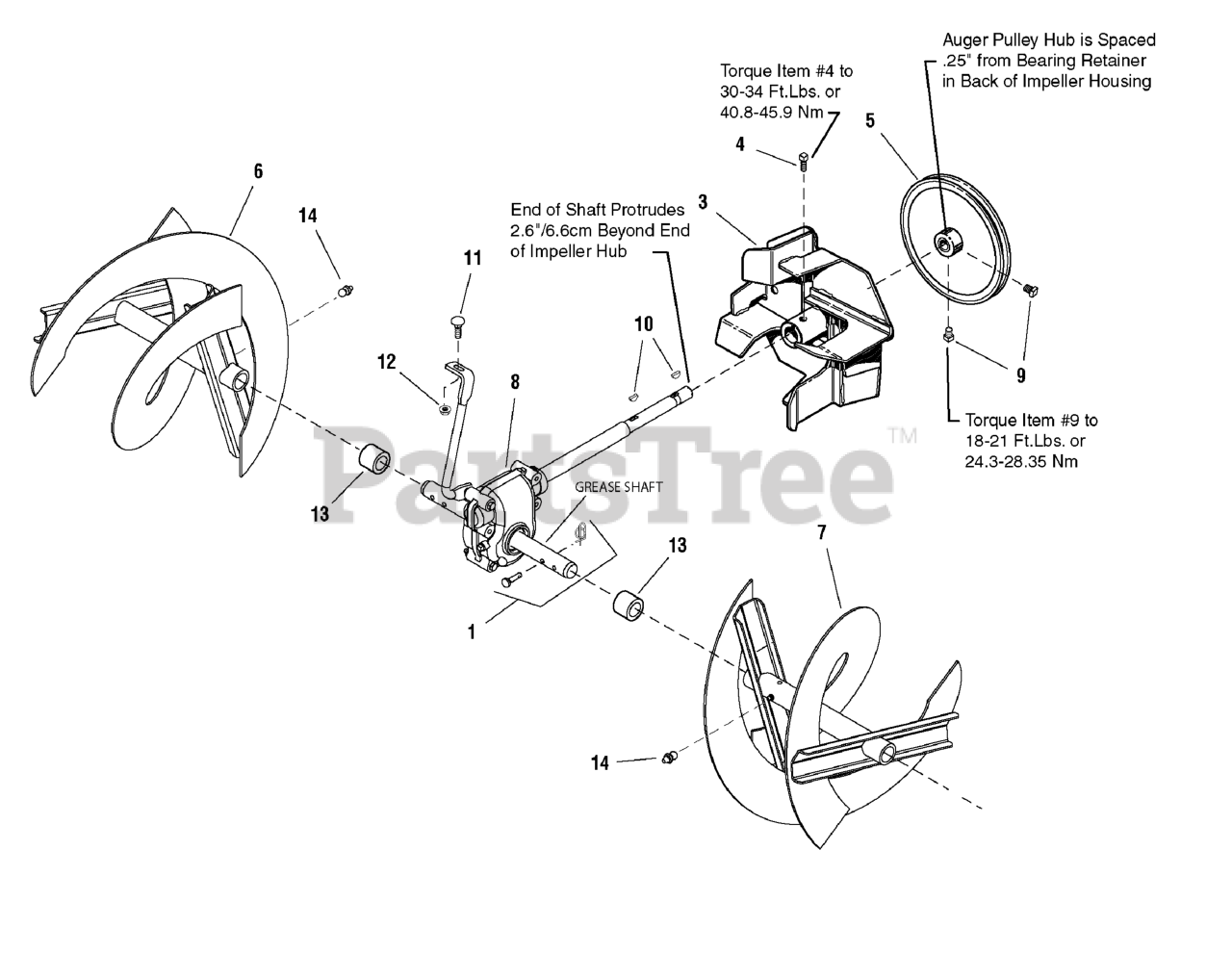

Auger Drive Group - 30" Parts Diagram

  • Title

1

Murray 1687404

KIT, Shear Pin
(Superseded to 1687404K)

$

$

Not available

3

Murray 1612187BCYP

IMPELLER ASSEMBLY
(Superseded to 1612187BMYP)

$201.99

$

In Stock, only 2 left!

0

4

Murray 1960474SM

SCREW, Set Square Head Cup Point, 3/8-16 x 1/2 G8

$5.99

$

In Stock, Qty 7

0

5

Murray 1732185SM

PULLEY, 8.40 OD .752ID .720WD W/Hub
(Superseded to 1752220YP)

$87.99

$

In Stock, Qty 6

0

6

Murray 1734676BCYP

AUGER ASSEMBLY, 28" & 30" R.H.

$

$

Not available

7

Murray 1734675BCYP

AUGER ASSEMBLY, 28" & 30" L.H.

$

$

Not available

8

Murray 1732303SM

GEAR BOX ASSEMBLY

$512.99

$

Usually ships in 2-12 days

0

9

Murray 1928721SM

SCREW, Set Square Head Cup Point, 5/16-18 x 1/2 G8

$4.99

$

In Stock, Qty 13

0

10

Murray 2818312SM

KEY, Woodruff
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

11

Murray 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

12

Murray 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

13

Murray 1733406SM

TUBE, Plastic

$5.49

$

In Stock, only 2 left!

0

14

Murray 2821133SM

FITTING, Lube, 1/4 Drive, No Check Ball
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0
