1130 SE (1695442) - John Deere 30" Snow Thrower (2008) Auger Housing and Chute Group - 30" Parts Diagram

30" Snow Thrower

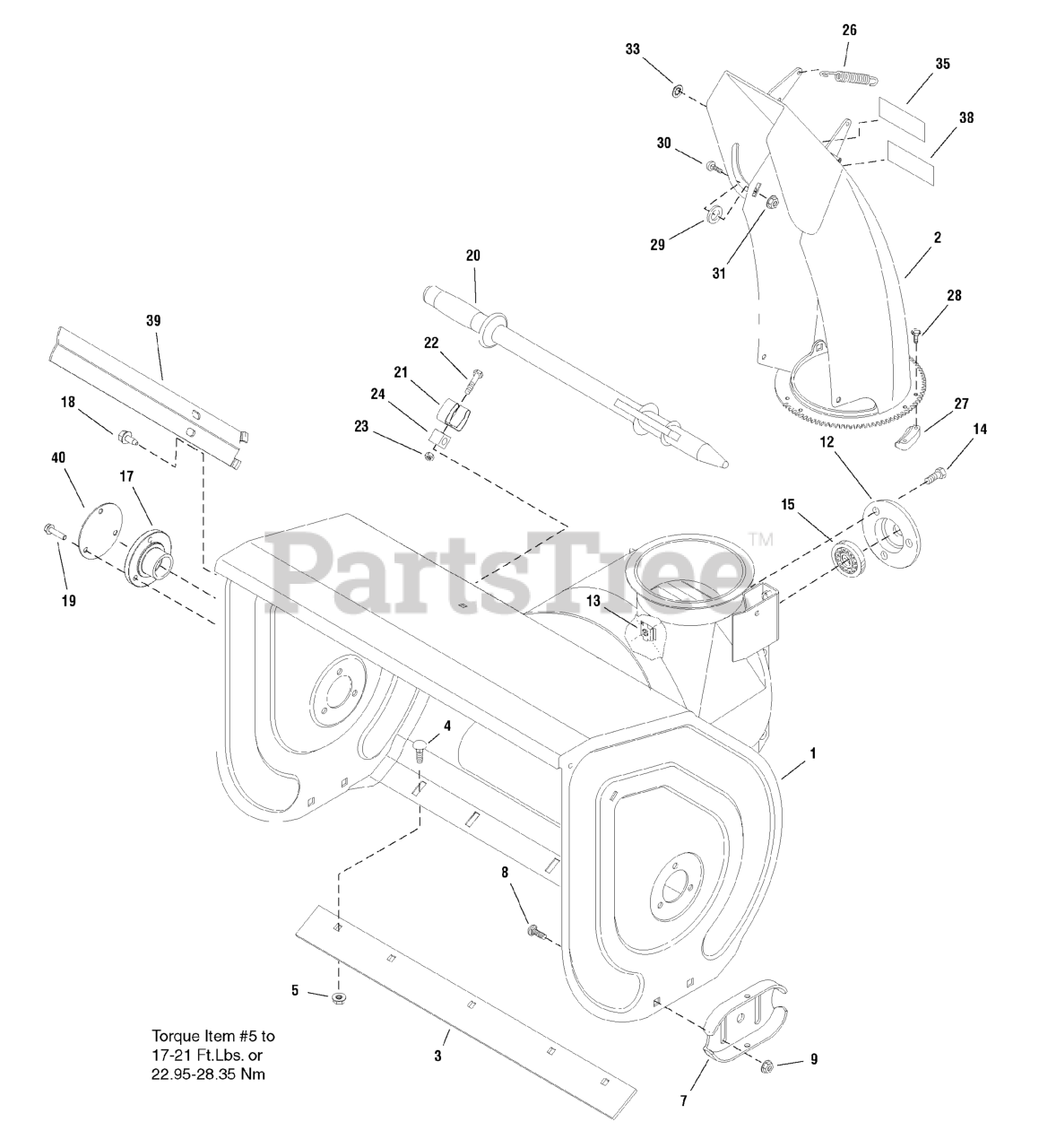

Auger Housing and Chute Group - 30" Parts Diagram

  • Title

1

Murray 1734742FSM

AUGER HOUSING ASSEMBLY, 30" Auger

$569.99

$

Usually ships in 2-12 days

0

2

Murray 1732744FSM

CHUTE & DEFLECTOR ASSEMBLY

$344.99

$

Usually ships in 2-12 days

0

3

Murray 1732385ASM

BLADE, Scraper, 30"
(Superseded to 1732385BMYP)

$54.99

$

In Stock, only 2 left!

0

4

Murray 1960699SM

CARRIAGE BOLT, 5/16-18 x 5/8 G5
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

5

Murray 1935048SM

NUT, Hex Flange Two-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

7

Murray 1727854ASM

SKID, Shoe Reversible
(Superseded to 1727854BMYP)

$16.99

$

In Stock, Qty 13

0

8

Murray 1960711SM

CARRIAGE BOLT, 3/8-16 x 3/4 G5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

9

Murray 1960687SM

NUT, Hex Flange ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

12

Murray 1665982SM

BEARING, Retainer

$7.49

$

In Stock, Qty 9

0

13

Murray 1930659SM

RETAINER, Nut, 5/16-18

$6.49

$

Usually ships in 2-12 days

0

14

Murray 1960738SM

SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 9

0

15

Murray 2108202SM

BEARING, Greased

$11.99

$

In Stock, Qty 20+

0

17

Murray 1733103SM

BUSHING, Auger Flange

$12.99

$

In Stock, only 2 left!

0

18

Murray 1664847SM

SCREW Hex Head, .312-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

19

Murray 1931202SM

SCREW, Hex Washer Head Taptite 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, Qty 10

0

20

Murray 1733209SM

STICK, Cleanout w/Brush
(Superseded to 1736094YP)

$36.99

$

In Stock, only 2 left!

0

21

Murray 1501672MA

CLIP, Retainer

$9.49

$

In Stock, Qty 14

0

22

Murray 2860604SM

SCREW, Hex Washer Head Slot

$4.99

$

In Stock, Qty 20+

0

23

Murray 1933896SM

NUT, Hex Lock 10-24 w/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, Qty 5

0

24

Murray 578063MA

BLOCK, Universal Pivot

$5.99

$

In Stock, Qty 8

0

26

Murray 1733455SM

SPRING, Extension

$9.99

$

In Stock, only 1 left!

0

27

Murray 7011938SM

RETAINER, Spout

$4.49

$

Usually ships in 2-12 days

0

28

Murray 1960001SM

CAPSCREW, Hex Washer Head Taptite, #10C x 5/8 GR5 BZ
(Superseded to 703062)

$4.99

$

In Stock, Qty 20+

0

29

Murray 2860210SM

WASHER, Nylon, .388 x 1.12 x .030

$4.99

$

In Stock, only 2 left!

0

30

Murray 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

31

Murray 1960686SM

NUT, Hex Flange ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

33

Murray 1932718SM

NUT, Push for .312 DIA Stud Capped .625OD
(Superseded to 704028)

$5.49

$

In Stock, Qty 9

0

35

Murray 1734738SM

DECAL, Hinge Upper

$11.99

$

Usually ships in 2-12 days

0

38

Murray 1734739SM

DECAL, Hinge Lower

$10.99

$

Usually ships in 2-12 days

0

39

Murray 1733102ASM

DRIFT CUTTER

$32.99

$

In Stock, only 4 left!

0

40

Murray 1734932ASM

COVER, Bushing
(Superseded to 1734932BMYP)

$12.99

$

Usually ships in 2-12 days

0
