1130 SE (31AE573H101) - Cub Cadet 30" Snow Thrower (1999) Chute & Controls Parts Diagram

30" Snow Thrower

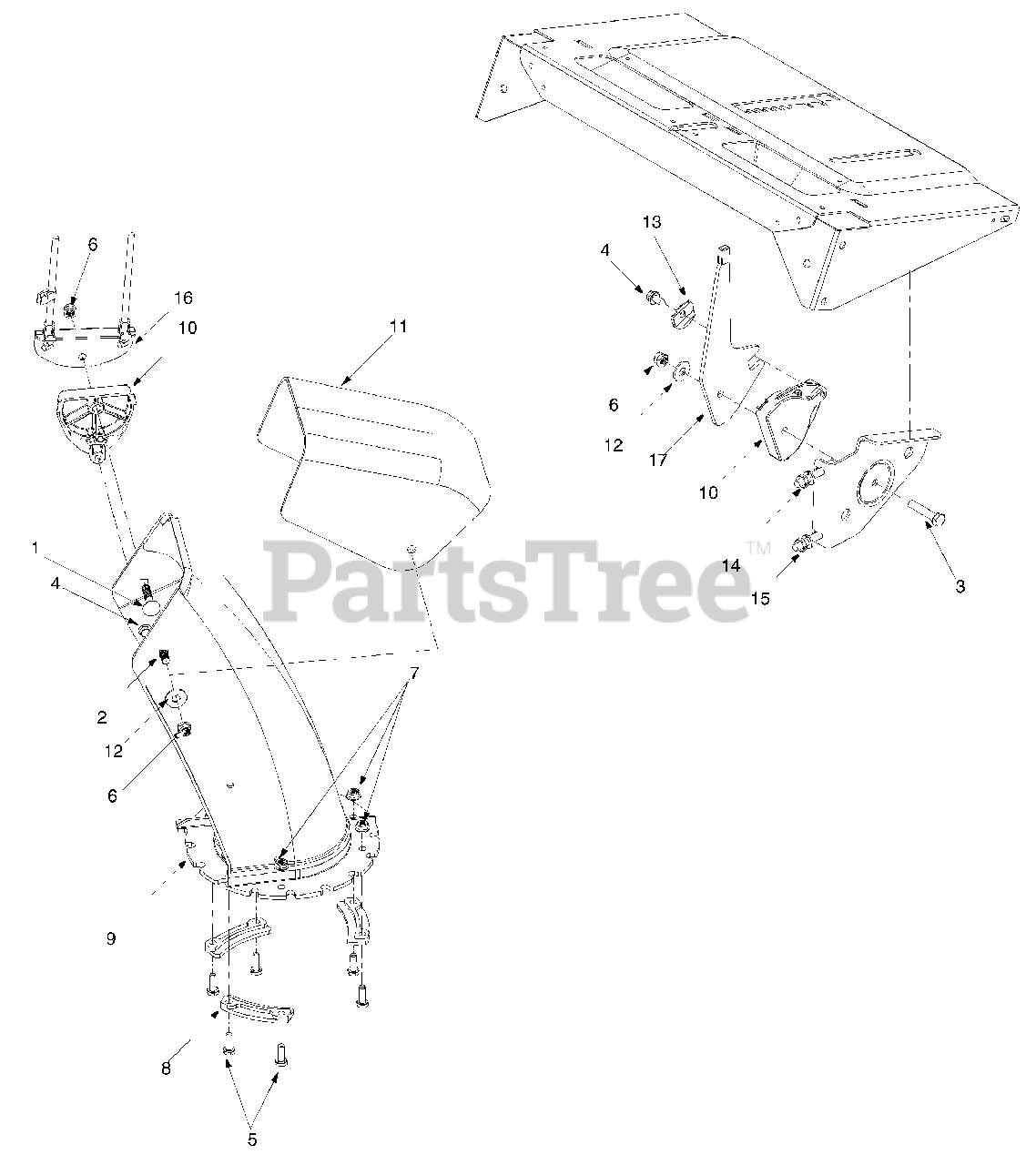

Chute & Controls Parts Diagram

  • Title

1

Cub Cadet 710-0262

Carriage Bolt: 5/16-18 x 1.5"

$3.99

$

In Stock, Qty 14

0

2

Cub Cadet 710-0451

Carriage Bolt: 5/16-18 x 0.75"

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0805

Hex Bolt: 5/16-18 x 1.5 Gr. 5
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0896

Hex Washer Head AB Screw: 1/4-14 x 0.625"

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3015

Hex Bolt: 1/4-20 x 0.75"

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0429

Hex Lock Nut: 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3027

Flange Lock Nut
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 731-0851A

Chute Flange Keeper

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 731-1300A

Lower Chute
(Superseded to 731-1300E)

$54.99

$

In Stock, Qty 9

0

10

Cub Cadet 731-1313B

Chute Tilt Cable Guide
(Superseded to 731-1313C)

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 731-1320

Upper Chute
(Superseded to 731-04427B)

$15.99

$

In Stock, only 2 left!

0

12

Cub Cadet 736-0159

5/16 Washer

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0506

Special Washer
(Superseded to 736-0506A)

$

$

Not available

14

Cub Cadet 746-0896

Control Cable: Chute Deflector
(Superseded to 946-0896)

$52.99

$

In Stock, only 1 left!

0

15

Cub Cadet 746-0901

Chute Deflector Cable w/Clip
(Superseded to 946-0901)

$59.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 784-5594

Cable Bracket

Variations

Cub Cadet 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$10.99

$

In Stock, only 1 left!

0

Cub Cadet 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

Cub Cadet 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 784-5604

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

Cub Cadet 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days
