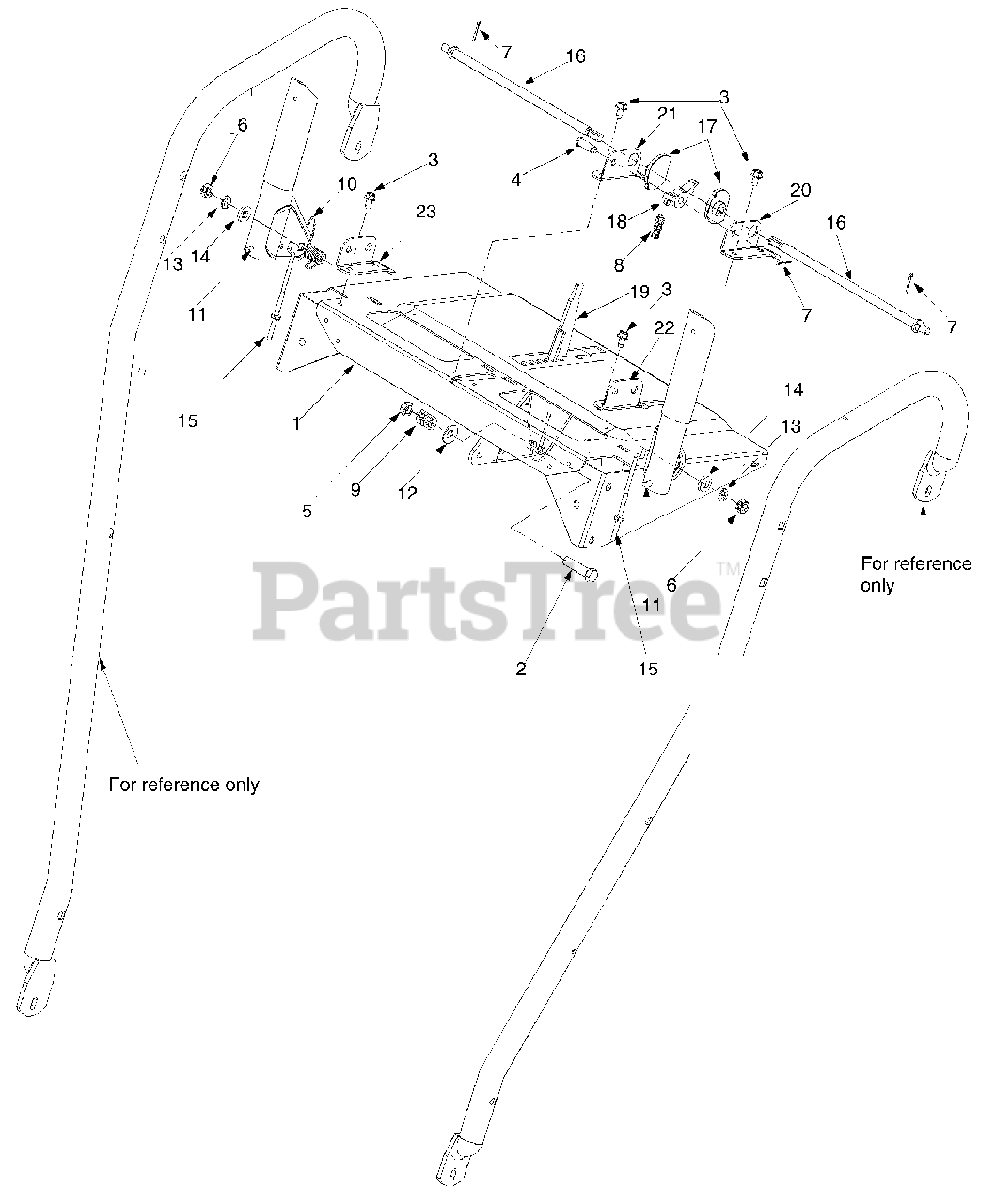

1130 SE (31AE573H101) - Cub Cadet 30" Snow Thrower (1999) Handle Panel Parts Diagram

30" Snow Thrower

Handle Panel Parts Diagram

  • Title

1

Cub Cadet 684-0102

Handle Panel Assembly
(Superseded to 684-0102A)

Variations

Cub Cadet 684-0102-0498

USE 684-0102A-0498 PANEL ASM: - OLD CUB YELLOW (0498)

$153.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0638

USE 684-0102A-0638 PANEL ASM: - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0650

USE 684-0102A-0650 PANEL ASM: - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0662

USE 684-0102A-0662 PANEL ASM: - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0665

USE 684-0102A-0665 PANEL ASM: - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0689

USE 684-0102A-0689 PANEL ASM: - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0716

USE 684-0102A-0716 PANEL ASM: - CUB YELLOW-99 (0716)

$153.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0102-0721

USE 684-0102A-4044 PANEL ASM: - SEARS RED (0721)

$133.99

$

Usually ships in 3-6 days

0

$133.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0459A

Hex Bolt: 3/8-24 x 1.5 Gr.5

$6.99

$

In Stock, Qty 10

0

3

Cub Cadet 710-0599

Hex Washer Head TT Screw: 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-0116

Jam Nut

$4.99

$

In Stock, Qty 7

0

6

Cub Cadet 712-3010

Hex Nut

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 714-0507

Cotter Pin

$4.49

$

In Stock, only 4 left!

0

8

Cub Cadet 732-0145

Compression Spring

$4.49

$

In Stock, only 1 left!

0

9

Cub Cadet 732-0193

Compression Spring

$4.99

$

In Stock, Qty 8

0

10

Cub Cadet 732-0746

Torsion Spring

$4.49

$

In Stock, Qty 13

0

11

Cub Cadet 735-0199A

Rubber Bumper

$7.99

$

In Stock, Qty 16

0

12

Cub Cadet 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0509

Special Washer

$6.99

$

In Stock, only 1 left!

0

15

Cub Cadet 746-0778

Z Fitting: Cable
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

16

Cub Cadet 747-0877

Rod: Cam

$22.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 748-0362

Cam Handle Lock

$7.99

$

In Stock, only 1 left!

0

18

Cub Cadet 748-0363

Pawl: Handle Lock
(Superseded to 948-0363)

$16.99

$

In Stock, only 1 left!

0

19

Cub Cadet 784-5619A

Shift Handle
(Superseded to 753-05395)

Variations

Cub Cadet 784-5619A-0637

USE 753-05395 KIT-SHIFT HANDL - POWDER BLACK (0637)

$

$

Not available

$

$

20

Cub Cadet 784-5679

Handle Support Bracket: 5/8 LH
(Superseded to 784-5679-0637)

Variations

Cub Cadet 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 784-5680

Handle Support Bracket: 5/8 RH
(Superseded to 784-5680-0637)

Variations

Cub Cadet 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 784-5681

Handle Support Bracket: 3/8 LH

Variations

Cub Cadet 784-5681-0637

USE 784-5681 BRACKET-HANDLE S - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 784-5682

Handle Support Bracket: 3/8 RH
(Superseded to 784-5682-0637)

Variations

Cub Cadet 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0
