1130 STE (961910019-02) - Husqvarna 30" Snow Blower (2007-10) CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

30" Snow Blower

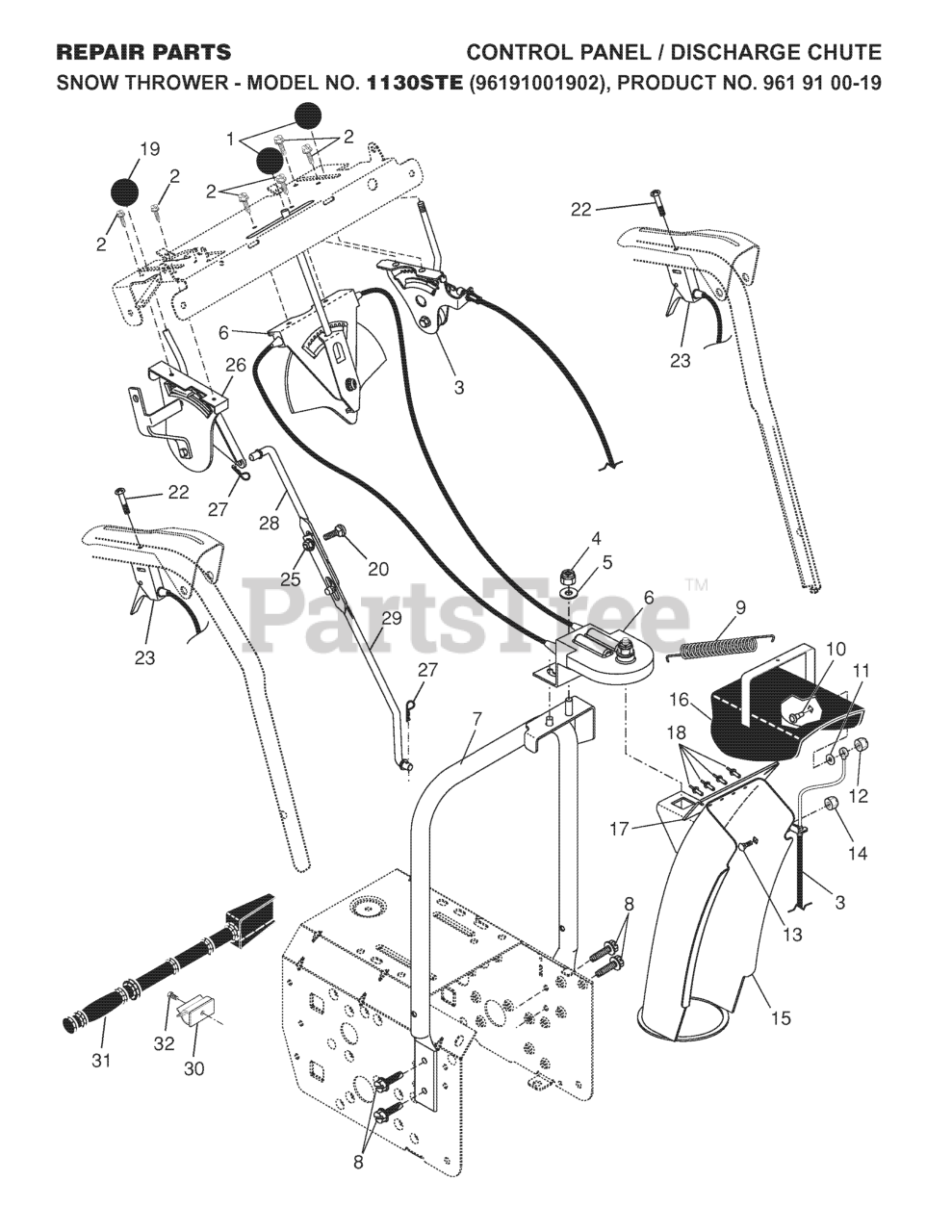

CONTROL PANEL & DISCHARGE CHUTE Parts Diagram

  • Title

12

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 6

0

11

Husqvarna 532179246

WASHER, NYLON FRICTION

$3.49

$

In Stock, only 2 left!

0

14

Husqvarna 532751153

NUT.LOCK.5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, Qty 5

0

31

Husqvarna 532192199

CLEAN OUT TOOL

$20.99

$

In Stock, only 2 left!

0

16

Husqvarna 532184113

DEFLECTOR.WELDMENT.PNT.ORANGE
(Superseded to 588077802)

$113.99

$

In Stock, only 2 left!

0

1

Husqvarna 532414280

KNOB LEVER, BLACK

$7.99

$

In Stock, Qty 6

0

30

Husqvarna 532405400

CLIP.CLEANOUT.TOOL

$3.49

$

In Stock, only 1 left!

0

29

Husqvarna 532187716

ROD, LOWER SPEED CONTROL.SNOW

$

$

Not available

8

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 532428867)

$5.99

$

In Stock, Qty 19

0

6

Husqvarna 532404974

CONTROL ASSEMBLY,CHUTE ROTATER
(Superseded to 532428272)

$159.99

$

In Stock, Qty 6

0

2

Husqvarna 817501010

SCREW #10-24 X 5/8

$

$

Not available

10

Husqvarna 532179829

BOLT, SHOULDER

$4.99

$

In Stock, Qty 10

0

19

Husqvarna 532414281

RED KNOB SHIFTER

$28.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 2 left!

0

18

Husqvarna 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192449

STEERING.CONTROL.SNOW.BLUE
(Superseded to 532421249)

$26.99

$

In Stock, Qty 7

0

5

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 872250505

BOLT
(Superseded to 596136401)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 532155377

NUT.FLANGE.5/16
(Superseded to 596039201)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 532198474

HEAD ASSY SPEED
(Superseded to 532429667)

$

$

Not available

7

Husqvarna 532407643

SUPPORT, PIVOT
(Superseded to 532443617)

$

$

Not available

17

Husqvarna 532179145

SEAL, DEFLECTOR
(Superseded to 532420325)

$6.99

$

In Stock, only 1 left!

0

4

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

32

Husqvarna 532194189

SCREW.HWH.13-16-5.8.BZP

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532198475

CONTROL.CABLE.DEFLECTOR
(Superseded to 587030801)

$68.99

$

In Stock, only 2 left!

0

28

Husqvarna 532180445

ROD, UPPER SPEED CONTROL

$39.99

$

In Stock, only 4 left!

0

9

Husqvarna 532184505

SPRING.DEFLECTOR.REM.CHUTE

$7.99

$

In Stock, only 3 left!

0

22

Husqvarna 874041024

SCREW

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 872270506

BOLT
(Superseded to 872110506)

$7.49

$

In Stock, Qty 8

0

15

Husqvarna 532407650

CHUTE ASSEMBLY
(Superseded to 532444041)

$113.99

$

In Stock, only 2 left!

0
