1130 STE (961910019-04) - Husqvarna 30" Snow Blower (2008-09) AUGER HOUSING & IMPELLER 4 Parts Diagram

30" Snow Blower

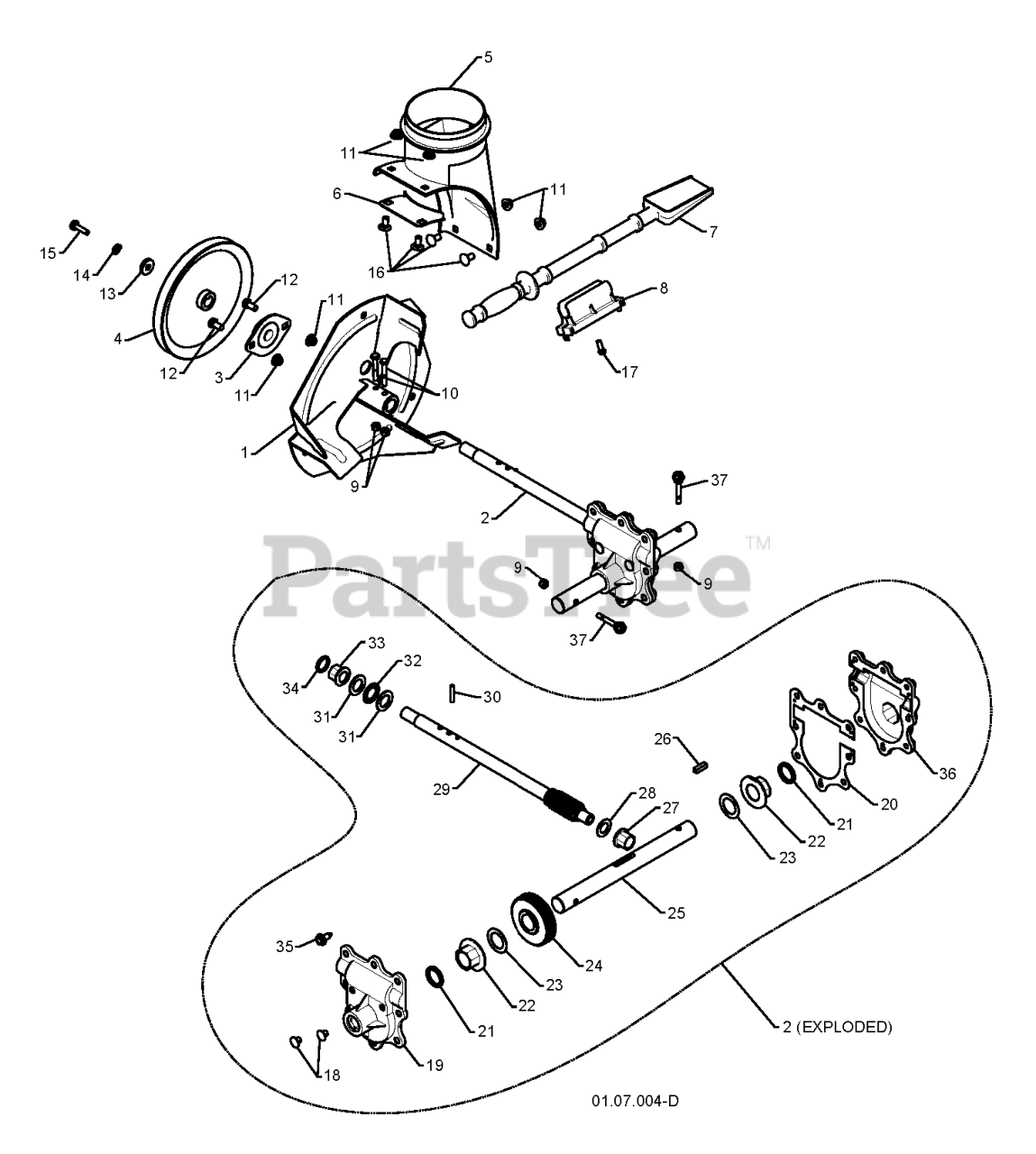

AUGER HOUSING & IMPELLER 4 Parts Diagram

  • Title

3

Husqvarna 532188909

BEARING FLANGE

$24.99

$

In Stock, Qty 6

0

13

Husqvarna 819111507

WASHER, FLAT

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532407758

FLANGE BUSHING-5/8
(Superseded to 532174686)

$

$

Not available

1

Husqvarna 532184105

IMPELLER ASSY
(Superseded to 532175321)

$78.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532184095

BRACKET, CORNER DISCHARGE
(Superseded to 597433002)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 532180355

BOLT.CARRIAGE.5/16-18X

$7.49

$

In Stock, Qty 13

0

34

Husqvarna 532407768

O-RING

$6.49

$

In Stock, only 1 left!

0

32

Husqvarna 532174684

BEARING TRUST 3/4 NTA-1220

$9.99

$

In Stock, only 1 left!

0

33

Husqvarna 532407769

BUSHING, FLANGE 3/4

$6.99

$

In Stock, only 1 left!

0

15

Husqvarna 874940516

CAPSCREW.HX.HD.5/16-18X1.00.NY

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532407764

AUGER SHAFT
(Superseded to 532174657)

$

$

Not available

9

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532407763

WORM GEAR
(Superseded to 597371501)

$242.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532407761

GEARBOX HOUSING-RH
(Superseded to 532174688)

$

$

Not available

26

Husqvarna 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

37

Husqvarna 532192090

BOLT.SHOULDER.SHEAR.1/4-20.
(Superseded to 588077502)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 532407766

GEARBOX GASKET
(Superseded to 532175311)

$9.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532427942

NUTNYLOK.FLRANGE.5/16-18
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

2

Husqvarna 532196710

GEARBOX.ASSEMBLY.AUGER
(Superseded to 597371501)

$242.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532407760

CASE PLUG
(Superseded to 532086447)

$

$

Not available

7

Husqvarna 532192199

CLEAN OUT TOOL

$34.99

$

In Stock, only 2 left!

0

30

Husqvarna 532184205

PIN, ROLL 3/16 X 1-1/8
(Superseded to 532007836)

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532194189

SCREW.HWH.13-16-5.8.BZP

$7.49

$

In Stock, Qty 20+

0

10

Husqvarna 874780426

SCREW.HEX.HD1/4-20X
(Superseded to 596322101)

$3.99

$

In Stock, Qty 13

0

5

Husqvarna 532175322

BASE DISCHARGE CHUTE
(Superseded to 585056901)

$11.99

$

In Stock, Qty 18

0

23

Husqvarna 532174697

WASHER TRUST 1"
(Superseded to 532007396)

$

$

Not available

29

Husqvarna 532407757

SHAFT, IMPELLER

$102.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532407762

FLANGE BUSHING-1"
(Superseded to 532174701)

$

$

Not available

21

Husqvarna 532407770

OIL SEAL
(Superseded to 532174698)

$

$

Not available

12

Husqvarna 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532407767

HEX SCREW-5/16 X 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

14

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 532407765

HOUSING.GEARBOX.LH(SERVICE)

$

$

Not available

28

Husqvarna 532174683

WASHER, THRUST 5/8

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532405400

CLIP.CLEANOUT.TOOL

$6.49

$

In Stock, only 3 left!

0

4

Husqvarna 532427071

PULLEY.IMPELLER.SNOW

$

$

Not available

31

Husqvarna 532174681

WASHER, THRUST 3/4

$14.99

$

Usually ships in 3-10 days

0
