11301 - Troy-Bilt Vacu-Cut 21" Walk-Behind Mower (SN: 0100101 & Above) HANDLEBAR AND CONTROLS Parts Diagram

Vacu-Cut 21" Walk-Behind Mower

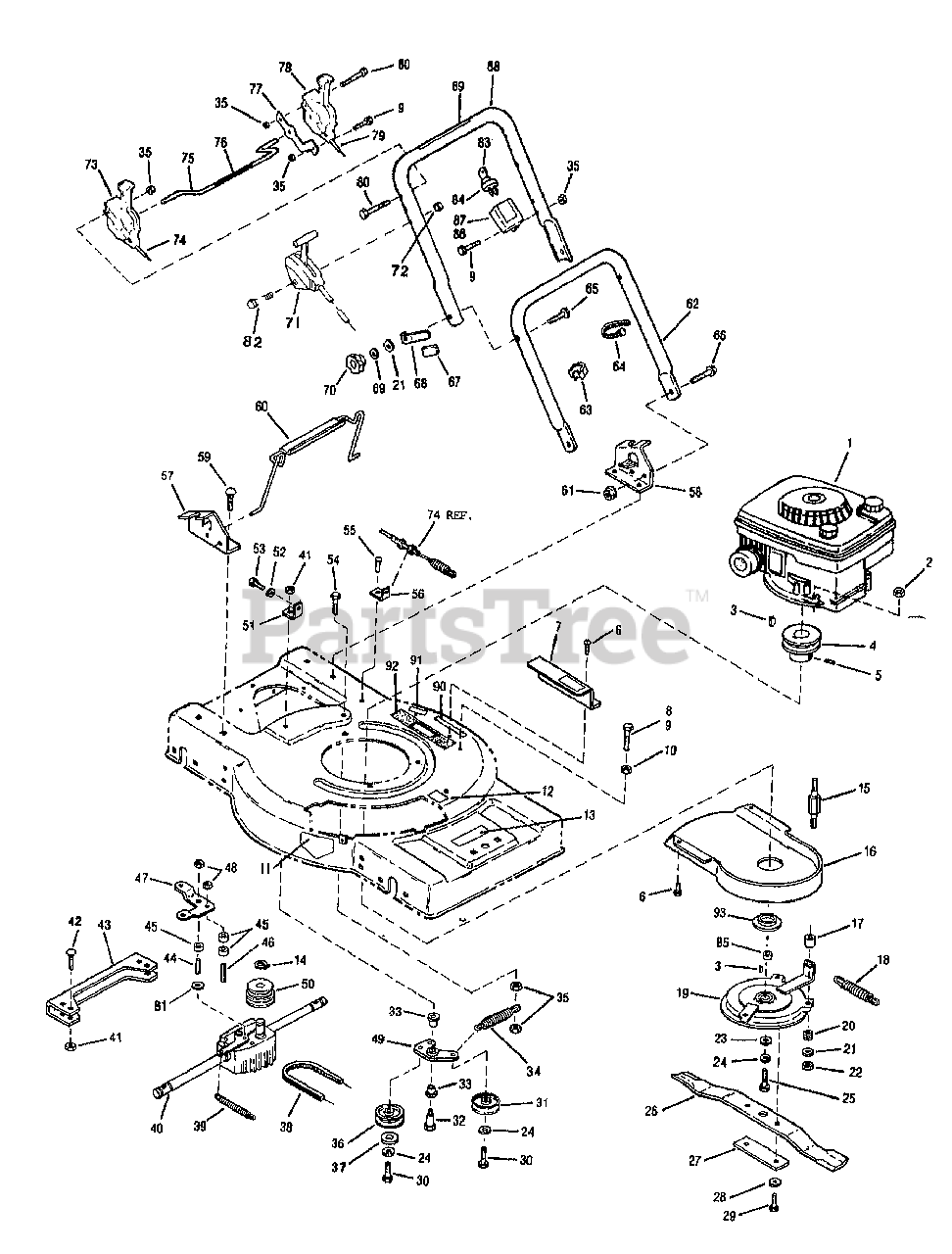

HANDLEBAR AND CONTROLS Parts Diagram

  • Title

1

0

ENGINE, B&S, 4HP MODEL 110707 STANDARD START

$

$

Not available

1

0

ENGINE, B&S, 4HP MODEL 110708 ELECTRIC START

$

$

Not available

2

Troy-Bilt 1186391

NUT-FLANGE 5/16-18
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

3

MTD 1100275

KEY-WOODRUFF .156X.625

$

$

Not available

4

Troy-Bilt 1744579

SHEAVE-ENGINE

$

$

Currently unavailable

5

Troy-Bilt 1738845

SCR-SQHD 1/4-20X1/2 GR5

$

$

Not available

6

Troy-Bilt 1186009

SCR-HW M10-24X.5 STH

$

$

Not available

7

Troy-Bilt 1753130010

COVER-SPRING ELEC. START

$

$

Currently unavailable

7

Troy-Bilt 1750084010

SPRING-CVR STD START

$

$

Currently unavailable

8

Troy-Bilt 1817146

NUT-LK 1/4-20
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 1100806

SCR-HH 1/4-20X1.25
(Superseded to 710-0106)

$3.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 1817146

NUT-LK 1/4-20
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

11

Troy-Bilt T214744

DECAL-BLADE WARNING

$

$

Currently unavailable

12

Troy-Bilt 1747049

DECAL-CAUTION

$

$

Currently unavailable

13

Troy-Bilt 1753770

DECAL-CUTTING HEIGHT

$

$

Currently unavailable

14

Troy-Bilt 1750804

RING, RETAINING

$

$

Currently unavailable

15

Troy-Bilt 1749948

BOLT-SHOULDER-GR. 5

$

$

Currently unavailable

16

Troy-Bilt 1753134

COVER-IDLER

$

$

Currently unavailable

17

Troy-Bilt 1753517

SPACER

$

$

Currently unavailable

18

Troy-Bilt 1750649

SPRING-EXTENSION

$

$

Currently unavailable

19

Troy-Bilt 1749610

CLUTCH

$

$

Currently unavailable

20

Troy-Bilt 1750651

SPRING-COIL

$

$

Currently unavailable

21

MTD 9901

WASHER-.88X312X.08

$

$

Not available

22

Troy-Bilt 1110107

NUT-H/LK 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 1100243

WASHER-LK .375
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 1753047

SCR-SKT HD 3/8-24X1.5 GR8

$

$

Currently unavailable

26

Troy-Bilt 1752039

BLADE-VACUCUT

$

$

Currently unavailable

27

Troy-Bilt 1750757

PLATE-LOCK

$

$

Currently unavailable

28

MTD 1185714

WASHER-LK .312 PYRAMIDAL (CONCAVE)

$

$

Not available

29

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 1100043

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

31

MTD 1727978

IDLER-V

$

$

Not available

32

Troy-Bilt 1743259

BOLT-SHLDR 5/16-18X.58

$

$

Currently unavailable

33

Troy-Bilt 1715716

BUSHING-.5X.21 NYLON FLNG

$3.49

$

In Stock, only 1 left!

0

34

Troy-Bilt 1743299

SPRING-EXTENSION

$

$

Currently unavailable

35

Troy-Bilt 1817146

NUT-LK 1/4-20
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

36

MTD 1752988

IDLER-FLAT

$

$

Not available

37

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 1744706

BELT-V (VACU-CUT) (33.87)

$

$

Not available

39

Troy-Bilt 1743325

SPRING, EXTENSION

$

$

Currently unavailable

40

Troy-Bilt 1743275

TRANSMISSION

$

$

Currently unavailable

41

Troy-Bilt 1186391

NUT-HFLK 5/16-18
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 1186104

BOLT, CARRIAGE, 5/16-18 x 1-3/4" GR5

$

$

Currently unavailable

43

Troy-Bilt 1744498001

CHANNEL-REAR AXLE

$

$

Currently unavailable

44

Troy-Bilt 1753246

STUD-THRD SHORT 10-24X1.00 G5

$

$

Currently unavailable

45

Troy-Bilt 1752852

SPACER

$

$

Currently unavailable

46

Troy-Bilt 1753247

STUD-THRD LONG

$

$

Currently unavailable

47

Troy-Bilt 1753111

TRANSMISSION-BRACKET

$

$

Currently unavailable

48

Troy-Bilt 1186227

NUT-HEX M10-24
(Superseded to 912-0121)

$3.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 1743260

ASSM-ARM IDLER

$

$

Currently unavailable

50

Troy-Bilt 1753324

SHEAVE

$

$

Currently unavailable

51

Troy-Bilt 1750517

BRACKET

$

$

Currently unavailable

52

Troy-Bilt 1100241

WASHER-LK .25
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

53

Troy-Bilt 1111599

SCR-HH 1/4-20X.625 G5
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

54

Troy-Bilt 1100069

SCR-HH 1/4-20X1.0
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 19

0

55

Troy-Bilt 1185878

RIVET-POP 3/16"DIA
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 1748430

BRACKET-CABLE

$

$

Currently unavailable

57

Troy-Bilt 1750145

BRKT-HANDLE RH

$

$

Currently unavailable

58

MTD 1750146

BRKT-HANDLE LH

$

$

Not available

59

Troy-Bilt 1186097

SCR-CARR 5/16-18X.62 G2
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

60

Troy-Bilt 1748602001

SUPPORT-FRONT

$

$

Currently unavailable

61

Troy-Bilt 1186393

NUT-HFLK 3/8-16

$2.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 1749797

HANDLE-LOWER

$

$

Currently unavailable

63

MTD 1729721

CLIP-WIRE

$

$

Not available

64

Troy-Bilt 9202

TIE-RED
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

65

Troy-Bilt 1731025

SCR-CURVED HD 5/16-18X2.0
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

66

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00
(Superseded to 710-04042)

$4.49

$

In Stock, only 4 left!

0

67

Troy-Bilt 1737499

GRIP-VACUCUT

$

$

Not available

68

Troy-Bilt 1753243

BAG-LOCATOR

$

$

Currently unavailable

69

Troy-Bilt 1100242

WASHER-LK .312
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

70

MTD 1763767

KNOB

$

$

Not available

71

Troy-Bilt 1753495

CONTROL, THROTTLE

$

$

Currently unavailable

72

Troy-Bilt 1186229

NUT-HEX 1/4-20
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

73

MTD 1753220

CONTROL-BLADE LEVER

$

$

Not available

74

Troy-Bilt 1753221

CONTROL-BLADE CABLE

$

$

Currently unavailable

75

Troy-Bilt 1753142

RELEASE-LEVER CONTROL

$

$

Currently unavailable

76

Troy-Bilt 1753227

DECAL-DRIVE CONTROL

$

$

Currently unavailable

77

Troy-Bilt 1753056

PLATE-MOUNTING

$

$

Currently unavailable

78

Troy-Bilt 1753218

LEVER-CONTROL DRIVE

$

$

Currently unavailable

79

Troy-Bilt 1753219

CABLE-CONTROL DRIVE

$

$

Currently unavailable

80

MTD 1100089

SCR-HH 1/4-20X2.25

$

$

Not available

81

Troy-Bilt 9922

WASHER-#10

$

$

Currently unavailable

82

Troy-Bilt 1100123

SCR

$

$

Currently unavailable

83

MTD 1753986

KEY-IGNITION (ELECTRIC START)

$

$

Not available

84

Troy-Bilt 1723798

SWITCH,IGNITION (ELECTRIC START)
(Superseded to 1900455P)

$

$

Not available

85

Troy-Bilt 1748426

SPACER-CLUTCH

$

$

Currently unavailable

86

Troy-Bilt 1753728

DECAL-KEY SWITCH

$

$

Currently unavailable

87

Troy-Bilt 1753222

SUPPORT, SWITCH (ELECTRIC START)

$

$

Currently unavailable

88

Troy-Bilt 1752879001

HANDLE-UPPER

$

$

Currently unavailable

89

Troy-Bilt 1749938

DECAL-CAUTION

$

$

Currently unavailable

90

Troy-Bilt 1753769

DECAL-HEIGHT ADJUSTMENT

$

$

Currently unavailable

91

Troy-Bilt 1753767

DECAL-STOP

$

$

Currently unavailable

92

Troy-Bilt 1753131

PAD-RUBBER

$

$

Currently unavailable

93

Troy-Bilt 1752987

SHIELD-DUST

$

$

Currently unavailable
