11305S - MTD Walk-Behind Mower (1985) Rotary Parts Diagram

Walk-Behind Mower

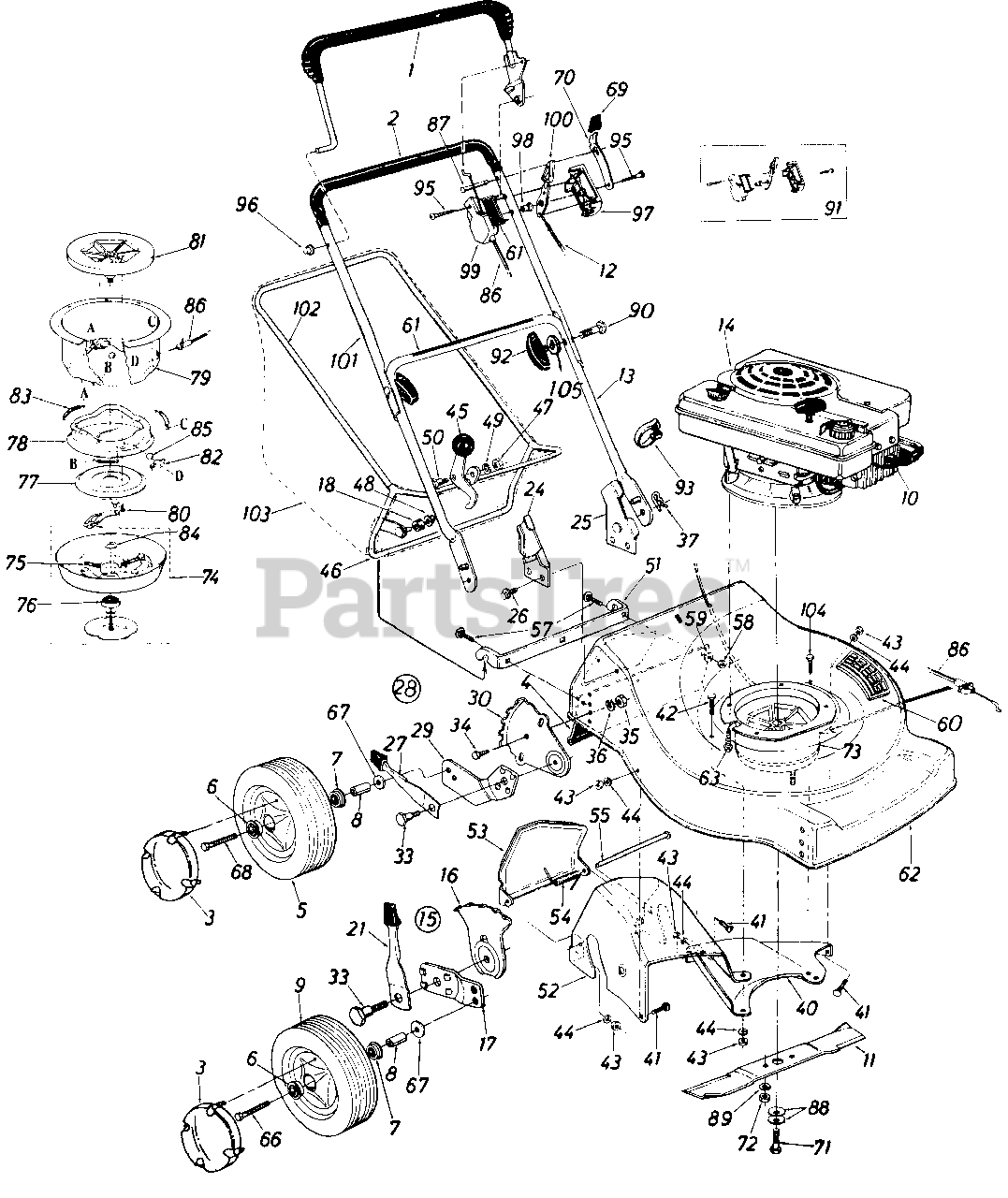

Rotary Parts Diagram

  • Title

1

MTD 731-0609

Control Handle Ass'y. L.H.

$

$

Not available

2

MTD 718-0145

Grip

$

$

Currently unavailable

3

MTD 731-0571

Hub Cap

$

$

Currently unavailable

4

MTD 731-0665

Rear Flap Ass'y.

$

$

Not available

5

MTD 734-0657

Rear Wheel Ass'y. 8 x 1.75

$

$

Not available

6

MTD 741-0267

Ball Bearing 3/8" I.D.

$

$

Not available

7

MTD 741-0484

Ball Bearing 1/2" I.D.
(Superseded to 941-0484)

$6.99

$

In Stock, only 2 left!

0

8

MTD 750-0434

Spacer 3/8" 1 .D.

$6.49

$

Usually ships in 3-6 days

0

9

MTD 734-0657

Front Wheel Ass'y. 8 x 1.75

$

$

Not available

10

MTD 735-0639

Spark Plug Boot

$

$

Not available

11

MTD 742-0220

20" Blade

$

$

Not available

12

MTD 746-0417

Throttle Wire 43"
(Superseded to 946-1115)

$26.99

$

Usually ships in 3-6 days

0

13

MTD 749-0505

Lower Handle
(Superseded to 749-0907B)

$46.99

$

In Stock, Qty 6

0

14

3.5 H.P. Engine Tec. TVS 90-43261

$

$

Not available

15

MTD 14578

Height Adj. Ass'y. R.H.
(Superseded to 753-06761)

Note: (Front)

$60.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. L.H.
(Superseded to 753-06761)

Note: (Front)

$60.99

$

In Stock, Qty 7

0

16

MTD 15261

Front Index Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

17

MTD 15262

Front Pivot Bar
(Superseded to 15262B)

$13.99

$

Usually ships in 3-6 days

0

18

MTD 731-0430

Plastic Roller

$

$

Not available

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 7

0

MTD 736-0219

Bell-Wash. .400" I.D. x 1.13"
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

21

MTD 14832

Spring Lever w/Knob
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

MTD 710-0209

Hex Sems Bolt 3/8-16 x .62"

$

$

Not available

24

MTD 12296

Handle Brk't. Ass'y. R.H.
(Superseded to 12296B-0637)

$

$

Not available

25

MTD 12297

Handle Brk't. Ass'y. L.H.

$

$

Not available

26

MTD 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4" x .62" Lg.
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

27

MTD 732-0417

Spring Lever w/Knob
(Superseded to 732-0417A)

$12.99

$

Usually ships in 3-6 days

0

28

MTD 16106

Height Adj. Assy. R.H.

Note: (Rear)

$

$

Not available

MTD 16107

Height Adj. Ass'y. L.H.

Note: (Rear)

$

$

Not available

29

MTD 14765

Rear Pivot Bar R.H.

$19.99

$

Usually ships in 3-6 days

0

MTD 14766

Rear Pivot Bar L.H.

$19.99

$

Usually ships in 3-6 days

0

30

MTD 14764

Rear Index Plate
(Superseded to 14764C)

$7.99

$

Usually ships in 3-6 days

0

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

MTD 736-0255

Bell-Wash. .515" I.D. x 1.14"

$4.49

$

In Stock, only 3 left!

0

33

MTD 738-0507

Shld. Bolt .500" Dia. x .375" Lg.
(Superseded to 938-0507B)

$4.49

$

In Stock, Qty 20+

0

34

MTD 710-0892

Hex Wash. Hd. Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

35

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

36

MTD 736-0169

L-Wash. 3/8 I.D.*

$3.49

$

In Stock, Qty 20+

0

37

MTD 714-0104

Hairpin Cotter

$3.99

$

In Stock, Qty 20+

0

40

MTD 13405

Rear Chute Baffle L.H.

$

$

Not available

41

MTD 710-0167

Carr. Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

42

MTD 710-0206

Hex Bolt 1/4-20 x .88" Lg.*

$4.49

$

Usually ships in 3-6 days

0

43

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

44

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

45

MTD 13435

Cam Lever Ass'y.

$

$

Not available

46

MTD 13924

Grass Catcher Lower Frame Ass 'y.

$

$

Not available

47

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

48

MTD 726-0100

Push Cap 3/8 Rod

$3.99

$

In Stock, Qty 7

0

49

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

50

MTD 738-0140

Shld. Bolt .437" Dia. x .180

$5.49

$

In Stock, Qty 17

0

51

MTD 14012

Hitch Brk't.

$

$

Not available

52

MTD 14235

Rear Chute Ass'y.

$

$

Not available

53

MTD 13407

Chute Door

$

$

Not available

54

MTD 732-0346

Torsion Spring

$

$

Not available

55

MTD 738-0386

Hinge Pin

$

$

Not available

57

MTD 710-0703

Carr. Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

58

MTD 712-0271

Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

59

MTD 736-0211

Fl-Wash. .285" I.D. x 1.25"

$6.49

$

In Stock, Qty 8

0

60

MTD 731-0756

Foot Pad

$

$

Currently unavailable

61

MTD 777-5196

Control Labels

$

$

Currently unavailable

62

MTD 16108

20" Deck Ass'y.

Variations

MTD 16108-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16108-0665

No Longer Available DECK ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

63

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.0" Lg.
(Superseded to 710-0654A)

$3.99

$

In Stock, only 4 left!

0

66

MTD 710-0347

Hex Scr. 3/8-16 x 1.75" Lg.

$4.99

$

In Stock, Qty 20+

0

67

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

68

MTD 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.

$4.99

$

In Stock, Qty 20+

0

69

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

70

MTD 732-0401

Lockout Spring

$

$

Not available

71

MTD 710-0818

Hex Cl-Scr. 3/8-24 x 2.0" Lg.

$6.49

$

In Stock, only 1 left!

0

72

MTD 712-0328

Hex Nut 3/8-24 Thd.
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 20+

0

73

MTD 717-0480

Blade Brake/Clutch Ass'y. Comp.

$

$

Currently unavailable

74

MTD 14300

Clutch Blade Housing Ass'y.

$

$

Not available

75

MTD 732-0396

Compression Spring

$

$

Not available

76

MTD 741-0124

Ball Bearing .669" I.D.
(Superseded to 941-0600)

$23.99

$

In Stock, Qty 20+

0

77

MTD 14304

Clutching Cone

$

$

Not available

78

MTD 14305

Brake Cup Cone

$

$

Currently unavailable

79

MTD 14306

Clutch Housing

$

$

Currently unavailable

80

MTD 710-0875

Hex Wash. TT-Tap Cl-Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

81

MTD 719-0256

Fan Adapter

$

$

Not available

82

MTD 731-0520

Ball Block

$

$

Not available

83

MTD 732-0397

Extension Spring

$

$

Not available

84

MTD 736-0333

Fl-Wash. .690" I.D. x 1.06"

$

$

Not available

85

MTD 741-0326

Steel Ball .500" Dia.

$

$

Not available

86

MTD 746-0400

Clutch Cable 46"

$

$

Not available

87

MTD 731-0607

Lock Pin

$

$

Not available

88

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

89

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

90

MTD 710-0405

Carr. Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

91

MTD 753-0361

Kit Control Housing Comp.

$

$

Not available

92

MTD 09966

Hand Knob
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

93

MTD 726-0192

Cable Tie

$

$

Not available

95

MTD 710-0796

Truss Mach. Hi-B Tap Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, Qty 6

0

96

MTD 726-0135

Push Cap 5/16" Rod

$6.49

$

In Stock, only 4 left!

0

97

MTD 731-0523

Control Panel Half

$

$

Not available

98

MTD 731-0524

Conrol Disc Pin

$

$

Not available

99

MTD 731-0526

Clutch Panel Half

$

$

Not available

100

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$8.99

$

In Stock, Qty 14

0

101

MTD 749-0436

Upper Handle
(Superseded to 749-0438D-0637)

$

$

Not available

102

MTD 749-0512

Grass Catcher Upper Frame

$

$

Not available

103

MTD 764-0191

Grass Bag

$

$

Not available

104

MTD 710-0642

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

105

MTD 736-0242

Bell-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

MTD 19019

Grass Catcher Comp.

$

$

Currently unavailable
