11362 - Troy-Bilt Tuff-Cut II 22" Walk-Behind Mower, 5hp MAIN ASSEMBLY Parts Diagram

Tuff-Cut II 22" Walk-Behind Mower, 5hp

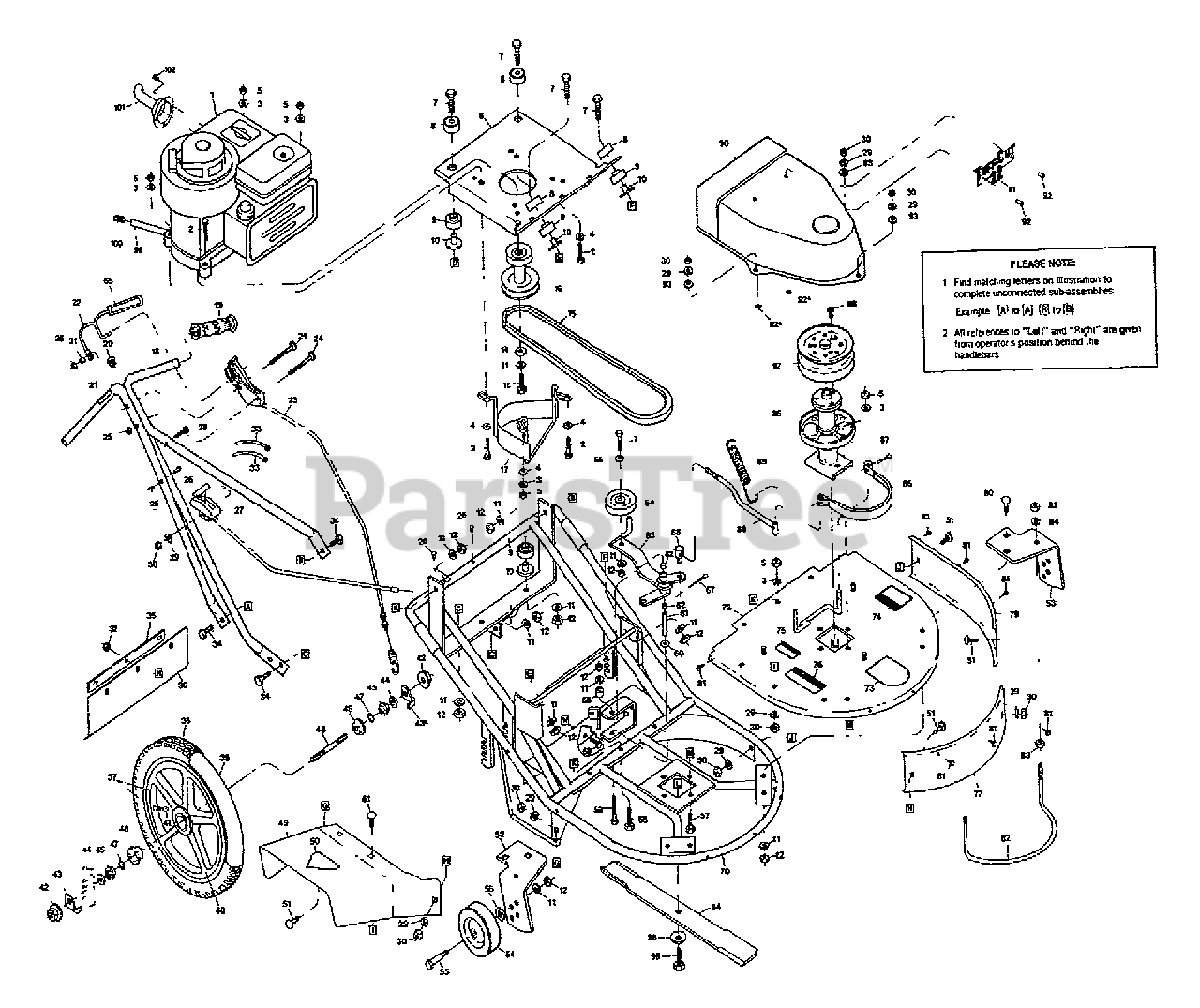

MAIN ASSEMBLY Parts Diagram

  • Title

1

ENGINE, 5HP

$

$

Not available

2

Troy-Bilt GW-90009

SCR-HH 5/16-18X1.75
(Superseded to 710-3180)

$4.99

$

In Stock, Qty 20+

0

3

Troy-Bilt GW-9912

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

4

MTD GW-9901

WASHER-.88X312X.08 ZP

$

$

Not available

5

Troy-Bilt GW-9801

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

MTD GW-80041

BASE-ENGINE PNT

$

$

Not available

7

Troy-Bilt GW-90013

SCR-HH 3/8-16X2.0 G5 ZP
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

8

MTD GW-T200234

REBOUND MOUNT-24"

$

$

Not available

9

MTD GW-T200236

LOAD CARRYING MOUNT-24"

$

$

Not available

10

Troy-Bilt GW-T200237

TUB-SPACER 24"

$

$

Currently unavailable

11

Troy-Bilt GW-9913

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

12

Troy-Bilt GW-9802

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt GW-90028

SCR-HH 3/8-24X1.5 G5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

14

Troy-Bilt GW-9903

WASHER-1.0X.438X.104 ZP
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

15

MTD GW-T236321

BLADE-V BELT

$

$

Not available

16

Troy-Bilt GW-T239670

PULLEY-ENGINE

$

$

Currently unavailable

17

MTD GW-80007

GUIDE-BELT PNT

$

$

Not available

18

MTD GW-80092

ASSM-HANDLEBAR 22" PUSH INCL. 19 AND 21

$

$

Not available

19

Troy-Bilt GW-T239797

GRIP-HANDLEBAR

$

$

Not available

20

MTD GW-97008

PLUG-METAL CAP

$

$

Not available

21

Troy-Bilt GW-T240263

DECAL-STARTING INST

$

$

Currently unavailable

22

Troy-Bilt GW-80032

ASSM-BLADE CONTROL HANDLE INCL. 65

$

$

Currently unavailable

23

Troy-Bilt GW-T239738

CABLE-BLADE DRIVE (CABLE AND LATCH)
(Superseded to GW-T239738P)

$144.99

$

Usually ships in 3-6 days

0

24

MTD GW-90000

SCR-PHP M10-24X4.0 ZP

$

$

Not available

25

MTD GW-92001

NUT-HEX LOCK #10-24 PL

$

$

Not available

26

MTD GW-T240175

PLUG-HOLE

$

$

Not available

27

Troy-Bilt GW-T239735

SPEED CONTROL-ENGINE

$

$

Currently unavailable

28

MTD GW-90006

SCR 1/4-20X1.5 PL CSHH

$

$

Not available

29

Troy-Bilt GW-9910

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

30

Troy-Bilt GW-9800

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

31

MTD GW-T242369

SPACER

$

$

Not available

32

Troy-Bilt GW-9808

NUT-H/LK 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 19

0

33

Troy-Bilt GW-9202

TIE-RED
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

34

Troy-Bilt GW-90011

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

35

MTD GW-80043

BRKT-PROT TRAILER PNT

$

$

Not available

36

MTD GW-T242207

TRAILER-MOWER

$

$

Not available

37

MTD GW-T242397

ASSM-TIRE & WHEEL {38,39,40,41,42,44,45,46, 47, 48}

$

$

Not available

38

MTD GW-T242398

TIRE-16 X 2.125

$

$

Not available

39

MTD GW-T239808

TUBE-16"

$

$

Not available

40

MTD GW-T242459

ASSM-16" RIM {42,44,45,46,47,48}

$

$

Not available

41

MTD GW-T3823

CAP-VALVE

$

$

Not available

42

MTD GW-92003

NUT-HF/LK 3/8-24 WHIZ

$

$

Not available

43

MTD GW-T242211

TAB-WHEEL LOCK RH

$

$

Not available

43A

Troy-Bilt GW-T242212

TAB-WHEEL LOCK LH

$

$

Currently unavailable

44

MTD GW-92004

NUT-LOCK 3/8-24 PL

$

$

Not available

45

Troy-Bilt GW-92005

NUT-ACORN 3/8-24 ZP

$

$

Currently unavailable

46

Troy-Bilt GW-T239800

CUP-WHEEL

$

$

Currently unavailable

47

Troy-Bilt GW-T239803

BEARING-WHEEL

$

$

Currently unavailable

48

MTD GW-T239802

AXLE-WHEEL

$

$

Not available

49

MTD GW-80048

CHUTE-DISCHARGE W/DECAL

$

$

Not available

50

MTD GW-T214744

DECAL-BLADE WARNING

$

$

Not available

51

MTD GW-90014

SCR-CARR 1/4-20X.375

$

$

Not available

52

Troy-Bilt GW-80046

HANGER-RT WHL PNT

$

$

Currently unavailable

53

MTD GW-80047

HANGER-LT WHL PNT

$

$

Not available

54

Troy-Bilt GW-T239686

ASSM-TIRE&WHEEL 6X1.50
(Superseded to GW-80163)

$31.99

$

In Stock, only 1 left!

0

55

Troy-Bilt GW-90023

SCR-SHLDR 3/8-16X1.406

$

$

Currently unavailable

56

Troy-Bilt GW-9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

57

Troy-Bilt GW-90008

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 17

0

56

Troy-Bilt GW-90030

SCREW
(Superseded to 710-0206)

$4.49

$

Usually ships in 3-6 days

0

59

Troy-Bilt GW-90018

SCR-HH 3/8-16X4.5 G5
(Superseded to 710-0693)

$13.99

$

In Stock, only 2 left!

0

60

MTD GW-T13235

SHIM-WASHER

$

$

Not available

61

MTD GW-T239706

TUBE-PIVOT

$

$

Not available

62

MTD GW-T27503

BEARING-SLEEVE

$

$

Not available

63

MTD GW-80063

ARM-IDLER W/BUSHINGS (INCL. 2 BEARINGS REF. NO. 62)

$

$

Not available

64

MTD GW-T230178

PULLEY-IDLER

$

$

Not available

65

Troy-Bilt GW-T242413

STICKER-BLADE BAIL

$

$

Currently unavailable

66

MTD GW-T213158

TRUNNION

$

$

Not available

67

Troy-Bilt GW-9317

PIN-COTTER .094X1.0

$3.49

$

Usually ships in 3-6 days

0

68

MTD GW-T241439

SPACER-.625X.387X1.0 ZP

$

$

Not available

69

Troy-Bilt GW-90007

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

70

Troy-Bilt GW-80052

ASSY FRAME PAINTED

$

$

Currently unavailable

71

REF. NO. NOT USED

$

$

Not available

72

Troy-Bilt GW-80091

ASSM-DECK TOP 22" {73,74,75,76}

$

$

Currently unavailable

73

MTD GW-80075

DECAL-TUFFCUT LOGO

$

$

Not available

74

MTD GW-80076

DECAL-WARNING PROCEDURES

$

$

Not available

75

MTD GW-T240226

DECAL-CAUTION BELT COVER

$

$

Not available

76

MTD GW-80073

DECAL-DANGER GUARD

$

$

Not available

77

Troy-Bilt GW-80068

WRAP-FRONT 22" PNT

$

$

Currently unavailable

78

REF. NO. NOT USED

$

$

Not available

79

Troy-Bilt GW-80067

WRAP-LH PNT

$

$

Currently unavailable

80

Troy-Bilt GW-90015

SCR-CARR 3/8-16X1.00
(Superseded to 710-3168)

$3.99

$

In Stock, Qty 20+

0

81

MTD GW-90024

SCR-HW M10-16X.75 SELT DR

$

$

Not available

82

MTD GW-80060

BUMPER-22" PNT

$

$

Not available

83

Troy-Bilt GW-9803

NUT-HEX JAM 1/2-13
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

84

Troy-Bilt GW-9914

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

85

MTD GW-80137

KIT-SPINDLE TUFFCUT I&II (INCL. PULLEY REF NO. 97 AND SPINDLE MOUNTING HARDWARE)

$

$

Not available

86

MTD GW-T242200

BRAKE BAND & LINING

$

$

Not available

87

Troy-Bilt GW-97010

PIN-COTTER 1/8X3/4

$

$

Currently unavailable

88

MTD GW-T239708

ROD-BRAKE ENGAGEMENT

$

$

Not available

89

MTD GW-T239750

SPRING-SPINDLE BRAKE

$

$

Not available

90

Troy-Bilt GW-T239684

COVER-BELT 22"PUSH MOWER

$

$

Currently unavailable

91

MTD GW-T242176

PLATE-NAME 22"

$

$

Not available

92

MTD GW-97000

RIVET-POPOP

$

$

Not available

92A

MTD GW-94009

WASHER-RIVETING

$

$

Not available

93

Troy-Bilt GW-9900

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

94

Troy-Bilt GW-T239632

BLADE-22" TUFFCUT NLA

$

$

Currently unavailable

95

Troy-Bilt GW-90025

SCR-HH 3/8-24 X 1.5" G8

$

$

Currently unavailable

96

Troy-Bilt GW-T241589

WASHER-BELLEVILLE 3/8

$

$

Currently unavailable

97

MTD GW-T244976

PULLEY-SPINDLE 3/4 ID (INCL. 3 SCREWS REF NO. 98)

$

$

Not available

98

Troy-Bilt GW-90022

SCR-SELFTAP 5/16-18X5/8
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

99

MTD GW-T236347

PIPE-OIL DRAIN

$

$

Not available

100

Troy-Bilt GW-9726

PLUG-PIPE 1/4 NPT
(Superseded to 1105620)

$3.99

$

In Stock, Qty 5

0

101

MTD GW-80006

PIPE-EXHAUST EXT PNT

$

$

Not available

102

Troy-Bilt GW-90002

SCR-SELF TAP

$

$

Currently unavailable
