11381 - Troy-Bilt Mini-Tiller (SN: 5000 & Above) MAIN ASSEMBLY Parts Diagram

Mini-Tiller

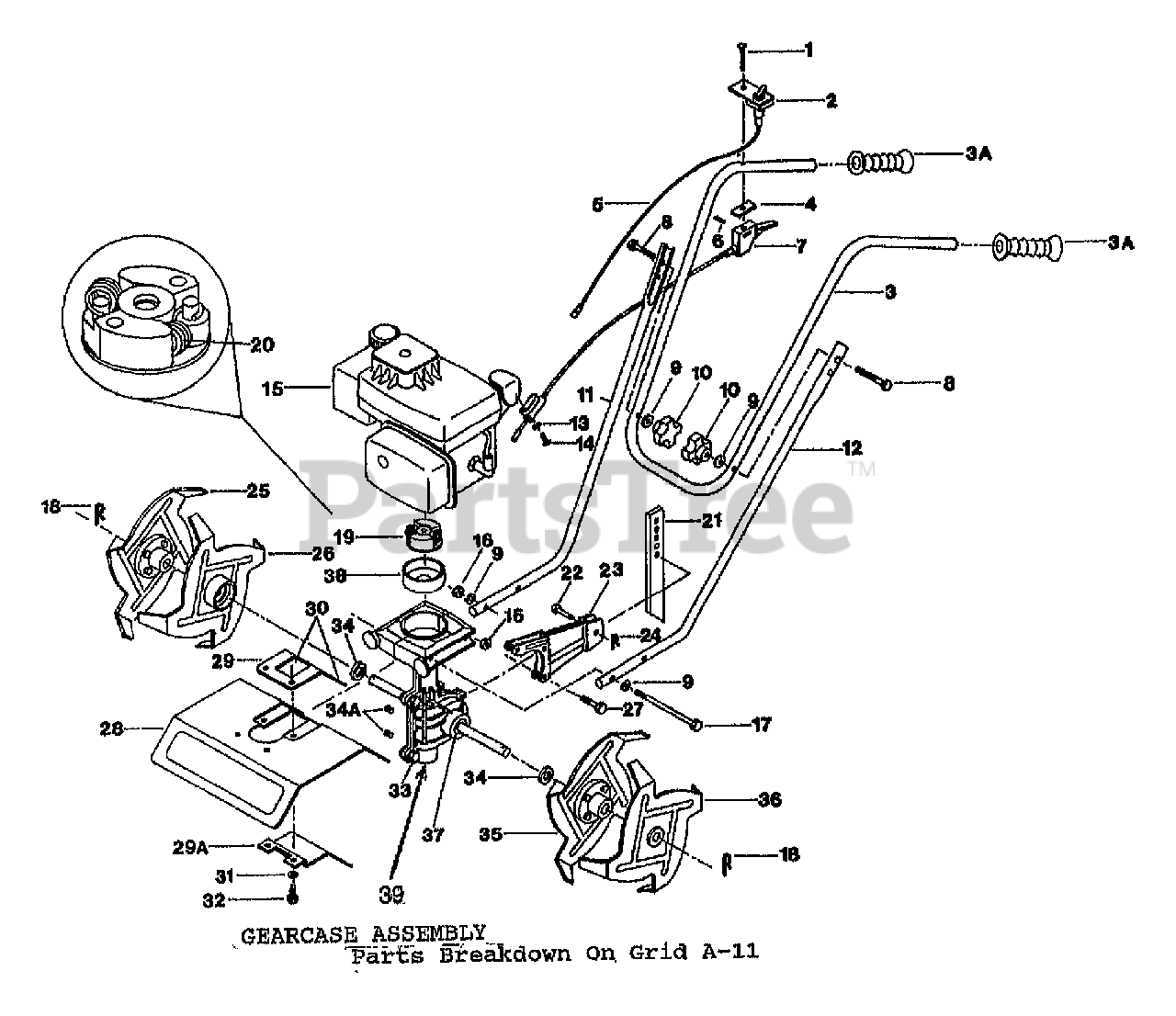

MAIN ASSEMBLY Parts Diagram

  • Title

1

MTD 1983716

SCR-PH HD M10-24X1.375

$

$

Not available

2

Troy-Bilt 1983718

SWITCH-IGN. 96506

$

$

Not available

Troy-Bilt 1981012

BRKT-SWITCH
(Superseded to 1981012001)

$

$

Not available

3

MTD 1981046

ASSM-UPR HANDLEBAR

$

$

Not available

3A

MTD 1983728

GRIP-HANDLEBAR 97030

$

$

Not available

4

MTD 1983649

PAD-ISOLATOR TRIGGER

$

$

Not available

5

MTD 1766998

HARNESS-WIRE

$

$

Not available

6

Troy-Bilt 1185490

NUT-WELD #10-24
(Superseded to 712-0127)

$3.49

$

In Stock, Qty 13

0

7

MTD 1983646

ASSM-TRIGGER & CABLE

$

$

Not available

8

Troy-Bilt 1731025

SCR-CURVED HD 5/16-18X2.0
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1983650

WASHER-BOW 1.0X.328X.059

$

$

Currently unavailable

10

MTD 1763767

KNOB

$

$

Not available

11

MTD 1984509001

H/BAR-LWR RIGHT PNT

$

$

Not available

12

MTD 1984510001

H/BAR-LWR LEFT PNT

$

$

Not available

13

MTD 1983714

WASHER-FLAT SH

$

$

Not available

14

MTD 1983661

SCR-HH M8-32X1.0

$

$

Not available

15

0

ENGINE, TECUMSEH TC-200-2026C

$

$

Not available

16

Troy-Bilt 1817146

LOCKNUT, 1/4-20
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

17

MTD 1983663

BOLT, HEX HEAD, 14-20 X 41/2

$

$

Not available

18

Troy-Bilt 1185590

HAIRPIN COTTER

$4.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 1983630

CLUTCH ROTOR

$

$

Currently unavailable

20

Troy-Bilt H213773

SPRING, CLUTCH

$

$

Currently unavailable

21

MTD 1981014001

DRAG STAKE

$

$

Not available

22

MTD 1983723

PIN-CLEVIS, 5/16 X 7/8

$

$

Not available

23

MTD 1981010001

DRAG STAKE BRACKET

$

$

Not available

24

Troy-Bilt 1703011

HAIRPIN COTTER
(Superseded to 914-0145)

$4.49

$

In Stock, Qty 20+

0

25

MTD 1984430

TINE, OUTER RIGHT HAND SIDE

$

$

Not available

26

Troy-Bilt 1984429

TINE, INNER RIGHT HAND SIDE

$

$

Currently unavailable

27

MTD 1983658

BOLT, 1/4-20 X 1 1/8" (ATTACHES DRAG STAKE TO TRANSMISSION)

$

$

Not available

28

MTD 1985791

TINE COVER W/DECALS

$

$

Not available

29

MTD 1981022010

PLATE, REAR, TNE COVER

$

$

Not available

29A

MTD 1981018010

ROCK SHIELD

$

$

Not available

30

MTD 1983662

SCREW, #10-32 X 1/2", SELF TAPPING, (FOR REAR TINE COVER PLATE)

$

$

Not available

31

Troy-Bilt 1100241

LOCKWASHER, 1/4"
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

32

Troy-Bilt 90021

BOLT, 1/4-20 X 2"

$

$

Currently unavailable

33

Troy-Bilt 90030

BOLT, 1/4-20 X 7/8

$

$

Currently unavailable

34

Troy-Bilt 1904183

DUST COVER SETSCREW

$

$

Not available

34A

0

AIR VENT SCREW/FILL HOLE SCREW

$

$

Not available

35

Troy-Bilt 1984427

TINE, INNER LEFT HAND SIDE

$

$

Currently unavailable

36

Troy-Bilt 1984428

TINE, OUTER LEFT HAND SIDE

$

$

Currently unavailable

37

Troy-Bilt 1983713

WASHER, FELT

$4.99

$

Usually ships in 3-6 days

0

38

MTD 1984514

CLUTCH DRUM & HUB

$

$

Not available

39

Troy-Bilt 1983631

TRANSMISSION ASSEMBLY

$

$

Currently unavailable

MTD 11073

DECAL-LOGO HHT

$

$

Not available

MTD 1983094

DECAL-CAUTION

$

$

Not available

MTD 1983095

DECAL-WARNING

$

$

Not available

MTD 1983096

DECAL-THROTTLE HHT

$

$

Not available

MTD 1983097

DECAL-ENGINE ON/OFF HHT

$

$

Not available

Troy-Bilt 1983648

SPACER-TINE 1.0X.8X1.31LG

$5.99

$

Usually ships in 3-6 days

0

MTD 1983647

CUP-MEASURING

$

$

Not available

Troy-Bilt 1982393

KIT-TINE REPLACE 85059

$

$

Currently unavailable

Troy-Bilt 1983631

ASSM-TRANS 85029

$

$

Currently unavailable

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

MTD 1981053

KIT-TINE SPACER

$

$

Not available
