11385 - Troy-Bilt Sprayer II, 25 Gallon (SN: W001384 - W001486) PUMP, HOSE ASSEMBLY Parts Diagram

Sprayer II, 25 Gallon

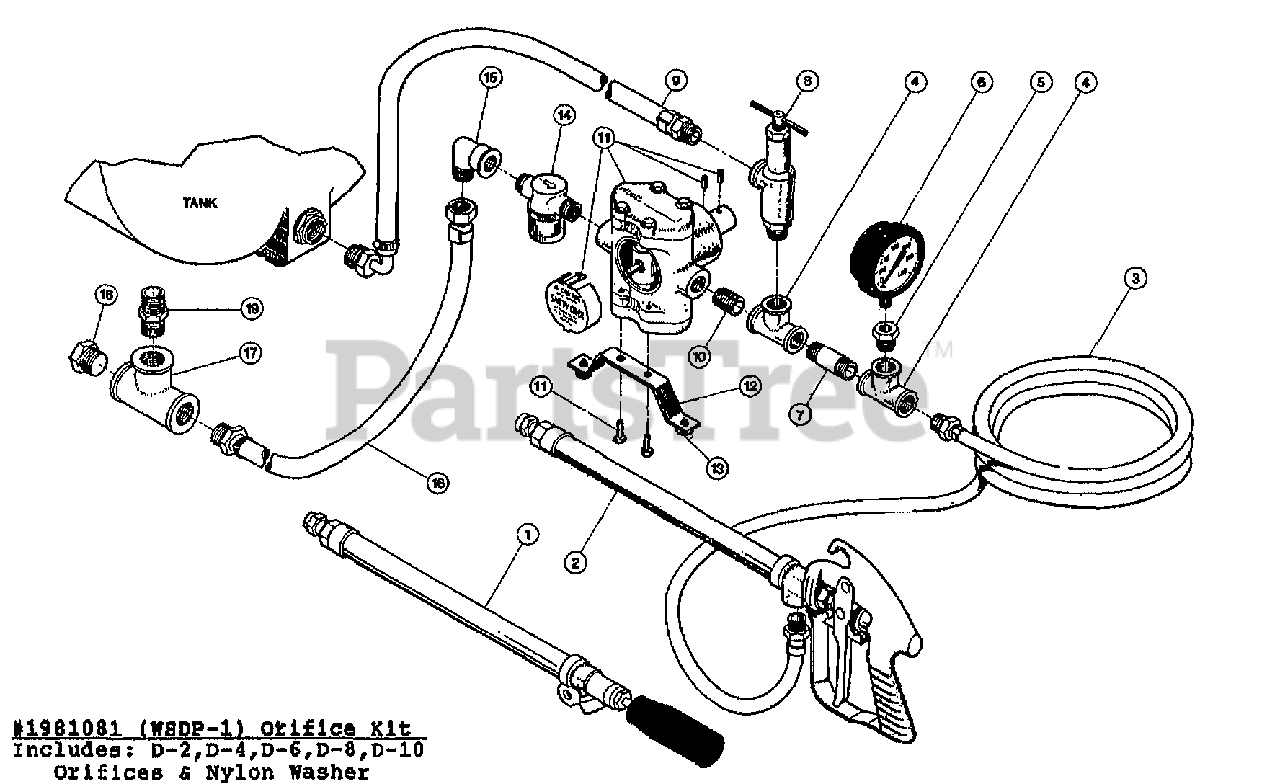

PUMP, HOSE ASSEMBLY Parts Diagram

  • Title

Troy-Bilt 1981081

DISCS-SPRAY PKG WSDP1

$

$

Currently unavailable

1

Troy-Bilt W143BR1/2

GUN-TWIST SPRAY W143BR1/2

$

$

Currently unavailable

2

Troy-Bilt W43H6BR

GRIP-PISTOL W43H6BR SPRAY GUN

$

$

Currently unavailable

3

Troy-Bilt W207525

HOSE-3/8 X 25' W2075660

$

$

Currently unavailable

4

Troy-Bilt W20983014

TEE-1/2" PIPE W20983014

$

$

Currently unavailable

5

Troy-Bilt W209810242

PIPE-BUSHING REDUCING

$

$

Currently unavailable

6

Troy-Bilt WLFS220

GAUGE-GLYCERINE PRESS WLFS220

$

$

Currently unavailable

7

Troy-Bilt W209810142

NIPPLE-PIPE 50X2 GALVANIZED

$

$

Currently unavailable

8

Troy-Bilt W681512300G

VALVE PRESS.

$

$

Currently unavailable

9

Troy-Bilt W2075603

HOSE-RETURN LINE W2075603

$

$

Currently unavailable

10

Troy-Bilt W20981014

NIPPLE-1/2" CLOSE W20981014

$

$

Currently unavailable

11

Troy-Bilt W5330CHK

PUMP-TWIN PISTON

$

$

Currently unavailable

12

Troy-Bilt W28200028

ARM-TRQ 25G SPRAY W28200028

$

$

Currently unavailable

13

Troy-Bilt W14000003

BUMPER-RUBBER TORQUE ARM

$

$

Currently unavailable

14

Troy-Bilt W33500079

STRAINER W33500079

$

$

Currently unavailable

15

Troy-Bilt WSE12

ELBOW-1/2" STREET WSE12

$

$

Currently unavailable

16

Troy-Bilt W2075606

HOSE-17" SUCTION W2075661

$

$

Currently unavailable

17

Troy-Bilt WTT34

TEE-3/4 PIPE NYL WTT34

$

$

Currently unavailable

18

Troy-Bilt WF3400

PLUG-3/4" PLASTIC WF3400

$

$

Currently unavailable

19

Troy-Bilt WM3400

NIPPLE-3/4 CLOSE WM1400

$

$

Currently unavailable
