113908-2999-02 - Briggs & Stratton Vertical Engine Cyl,Oil Fill,Piston,SumpBase Parts Diagram

Vertical Engine

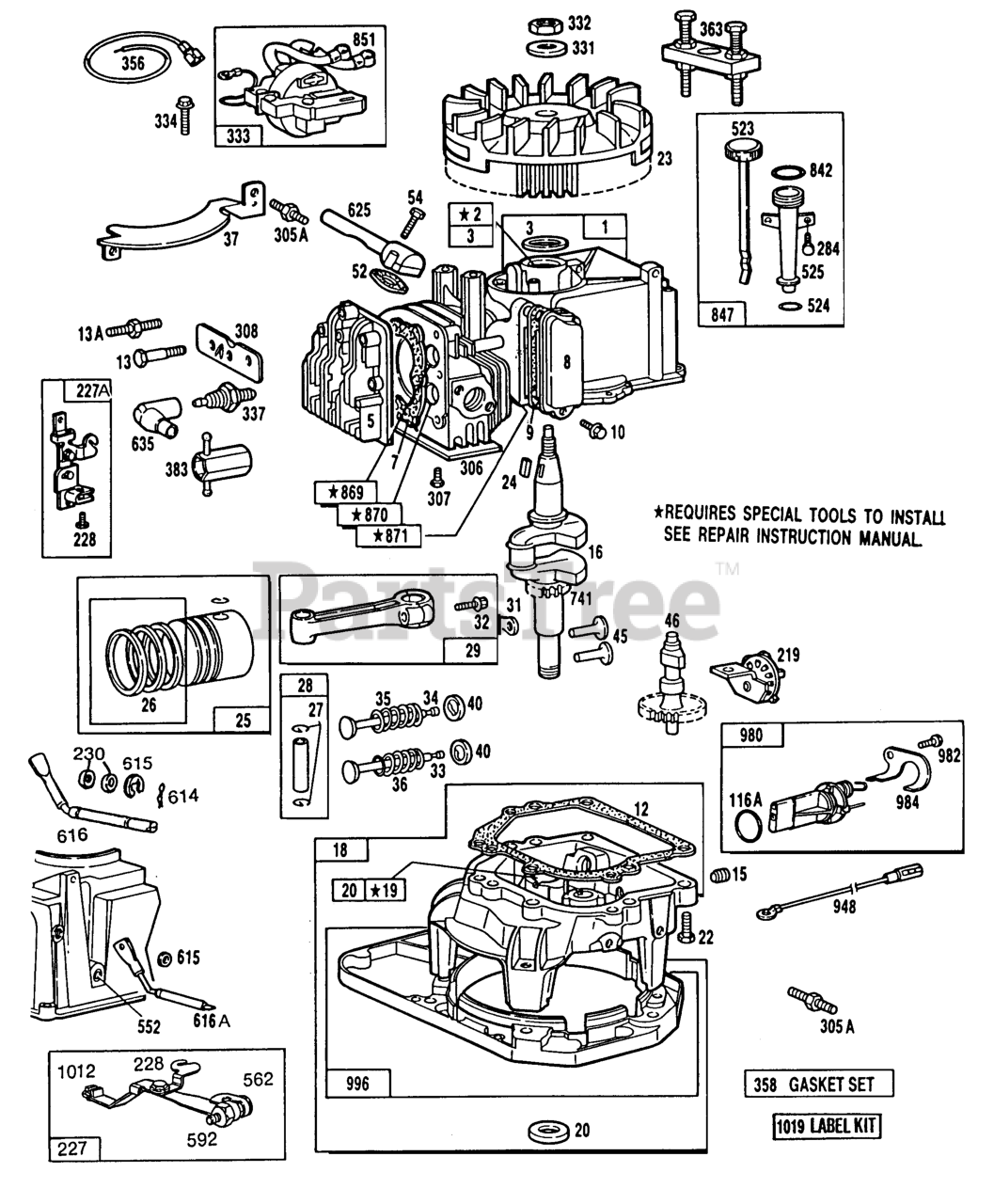

Cyl,Oil Fill,Piston,SumpBase Parts Diagram

  • Title

1

Briggs & Stratton 399167

Cylinder Assy (Mechanical Governor)

$186.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 213034

Head-Cylinder

$37.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 270836

Gasket-Cylinder Head
(Superseded to 272171)

Note: Included in Gasket Set-Part No. 391662

$8.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 298383

Breather-Vlv. Chamber
(Superseded to 791781)

$14.99

$

In Stock, only 4 left!

0

9

Briggs & Stratton 270239

Gasket-Valve Cover
(Superseded to 695890)

Note: Included in Gasket Set-Part No. 391662

$4.49

$

In Stock, Qty 13

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 270833

Gasket, Crankcase (.015")
(Superseded to 692218)

Note: Included in Gasket Set-Part No. 391662

$

$

Not available

12

Briggs & Stratton 270895

Gasket-Crkcse (.005")

Note: Included in Gasket Set-Part No. 391662

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 270896

Gasket-Crkcse (.009")

Note: Included in Gasket Set-Part No. 391662

$5.99

$

Usually ships in 2-12 days

0

13A

Briggs & Stratton 93772

Stud-Hex Drive (15/16" Long)

Note: Uses: 22963 Washer (2)

$8.49

$

In Stock, only 3 left!

0

13

Briggs & Stratton 93111

Screw, Machine Hex (15/16" Long)
(Superseded to 592840)

$43.99

$

In Stock, only 4 left!

0

15

Briggs & Stratton 94174

Plug, Pipe Magnetic
(Superseded to 691663)

$10.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 399405

Crankshaft

Note: To Replace Crankshaft Gear Pin, Order Part No. 230978

$107.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 399774

Sump-Engine

$90.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 293709

Bushing/Seal Kit (Plain)

Note: Requires Special Tools for Installation.

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391483

Seal-Oil
(Superseded to 391483S)

$5.99

$

In Stock, Qty 9

0

22

Briggs & Stratton 93032

Screw-Tank Mounting
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 394066

Flywheel/Pole Piece (Heavy)
(Superseded to 699573)

$75.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 391650

Piston Assy-Std

$63.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 391651

Piston-Assy. .010" O.S.

$37.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 391652

Piston-Assy. .020" O.S.

$37.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 391653

Piston-Assy. .030" O.S.

$110.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391654

Ring Set-Std

$31.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391656

Ring Set-010

$22.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391658

Ring Set-020

$18.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391660

Ring Set-030

$27.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 392330

For Chrome Piston Ring Set Standard Size

$22.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Lock-Piston Pin
(Superseded to 691588)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 391649

Pin Assembly-Piston Standard

$3.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 394861

Pin Assembly-Piston .005" O.S.

$2.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 391640

Rod Assy.-Connecting
(Superseded to 490566)

Note: For Connecting Rod with .020" undersize Crankpin Bearing-Order No. 393710

$39.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222282

Washer

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94405

Screw-Connecting Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 212004

Valve-Exhaust

$31.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 261233

Valve-Intake

$20.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 260552

Spring, Valve
(Superseded to 690520)

$5.49

$

In Stock, Qty 9

0

36

Briggs & Stratton 26478

Spring, Valve (Exhaust)
(Superseded to 692180)

$6.49

$

In Stock, Qty 5

0

37

Briggs & Stratton 223150

Guard-Flywheel (Muffler Side)
(Superseded to 691209)

$10.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 93312

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 692194)

$5.99

$

In Stock, Qty 18

0

45

Briggs & Stratton 261250

Tappet-Valve

$8.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 395856

Gear-Cam

$69.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270844

Gasket-Intake Elbow

Note: Included in Gasket Set-Part No. 391662

$13.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 93485

Screw-Hex
(Superseded to 691111)

$3.99

$

Usually ships in 2-12 days

0

116A

Briggs & Stratton 280674

O-Ring

$1.49

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 394044

Slinger-Oil

$19.99

$

Usually ships in 2-12 days

0

227A

Briggs & Stratton 398379

Lever Assy.-Governor

Note: Used Before Code Date 87120800

$11.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 491482

Lever-Governor

Note: Used After Code Date 87120700

$15.99

$

Usually ships in 2-12 days

0

228

Briggs & Stratton 93758

Screw, Hex Wash Hd
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 220680

Washer, Steel
(Superseded to 690390)

$3.99

$

Usually ships in 2-12 days

0

284

Briggs & Stratton 94073

Screw, Hex Washer H
(Superseded to 691002)

$8.49

$

In Stock, only 1 left!

0

305A

Briggs & Stratton 94167

Stud-Blower Housing
(Superseded to 690368)

Note: Uses: 90832 Lockwasher

$4.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 223263

Shield-Cylinder

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

308

Briggs & Stratton 223557

Bracket-Head

$6.49

$

Usually ships in 2-12 days

0

331

Briggs & Stratton 223047

Washer, Flywheel
(Superseded to 691736)

$5.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 92284

Nut, Jam (Flywheel)
(Superseded to 690662)

$5.99

$

In Stock, Qty 8

0

333

Briggs & Stratton 399769

Armature-Magneto

$37.99

$

Usually ships in 2-12 days

0

334

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 293918

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398874

Wire, Dual Stop Ass
(Superseded to 491391)

$6.49

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 391662

Gasket-Set

$40.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Puller-Flywheel (Optional Accessory)

$23.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, Qty 5

0

523

Briggs & Stratton 396372

Dipstick & Cap Assy.
(Superseded to 495234)

$14.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 271485

Seal, Oil Fill Tube
(Superseded to 691876)

$5.49

$

In Stock, only 1 left!

0

525

Briggs & Stratton 280578

Tube-Oil Filler
(Superseded to 694531)

$

$

Not available

552

Briggs & Stratton 230732

Bushing-Gov Crank (3/16" I.d.)

$6.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt-Gov Lever

$

$

Not available

592

Briggs & Stratton 231083

Nut, Hex.

$

$

Not available

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 4 left!

0

616A

Briggs & Stratton 394075

Crank-Governor (Mechanical Governor)

Note: Used Before Code Date 88011100

$18.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 491405

Governor Crank And Retainer Assy.

Note: Used After Code Date 88011000

$12.99

$

Usually ships in 2-12 days

0

625

Briggs & Stratton 398972

Tube-Fuel Intake

$11.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 280849

Elbow-Spark Plug (Used On Low Oil Sensor)

$

$

Not available

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 16

0

741

Briggs & Stratton 261533

Gear, Timing
(Superseded to 691805)

Note: (For Plain Bearing 2 Piece Crankshaft)

$15.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

$4.49

$

In Stock, only 1 left!

0

847

Briggs & Stratton 399030

Tube-Oil
(Superseded to 691440)

$25.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

869

Briggs & Stratton 210879

Seat-Valve (Intake)

Note: Used Before Code Date 88080100

$6.99

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 211172

Seat-Valve (Intake)
(Superseded to 691701)

Note: Used After Code Date 88073100

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

Seat-Valve (Exhaust)
(Superseded to 691702)

Note: For installation and options, see Repair Manual.

$8.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231349

Guide-Exhaust Valve

$14.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide (Brass)

Note: See Repair Manual.

$14.99

$

In Stock, only 3 left!

0

948

Briggs & Stratton 398995

Wire Assembly

$12.99

$

Usually ships in 2-12 days

0

980

Briggs & Stratton 399768

Oil Gard Group

Note: Includes 280275 Tie-Cable

$37.99

$

Usually ships in 2-12 days

0

982

Briggs & Stratton 93868

Screw, Sem Hex Head (For Aluminum Manifold)
(Superseded to 691003)

$3.49

$

In Stock, only 2 left!

0

984

Briggs & Stratton 223164

Retainer-Clip

$

$

Not available

996

Briggs & Stratton 399777

Adaptor Group

$61.99

$

Usually ships in 2-12 days

0

1012

Briggs & Stratton 280414

Retsiner-Link
(Superseded to 690585)

$4.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 491082

Label Kit

$

$

Not available
