113988-0146-XX - Briggs & Stratton Vertical Engine Carburetor & Fuel Tank Assy Parts Diagram

Vertical Engine

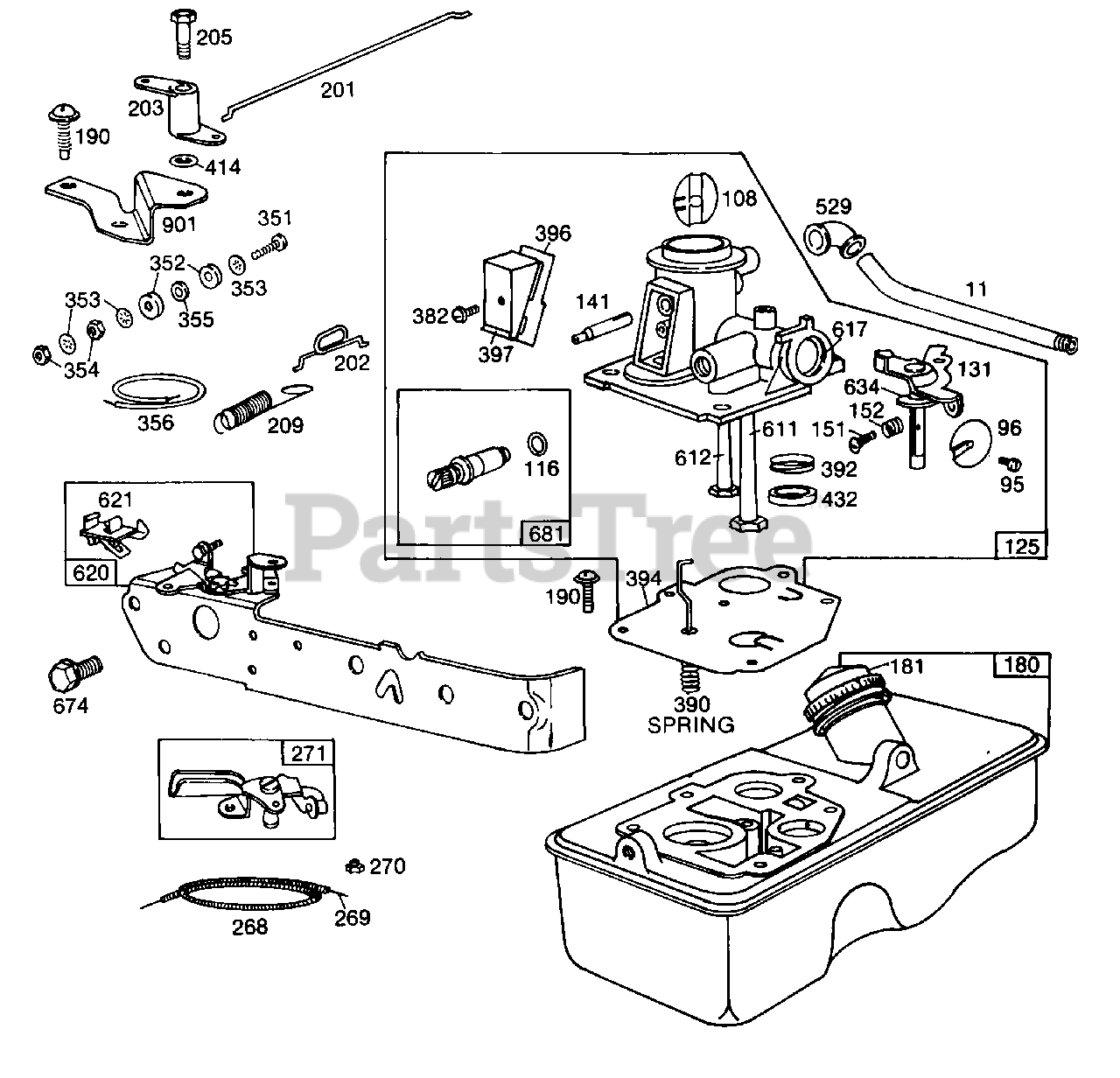

Carburetor & Fuel Tank Assy Parts Diagram

  • Title

11

Briggs & Stratton 231043

Tube-Breather

$7.49

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

96

Briggs & Stratton 211237

Valve-Throttle

$8.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 280178

Valve-Choke

$6.49

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280203

Seal-O
(Superseded to 691898)

$5.49

$

In Stock, only 4 left!

0

125

Briggs & Stratton 394739

Carburetor Assembly
(Superseded to 396336)

$

$

Not available

131

Briggs & Stratton 394035

Shaft-Throttle (Mechanical Governor)

$13.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 68908

Shaft-Choke

$14.99

$

Usually ships in 2-12 days

0

151

Briggs & Stratton 93524

Screw-Slotted (5-40 X 1/2")

$3.99

$

Usually ships in 2-12 days

0

152

Briggs & Stratton 260746

Spring-Throttle Adjustment
(Superseded to 691783)

$7.99

$

In Stock, only 1 left!

0

180

Briggs & Stratton 391694

Tank Assembly-Fuel
(Superseded to 495912)

$

$

Not available

181

Briggs & Stratton 298425

Cap, Tank (Metal) A (1-1/2" O.d. Top)
(Superseded to 493982S)

$4.99

$

In Stock, only 4 left!

0

190

Briggs & Stratton 93440

Screw, Sem Pan Hd C
(Superseded to 692200)

$

$

Not available

201

Briggs & Stratton 261539

Link-Governor

$5.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 261619

Link-Throttle
(Superseded to 261897)

$5.99

$

In Stock, only 1 left!

0

203

Briggs & Stratton 280272

Crank-Bell (Mechanical Governor)

$8.49

$

Usually ships in 2-12 days

0

205

Briggs & Stratton 93838

Screw, Shoulder Hex (#6-32 Thread)
(Superseded to 691630)

$10.99

$

In Stock, only 2 left!

0

209

Briggs & Stratton 261643

Spring-Governor

Note: (For 3500 to 3700 RPM Top Speed Set-No Load)

$5.49

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 66986

Casing, Wire (48" Cut To Required Length)
(Superseded to 691025)

Note: If longer casing is needed, specify length in inches; if a shorter casing is needed order No. 66986 and cut to required length.

$

$

Not available

269

Briggs & Stratton 26099

Wire, Control (54" Cut To Required Length)
(Superseded to 691026)

Note: If longer wire is needed, specify length in inches; if shorter wire is needed order No. 26099 and cut to required length.

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

351

Briggs & Stratton 93735

Screw-Slotted

$3.49

$

Usually ships in 2-12 days

0

352

Briggs & Stratton 66068

Washer-Fiber

$4.99

$

Usually ships in 2-12 days

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

Usually ships in 2-12 days

0

354

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

355

Briggs & Stratton 66554

Washer-Insulating

$5.49

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 298479

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

382

Briggs & Stratton 93545

Screw-Cover

$3.49

$

Usually ships in 2-12 days

0

390

Briggs & Stratton 261249

Spring-Diaphragm

$5.99

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 260455

Spring-Pump Diaphragm
(Superseded to 692206)

$4.49

$

In Stock, only 4 left!

0

394

Briggs & Stratton 391643

Diaphragm-Carburetor
(Superseded to 391681)

$19.99

$

In Stock, only 2 left!

0

396

Briggs & Stratton 270571

Gasket-Choke Link Cover

$6.99

$

In Stock, only 2 left!

0

397

Briggs & Stratton 211678

Cover-Choke Link

$3.49

$

Usually ships in 2-12 days

0

414

Briggs & Stratton 220982

Washer, Steel Zinc
(Superseded to 691721)

$7.49

$

In Stock, only 1 left!

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

$4.99

$

In Stock, Qty 20+

0

529

Briggs & Stratton 67838

Grommet, Cover
(Superseded to 692189)

$4.49

$

In Stock, Qty 20+

0

611

Briggs & Stratton 297219

Tube-Pick Up (2-5/8" Long)
(Superseded to 297219S)

$8.99

$

Usually ships in 2-12 days

0

612

Briggs & Stratton 296811

Pipe/Sleeve Assy
(Superseded to 497413S)

$7.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-Intake Tube
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 394642

Bracket-Control (Remote Control)

$21.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 297472

Switch, Stop Assy
(Superseded to 297472S)

$

$

Not available

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 16

0

674

Briggs & Stratton 93559

Screw-Tank To Bracket
(Superseded to 690810)

$3.49

$

In Stock, Qty 5

0

681

Briggs & Stratton 393451

Neddle Valve (Plastic Body)
(Superseded to 395508)

$8.99

$

Usually ships in 2-12 days

0

901

Briggs & Stratton 223004

Bracket-Bell Crank

$

$

Not available
