114-108C190 - White Outdoor 20" Walk-Behind Mower (1994) Rotary Mower Parts Diagram

20" Walk-Behind Mower

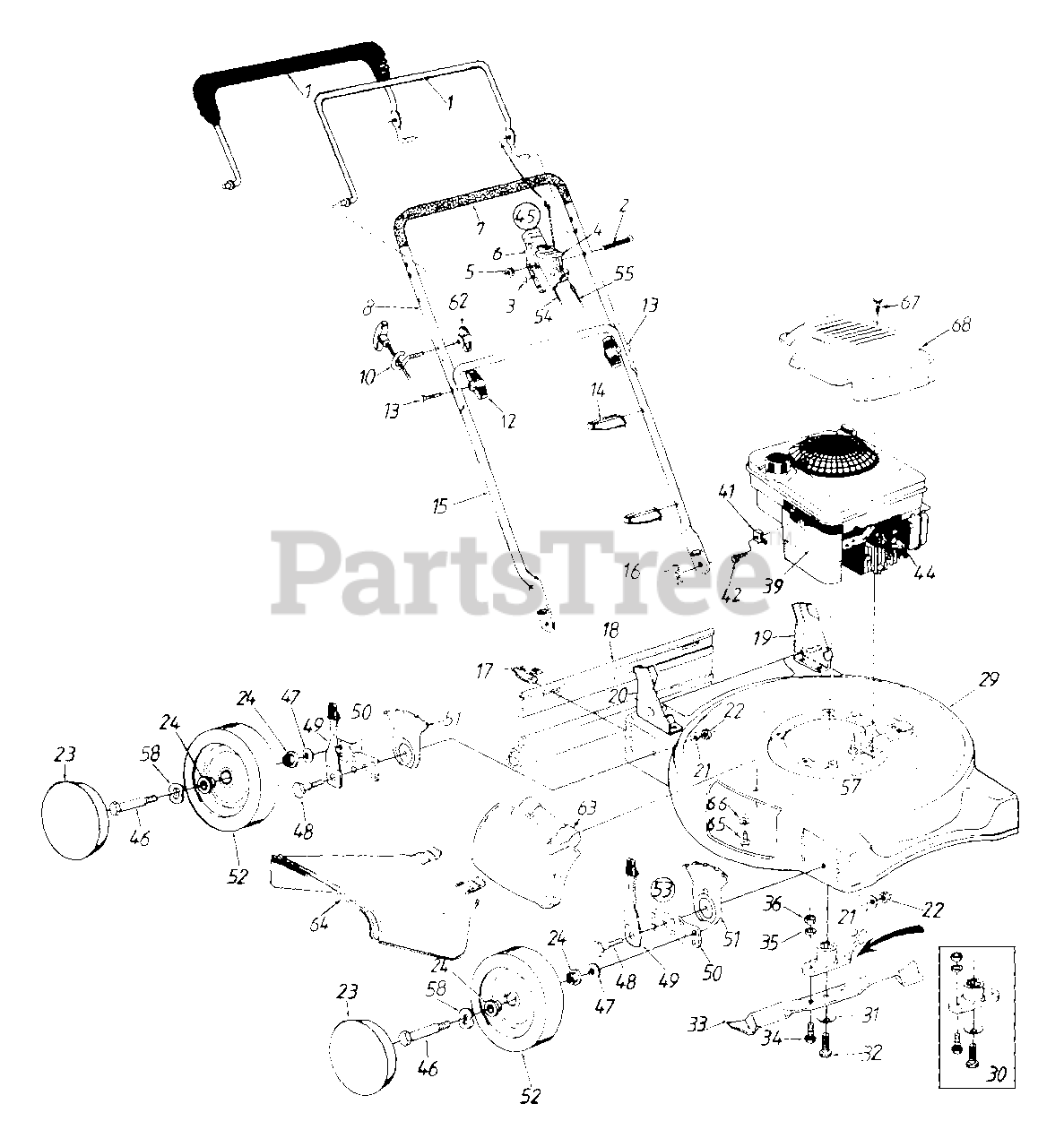

Rotary Mower Parts Diagram

  • Title
1

MTD 647-0004A

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

MTD 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 3 left!

0

3

MTD 936-0501

Spr. Wash. .66" I.D.

$6.99

$

Usually ships in 3-6 days

0

4

MTD 946-0876

Throttle Lever

$8.49

$

In Stock, only 2 left!

0

5

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

6

MTD 946-0875

Throttle Body

$9.49

$

In Stock, Qty 5

0

7

$33.99

$

Usually ships in 3-6 days

0

8

MTD 749-0538E-0637

Upper Handle

$

$

Not available

10

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 6

0

12

MTD 920-0276

Hand Knob

$3.99

$

In Stock, Qty 9

0

13

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

14

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

15

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

16

MTD 914-0104

Hairpin Cotter
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

17

MTD 17098P

Hinge Clip

$

$

Not available

18

MTD 731-1447

Rear Flap

$

$

Not available

19

MTD 12935B

Handle Bracket Ass'y. - L.H.

Note: NLA

Variations

MTD 12935B-0637

Handle Brkt. Ass'y L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 12936B

Handle Bracket Ass'y. - R.H.

Note: NLA

Variations

MTD 12936B-0637

Handle Brkt. Ass'y R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 936-0356

Bell-Wash. .39" I.D. x 1.38"

$

$

Not available

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

23

MTD 731-0981C

Hub Cap

$10.99

$

In Stock, only 2 left!

0

24

MTD 941-0180

Bearing

$18.99

$

Usually ships in 3-6 days

0

29

MTD 682-0016

20" Deck Ass'y.

Note: NLA

$

$

Currently unavailable

30

MTD 936-0453

Blade Adapter Kit

$3.49

$

Usually ships in 3-6 days

0

31

MTD 736-0453

Bell-Wash. .46" I.D.
(Superseded to 936-0453)

$3.49

$

Usually ships in 3-6 days

0

32

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$9.99

$

In Stock, only 1 left!

0

33

MTD 942-0720

20" Mulching Blade

$31.99

$

In Stock, only 1 left!

0

34

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

35

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

36

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

39

Engine

$

$

Not available

41

MTD 751B213146

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

42

MTD 710-1237

Hex Self-Tap Scr. #10-32 x .62"

$4.49

$

Usually ships in 3-6 days

0

44

MTD 735-0639

Spark Plug Boot

$

$

Not available

45

MTD 811-0185

Throttle Box Comp.

Note: Incl. Ref. 2, 3, 4, 5, 6

$36.99

$

In Stock, only 1 left!

0

46

MTD 938-0102

Axle Bolt
(Superseded to 738-0102)

$

$

Not available

47

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

48

MTD 938-0507B

Shld. Bolt .50" Dia. x .357"
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

49

MTD 94832

Spring Lever Ass'y. w/Knob

$10.99

$

In Stock, only 3 left!

0

50

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

MTD 787-01290A

Height Adj. Plate

$12.99

$

In Stock, only 2 left!

0

52

MTD 734-1793

Wheel Ass'y. Comp.

Note: NLA

$

$

Not available

53

MTD 14578

Height Adj. Ass'y. Comp. - R.F. & L.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

53

MTD 753-06761

Height Adj. Ass'y. Comp. - L F. & R.R.

$65.99

$

In Stock, Qty 7

0

54

MTD 946-0671A

Throttle Cable - 51"

$14.99

$

Usually ships in 3-6 days

0

55

MTD 946-0550

Control Cable - 39"

$21.99

$

In Stock, only 4 left!

0

57

MTD 710-0654A

Hex L-Wash Hd. Scr. 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, only 4 left!

0

58

MTD 936-0504

Wave Washer .51" I.D.

$4.49

$

In Stock, Qty 10

0

?59

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

62

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, Qty 5

0

63

MTD 682-7000

Mulching Plug

$

$

Not available

64

MTD 731-1409B

Chute Deflector

$28.99

$

In Stock, Qty 5

0

65

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 5

0

66

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

67

MTD 710-1256

Hi-Lo Scr. #10 x 1.25" Lg.

$5.99

$

In Stock, Qty 5

0

68

MTD 751B281451

Engine Shroud

$

$

Not available
