114-1820 - Toro Recycler Conversion Kit for Z593-D Z Master With 52 Rear-Discharge Mower RECYCLER CONVERSION KIT NO. 114-1820 Parts Diagram

Recycler Conversion Kit for Z593-D Z Master With 52 Rear-Discharge Mower

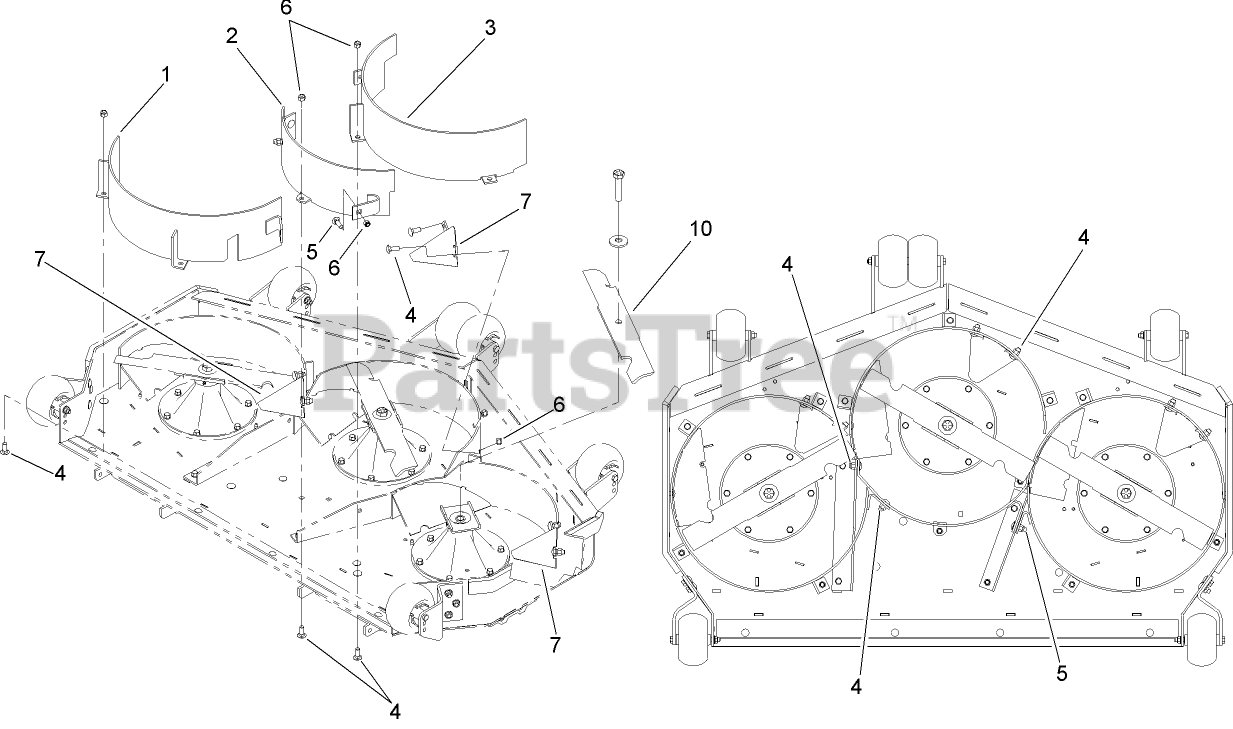

RECYCLER CONVERSION KIT NO. 114-1820 Parts Diagram

  • Title

1

Toro 114-1821-01

RH BAFFLE ASM

$

$

Currently unavailable

2

Toro 114-1823-01

CENTER BAFFLE ASM

$

$

Currently unavailable

3

Toro 114-1822-01

LH BAFFLE ASM

$

$

Currently unavailable

4

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

5

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 9

0

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 114-1816-01

KICKER

$69.99

$

Usually ships in 3-6 days

0

10

Toro 105-7779-03

BLADE-RECYCLER

$30.99

$

In Stock, Qty 11

0
