114-3505 - Toro Light Kit for GrandStand Mower LIGHT ASSEMBLY NO. 114-3505 Parts Diagram

Light Kit for GrandStand Mower

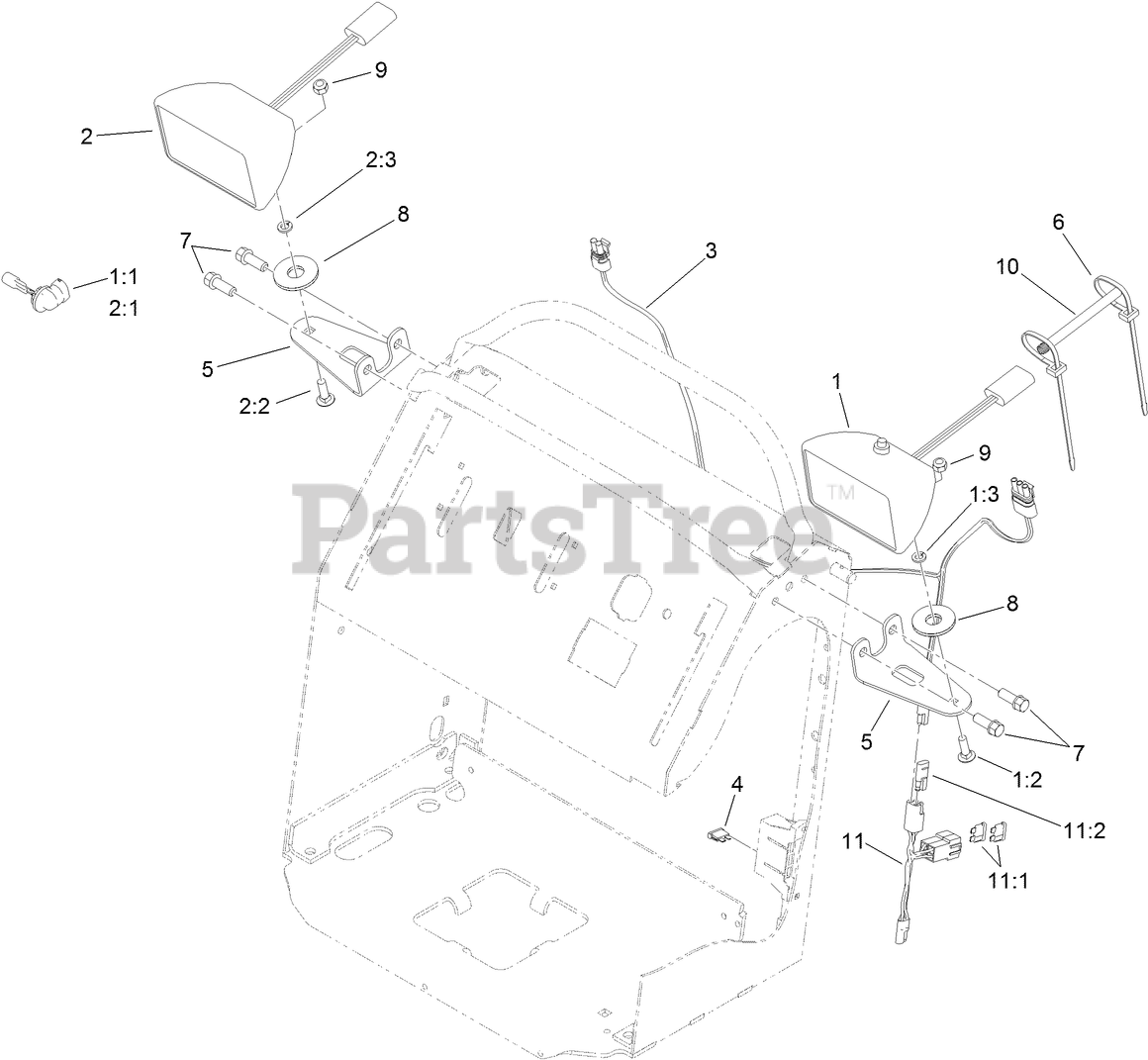

LIGHT ASSEMBLY NO. 114-3505 Parts Diagram

  • Title

1

Toro 94-9023

LAMP W/SWITCH

$274.99

$

Usually ships in 3-6 days

0

1:1

Toro 95-0909

LAMP-12 VOLT

$39.99

$

Usually ships in 3-6 days

0

1:2

Toro 3230-28

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

1:3

Toro 3253-33

WASHER-LOCK

$1.99

$

In Stock, Qty 11

0

2

Toro 94-9024

LAMP ASM

$202.99

$

Usually ships in 3-6 days

0

2:1

Toro 95-0909

LAMP-12 VOLT

$39.99

$

Usually ships in 3-6 days

0

2:2

Toro 3230-28

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

2:3

Toro 3253-33

WASHER-LOCK

$1.99

$

In Stock, Qty 11

0

3

Toro 114-3508

HARNESS-WIRE

$

$

Not available

4

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

In Stock, Qty 8

0

5

Toro 117-0529-03

BRACKET-MOUNT, LIGHT

$25.99

$

Usually ships in 3-6 days

0

6

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 10

0

7

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

8

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 20+

0

9

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 114-3597

TUBE-CONVOLUTED

$

$

Not available

11

Toro 121-5988

HARNESS-WIRE, FAN/LIGHT

$87.99

$

Usually ships in 3-6 days

0

11:1

Toro 218-578

FUSE-BLADE, 10 AMP

$3.49

$

In Stock, Qty 6

0

11:2

Toro 116-0053

CAP-PLUG

$42.99

$

Usually ships in 3-6 days

0
