114-3521 - Toro Striping Kit for GrandStand Mower with 48" or 52" Cutting Unit ROLLER ASSEMBLY NO. 119-0366 Parts Diagram

Striping Kit for GrandStand Mower with 48" or 52" Cutting Unit

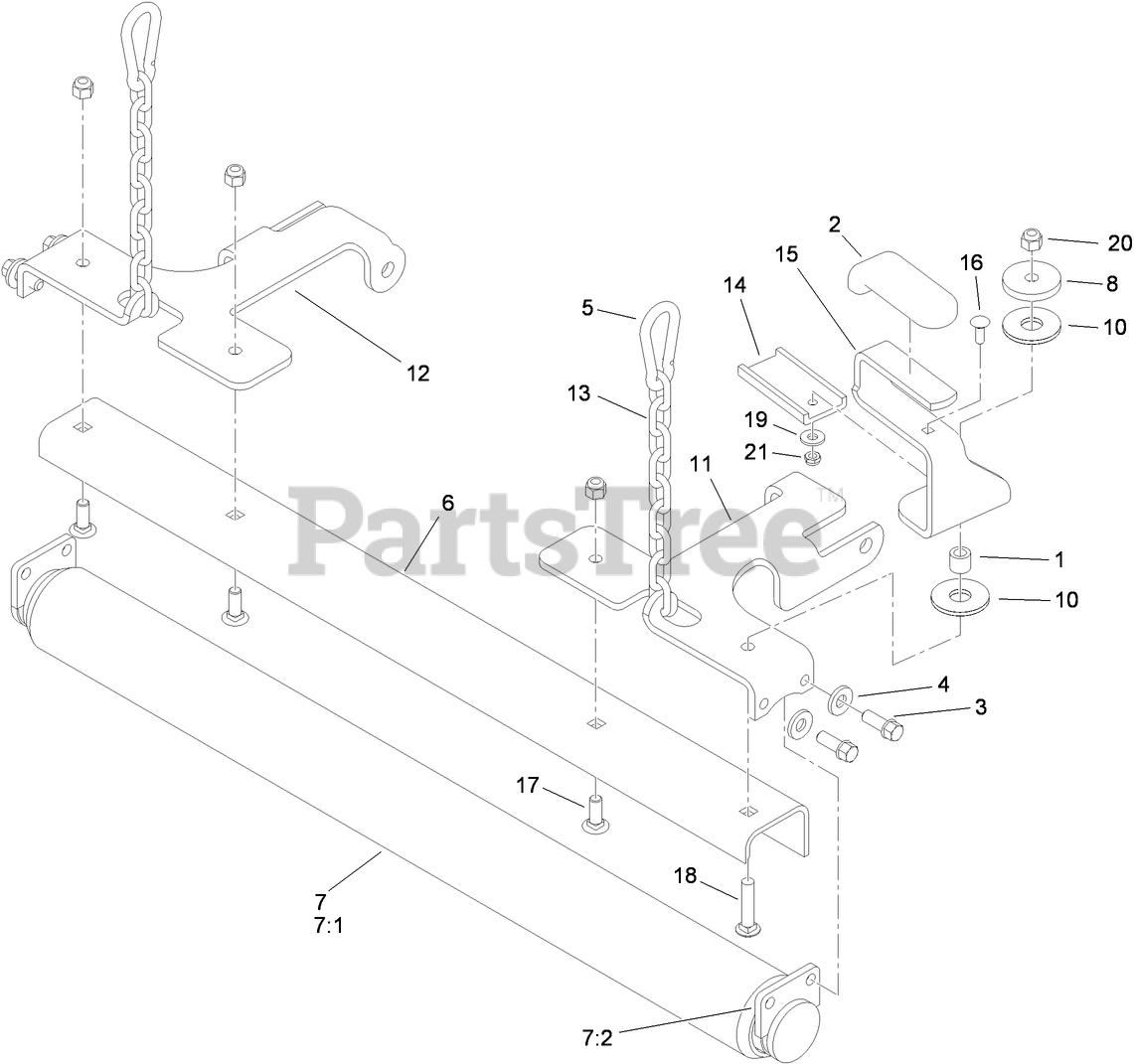

ROLLER ASSEMBLY NO. 119-0366 Parts Diagram

  • Title

1

Toro 117-9700

SPACER
(Superseded to 1-413088)

$11.99

$

In Stock, Qty 10

0

2

Toro 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 8

0

3

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

4

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

5

Toro 107-1507

LINK-SNAP

$54.99

$

Usually ships in 3-6 days

0

6

Toro 108-2154-03

SCRAPER-ROLLER

$203.99

$

Usually ships in 3-6 days

0

7

Toro 108-2199

ROLLER ASM

$776.99

$

Usually ships in 3-6 days

0

7:1

Toro 108-2157

ROLLER-STRIPER

$347.99

$

Usually ships in 3-6 days

0

7:2

Toro 108-2198

HUB ASM

$323.99

$

Usually ships in 3-6 days

0

8

Toro 110-9981

WASHER-PLAIN

$15.99

$

In Stock, Qty 20+

0

10

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 20+

0

11

Toro 114-3519-03

MOUNT-ROLLER, RH

$115.99

$

Usually ships in 3-6 days

0

12

Toro 114-3520-03

MOUNT-ROLLER, LH

$115.99

$

Usually ships in 3-6 days

0

13

Toro 117-9628

CHAIN-LINK, STRAIGHT

$

$

Not available

14

Toro 117-9667

SLIDE-PLASTIC

$64.99

$

Usually ships in 3-6 days

0

15

Toro 117-9681-03

LEVER-ROLLER
(Superseded to 120-6473-03)

$

$

Not available

16

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

17

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

18

Toro 3231-5

SCREW-CARR

$1.99

$

In Stock, Qty 20+

0

19

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
