115 H - Husqvarna Automower Robotic Lawn Mower (Original) INSTALLATION ACCESSORIES Parts Diagram

Automower Robotic Lawn Mower

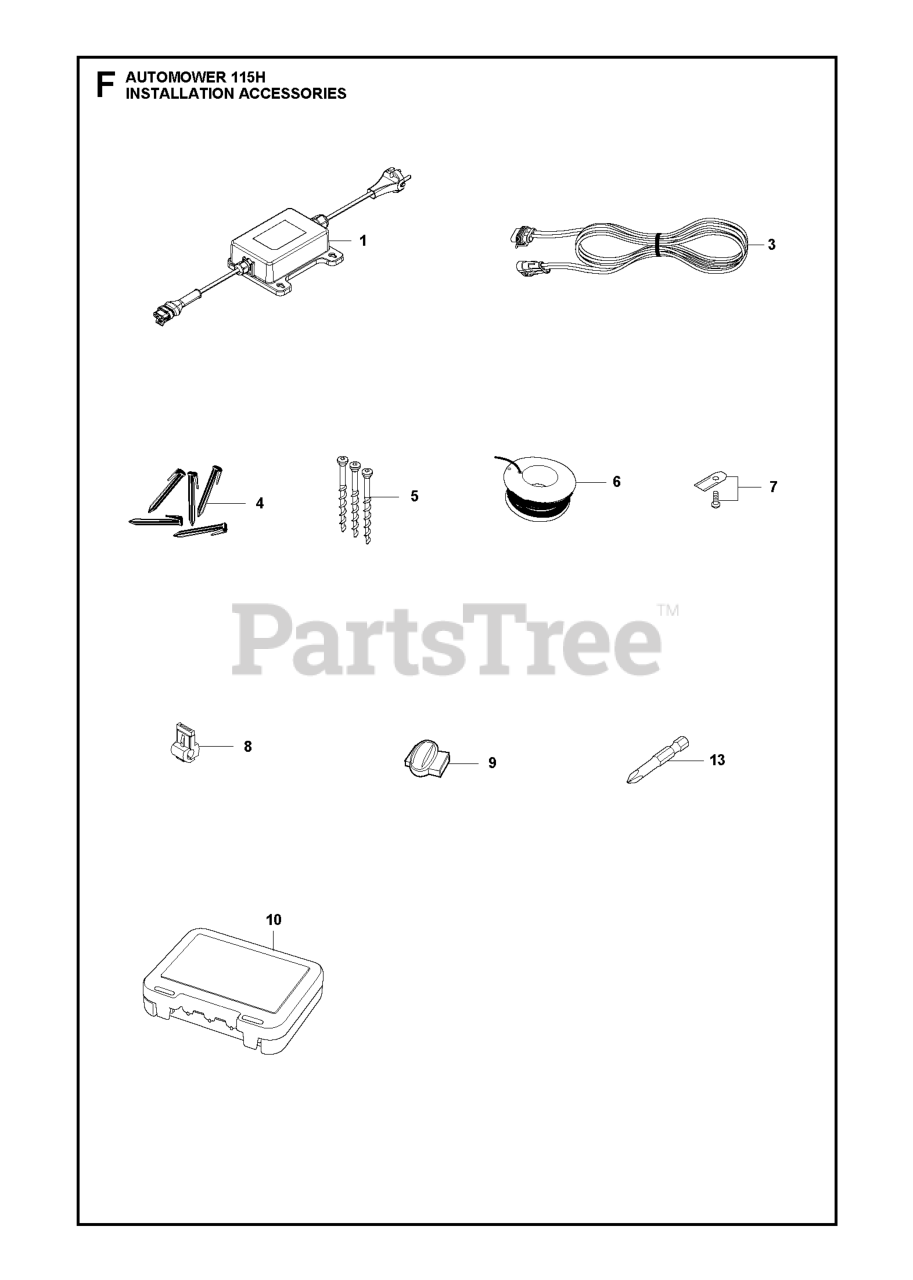

INSTALLATION ACCESSORIES Parts Diagram

  • Title

1

Husqvarna 590442204

NEEDS DESCRIPTION

Note: US, Desktop

$

$

Not available

3

Husqvarna 579825101

CABLE ASSY LOW VOLTAGE CABLE

Note: Low Voltage Cable 20 m

$74.99

$

Usually ships in 3-10 days

0

3

Husqvarna 579825102

CABLE ASSY LOW VOLTAGE CABLE

Note: Low Voltage Cable 10 m

$43.99

$

Usually ships in 3-10 days

0

3

Husqvarna 579825104

CABLE ASSY LOW VOLTAGE CABLE

Note: Low Voltage Cable 5 m

$83.99

$

Usually ships in 3-10 days

0

3

Husqvarna 579825103

CABLE ASSY LOW VOLTAGE CABLE

Note: Low Voltage Cable 3 m

$39.99

$

Usually ships in 3-10 days

0

4

Husqvarna 577864201

STAPLE 100 PCS, BLISTER
(Superseded to 596281901)

Note: 100 pcs, Husqvarna Blister

$47.99

$

Usually ships in 3-10 days

0

4

Husqvarna 583973401

STAPLE 100 PCS
(Superseded to 596281901)

Note: 100 pcs, Unbranded

$47.99

$

Usually ships in 3-10 days

0

5

Husqvarna 577864901

SCREW 3 PCS, BLISTER PACK
(Superseded to 597435801)

Note: Screw Kit, Blister pack 3 pcs

$10.99

$

Usually ships in 3-10 days

0

6

Husqvarna 577864302

WIRE 50M STANDARD Ø2.7MM,BLIST

Note: Loop Wire, Blister pack(50 m)

$

$

Not available

6

Husqvarna 580662002

WIRE BOUNDARY 150M
(Superseded to 596286801)

Note: Loop Wire, (150 m)

$

$

Not available

6

Husqvarna 577864301

WIRE 150M, BLISTER
(Superseded to 596286801)

Note: Loop Wire, Blister pack(150 m)

$

$

Not available

7

Husqvarna 577864603

HUS BLADE SET 9 PCS
(Superseded to 596287201)

Note: Long life-Safety Blade, Blister, 9 pcs

$31.99

$

Usually ships in 3-10 days

0

7

Husqvarna 577606505

HUS BLADE SET 45 PCS
(Superseded to 596287301)

Note: Long life-Safety Blade, 45 pcs

$

$

Not available

7

Husqvarna 577606604

HUS BLADE SET 300 PCS
(Superseded to 596287302)

Note: Long life-Safety Blade, 300 pcs

$

$

Not available

8

Husqvarna 577864801

CONNECTOR 5 PCS, BLISTER
(Superseded to 596290401)

Note: Loop Wire connector, 5 pcs, Blister Pack

$15.99

$

In Stock, only 2 left!

0

8

Husqvarna 535129001

BRAKER
(Superseded to 596290401)

Note: Loop Wire connector, MOQ 10 pcs

$15.99

$

In Stock, only 2 left!

0

8

Husqvarna 535129002

CONNECTOR 100 PCS

Note: Lopp Wrie connector, 100 pcs

$

$

Not available

9

Husqvarna 577864701

COUPLER SPLICER, 5 PCS,
(Superseded to 596287101)

Note: Splicer, 5 pcs, Blister Pack

$11.99

$

Usually ships in 3-10 days

0

9

Husqvarna 501980201

SPLICE KIT
(Superseded to 596287101)

Note: Splicer, MOQ 10 pcs

$11.99

$

Usually ships in 3-10 days

0

9

Husqvarna 501980203

COUPLER SPLICER, 100 PCS
(Superseded to 596287001)

Note: Splicer, 100 pcs

$

$

Not available

10

Husqvarna 590855001

CONNECTOR PROTECTION BOX
(Superseded to 590855002)

Note: Cable Connector Protection

$

$

Not available

13

Husqvarna 596339801

WRENCH BITS CHANGING ROBOTIC B

Note: Bit for Automower Blades MOQ 5 pcs

$32.99

$

Usually ships in 3-10 days

0
