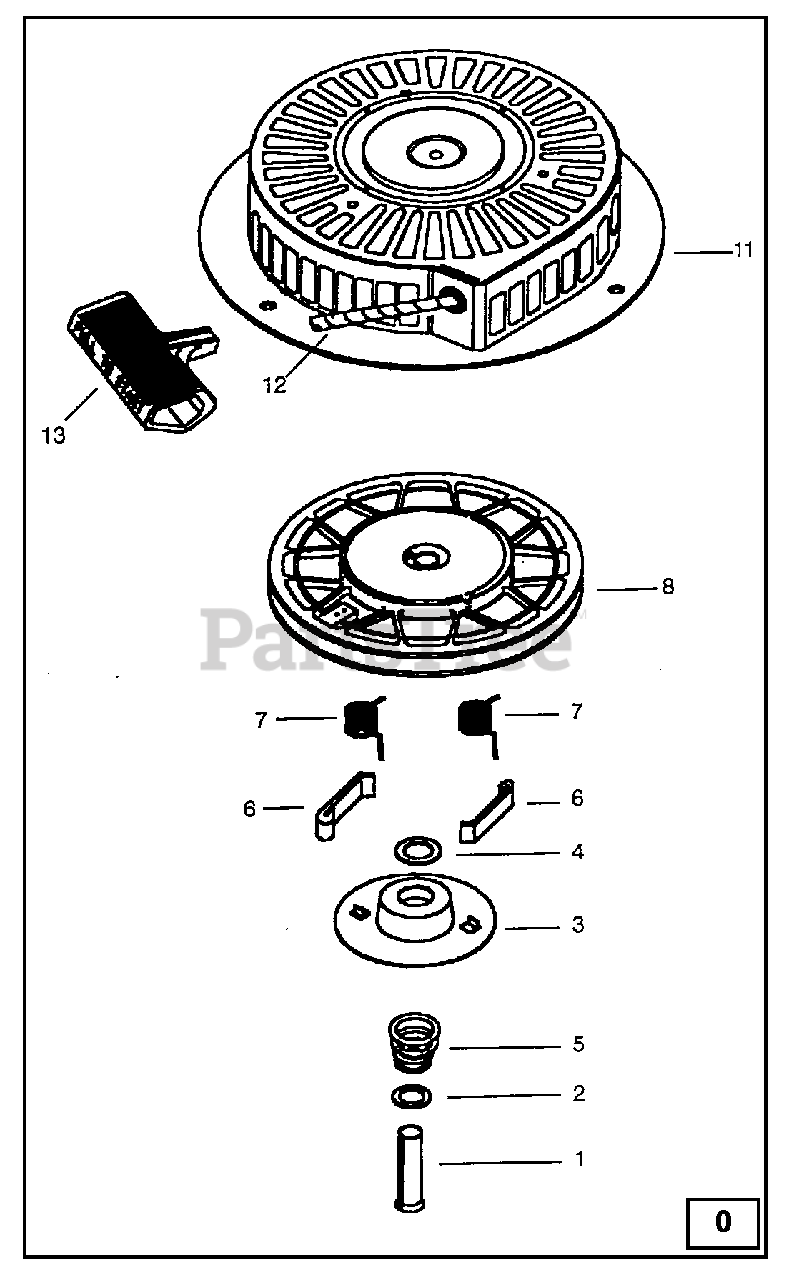

1150-1 - Generac COMPANION 5,000 Watt Portable Generator Recoil Starter (Tecumseh Engine - 143.981007) Parts Diagram

COMPANION 5,000 Watt Portable Generator

Recoil Starter (Tecumseh Engine - 143.981007) Parts Diagram

  • Title

Briggs & Stratton 590746

Recoil Starter

$

$

Currently unavailable

1

Briggs & Stratton 590599A

Spring Pin

Note: (Incl. 4)

$

$

Currently unavailable

2

Briggs & Stratton 590600

Washer

$

$

Currently unavailable

3

Briggs & Stratton 590679

Retainer

$16.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 590601

Washer

$18.99

$

In Stock, only 4 left!

0

5

Briggs & Stratton 590678

Brake Spring

$5.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 590680

Starter Dog

$

$

Currently unavailable

7

Briggs & Stratton 590412

Dog Spring

$

$

Currently unavailable

8

Briggs & Stratton 590681

Pulley & Rewind Spring Assembly

$128.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 590747

Starter Housing Assembly

$

$

Currently unavailable

12

Briggs & Stratton 590535

Starter Rope

$12.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 590701

Starter Handle
(Superseded to 590850)

$3.99

$

In Stock, Qty 14

0
