11530 C (31AH75KU596) - Cub Cadet 30" Snow Thrower (2010) 483-SU-10 Crankcase Parts Diagram

30" Snow Thrower

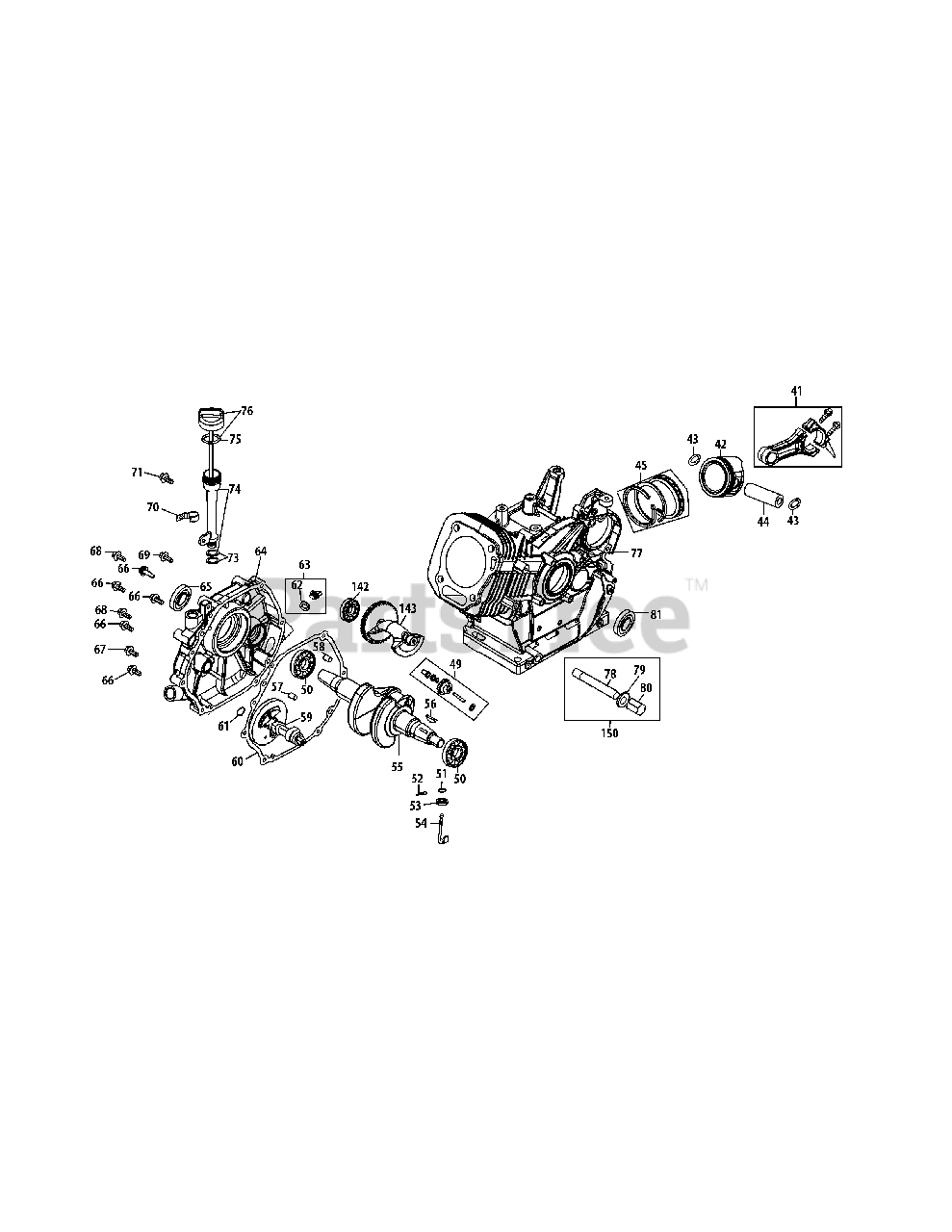

483-SU-10 Crankcase Parts Diagram

  • Title

41

Cub Cadet 951-11951

Connecting Rod Ass’y

$82.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 951-11952

Piston

$46.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 951-11953

Piston Pin Snap Ring
(Superseded to 951-11953A)

$4.49

$

In Stock, only 3 left!

0

44

Cub Cadet 951-11954

Piston Pin
(Superseded to 951-11954A)

$8.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 951-11955

Piston Ring Set
(Superseded to 951-12579)

$30.99

$

In Stock, only 1 left!

0

49

Cub Cadet 951-11956

Governor Gear/Shaft Ass’y

$43.99

$

In Stock, only 2 left!

0

50

Cub Cadet 951-11957

Radial Ball Bearing
(Superseded to 951-11373)

$34.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 736-04453

Washer

$6.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 714-04077

Cotter Pin

$6.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 951-11958

Governor Seal

$4.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 951-11365

Governor Arm Shaft

$5.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 951-11342

Crankshaft Kit

Note: (Incl Ref No. 50,55,56,65,81)

$272.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 715-04102

Dowel Pin, 9 x 12

$5.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 715-04092

Dowel Pin, 7 x 14
(Superseded to 715-04096A)

$4.49

$

In Stock, only 2 left!

0

59

Cub Cadet 951-11959

Camshaft Ass’y
(Superseded to 951-11959B)

$72.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 951-11959

Camshaft Ass’y
(Superseded to 951-11959B)

$72.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 951-11376

Crankcase Cover Gasket

$19.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 736-04476

Washer

$6.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 951-11960

Ring

$4.99

$

In Stock, only 1 left!

0

63

Cub Cadet 951-11345

Oil Filler Plug Ass’y

$10.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 951-11340

Crankcase Cover Kit
(Superseded to 951-11340A)

Note: (Incl Ref No. 50,60,61,64-68)

$79.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 951-11375

Oil Seal
(Superseded to 951-11375A)

$16.99

$

In Stock, Qty 10

0

66

Cub Cadet 710-04971

Bolt, M8 x 38
(Superseded to 710-06061)

$6.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 710-04972

Bolt, M8 x 45
(Superseded to 710-06062)

$6.49

$

Usually ships in 3-6 days

0

68

Cub Cadet 710-05052

Bolt, M8 x 35
(Superseded to 710-06063)

$6.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 951-11320

Dipstick Clamp

$8.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 710-04966

Bolt, M6 x 8

$6.49

$

Usually ships in 3-6 days

0

73

Cub Cadet 951-11903

Fill Tube O-Ring
(Superseded to 951-11381)

$5.99

$

In Stock, Qty 8

0

73

Cub Cadet 951-11903

Oil Fill Tube O-Ring
(Superseded to 951-11381)

$5.99

$

In Stock, Qty 8

0

74

Cub Cadet 951-11972

Oil Fill Tube Assembly
(Superseded to 951-12073)

$12.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 951-11904

Dipstick O-Ring

$4.49

$

In Stock, Qty 5

0

75

Cub Cadet 951-11904

Dipstick O-Ring

$4.49

$

In Stock, Qty 5

0

76

Cub Cadet 951-11971

Dipstick Ass'y
(Superseded to 951-11971A)

$33.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 951-11341A

Crankcase Kit

Note: (Incl Ref No. 50,53,77,81)

$368.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 951-11350

Oil Drain Pipe Ass’y

$9.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 736-04440

Oil Drain Washer
(Superseded to 736-04440A)

$7.49

$

In Stock, Qty 12

0

80

Cub Cadet 710-04906

Drain Plug

$7.49

$

In Stock, Qty 11

0

81

Cub Cadet 951-11499

Oil Seal
(Superseded to 951-11499A)

$14.99

$

In Stock, only 2 left!

0

150

Cub Cadet 951-10641

Oil Drain Ass’y

$13.99

$

In Stock, only 1 left!

0

Cub Cadet 951-11330A

Gasket Kit - Complete

Note: Not shown (Incl Ref No. 53,60,65,79,81,106,108,123,130-132)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11328A

Short Block Ass’y
(Superseded to 951-11328B)

Note: Not shown (Incl Ref No. 41-45,49-61,63-68,77-79,81,102,105,106,108,110,123,130,131, 141, 142)

$954.99

$

Usually ships in 3-6 days

0

Cub Cadet 952Z483-SU-10

Replacement Engine
(Superseded to 952Z683-WUB)

Note: Not shown

$1590.99

$

Usually ships in 3-6 days
