11530 C (31AH75KU596) - Cub Cadet 30" Snow Thrower (2010) Auger Housing Parts Diagram

30" Snow Thrower

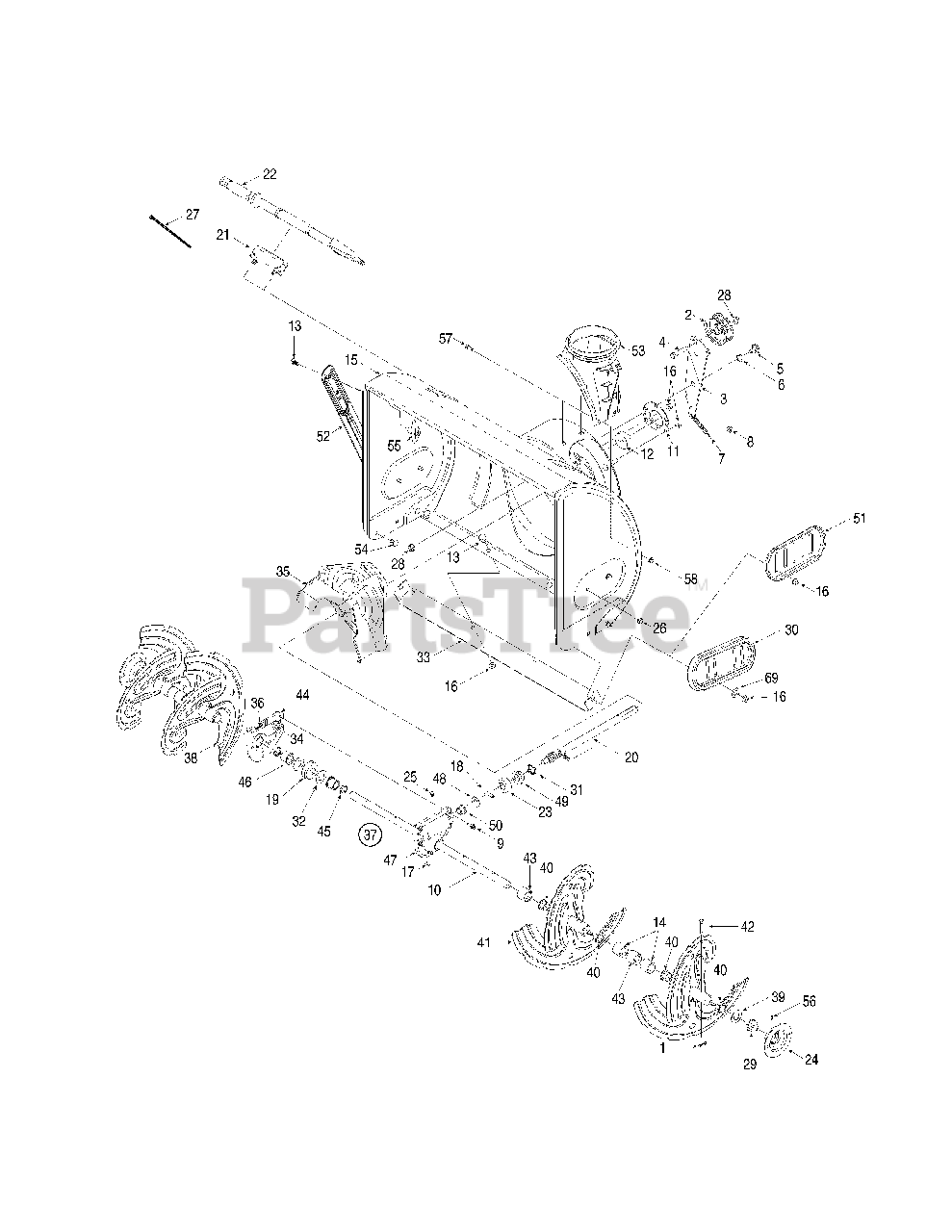

Auger Housing Parts Diagram

  • Title

1

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

2

Cub Cadet 756-04224

Flat Idler Pulley

$28.99

$

In Stock, Qty 20+

0

3

Cub Cadet 790-00080A-0637

Auger Idler Bracket
(Superseded to 790-00080D)

$30.99

$

In Stock, Qty 5

0

4

Cub Cadet 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

5

Cub Cadet 938-0281

Shoulder Screw .625 Dia. x .170
(Superseded to 738-0281)

$

$

Not available

6

Cub Cadet 736-0174

Wave Washer .660 ID x .88 OD x .010

$7.49

$

In Stock, only 2 left!

0

7

Cub Cadet 932-0611

Extension Spring

$7.99

$

In Stock, Qty 8

0

8

Cub Cadet 912-3009

Hex Patch L-Nut 5/16-18
(Superseded to 712-3009)

$

$

Not available

9

Cub Cadet 710-0642

Thd Form ing Screw. 1/4-20 x .75 Lg.

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 711-04282

Auger Axle
(Superseded to 711-04282A)

$119.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 05931A

Bearing Plate

$11.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 941-0309

Self-align ing Bearing

$79.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 731-04871

Spacer

$7.49

$

In Stock, Qty 20+

0

15

Cub Cadet 684-04354-4021

Auger Housing Ass'y 30"

$

$

Not available

16

Cub Cadet 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 914-0161

Wood ruff Key 3/16 x 5/8 HT

$4.99

$

In Stock, Qty 18

0

18

Cub Cadet 715-04021

Dowel Pin

$4.49

$

In Stock, only 4 left!

0

19

Cub Cadet 917-0528A

Worm Gear
(Superseded to 917-04861)

$45.99

$

In Stock, Qty 20+

0

20

Cub Cadet 917-04126

Impeller Shaft

$84.99

$

In Stock, only 2 left!

0

21

Cub Cadet 731-2635

Mounting Bracket
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 6

0

22

Cub Cadet 931-2643

Chute Clean-Out Tool

$20.99

$

In Stock, only 2 left!

0

23

Cub Cadet 718-04071

Thrust Collar

$8.49

$

In Stock, Qty 12

0

24

Cub Cadet 790-00138A-0637

Bearing Housing

$15.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 721-0325

Plug

$4.99

$

In Stock, only 3 left!

0

26

Cub Cadet 710-04484

Hex TT Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 941-0245

Hex. Flange Bearing.751" ID

$10.99

$

In Stock, Qty 20+

0

30

Cub Cadet 731-05984A

Slide Shoe - Polymer

$32.99

$

In Stock, only 2 left!

0

30

Cub Cadet 753-06205

Deluxe Polymer Reversible Shoe Kit

Note: (Will replace 2 of 731-05984A, Incl. Hardware)

$48.99

$

In Stock, only 3 left!

0

31

Cub Cadet 721-0327

Oil Seal

$6.99

$

In Stock, Qty 18

0

32

Cub Cadet 936-0351

Flat Washer .76 ID x 1.5 OD x .03
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 790-00119-4021

Shave Plate
(Superseded to 790-00119-0637)

$41.99

$

In Stock, Qty 6

0

34

Cub Cadet 737-0168A

Alvania Grease

Note: (use 3 oz.)

$32.99

$

In Stock, Qty 9

0

35

Cub Cadet 684-04057A-0637

Impeller Ass’y
(Superseded to 684-04057C-0637)

$78.99

$

In Stock, Qty 12

0

36

Cub Cadet N/A

Three Bond Seal ant 1217H

Note: Purchase locally

$

$

Currently unavailable

37

Cub Cadet 918-04194A

Gear Assembly Complete, 30"
(Superseded to 918-04165B)

$474.99

$

In Stock, only 1 left!

0

38

Cub Cadet 684-04108-4021

Spiral Assembly RH
(Superseded to 684-04108A-4021)

$100.99

$

In Stock, only 4 left!

0

39

Cub Cadet 736-0188

Flat Washer .760 ID x 1.49 OD

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 741-0493A

Flange Bearing
(Superseded to 741-0493C)

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 684-04107-4021

Spiral Assembly LH
(Superseded to 684-04107A-4021)

$94.99

$

In Stock, only 3 left!

0

42

Cub Cadet 738-04124A

Shear Pin .25 x 1.50 Gr. 2

$1.99

$

In Stock, Qty 20+

0

43

Cub Cadet 731-04870

Spacer

$4.99

$

In Stock, Qty 20+

0

44

Cub Cadet 918-0123A

Reducer Housing RH Ass'y

$55.99

$

In Stock, Qty 7

0

45

Cub Cadet 921-0338

Oil Seal 3/4 ID

$7.99

$

In Stock, Qty 20+

0

46

Cub Cadet 741-0661A

Flange Bearing
(Superseded to 741-0661B)

$11.99

$

In Stock, only 2 left!

0

47

Cub Cadet 918-0124A

Reducer Housing LH Ass'y

$55.99

$

In Stock, only 2 left!

0

48

Cub Cadet 736-3084

Fl. Washer .510 x 1.120 x .060

$5.49

$

In Stock, Qty 20+

0

49

Cub Cadet 741-0662

Flange Bearing

$10.99

$

In Stock, Qty 6

0

50

Cub Cadet 741-0663

Flange Bearing

$10.99

$

In Stock, Qty 15

0

51

Cub Cadet 790-00091-4021

Slide Shoe - Steel
(Superseded to 790-00091-0637)

$32.99

$

In Stock, only 4 left!

0

52

Cub Cadet 790-00181

Drift Cutter

Variations

Cub Cadet 790-00181-0637

BLADE-GUIDE (DRIFT - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-0691

BLADE-GUIDE (DRIFT - BLACK JACK (0691)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-0606

BLADE-GUIDE (DRIFT - MAJESTIC ORANGE (0606)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-0638

BLADE-GUIDE (DRIFT - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-0650

BLADE-GUIDE (DRIFT - RED METALLIC (0650)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-0662

BLADE-GUIDE (DRIFT - OYSTER GRAY (0662)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-0689

BLADE-GUIDE (DRIFT - POLO GREEN (0689)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-0709

BLADE-GUIDE (DRIFT - MASTERCRAFT GREEN (0709)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-0721

USE 790-00181-4044 BLADE-GUID - SEARS RED (0721)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-4021

BLADE-GUIDE - CUB YELLOW 2 (4021)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00181-4044

BLADE-GUIDE (DRIFT - CRAFTSMAN RED (4044)

$42.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 731-07525

Chute Adapter

$19.99

$

In Stock, only 2 left!

0

54

Cub Cadet 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg (w/plastic slide shoe)

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 710-0451

Carriage Bolt 5/16-18 x .75 (w/steel slide shoe)

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 720-04072A

Knob

$7.49

$

In Stock, Qty 20+

0

56

Cub Cadet 937-3000

Grease fitting

$4.99

$

In Stock, Qty 20+

0

57

Cub Cadet 710-0703

Carriage Screw 1/4-20 x .75 Gr. 5

$4.49

$

In Stock, Qty 15

0

58

Cub Cadet 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$4.49

$

In Stock, Qty 20+
