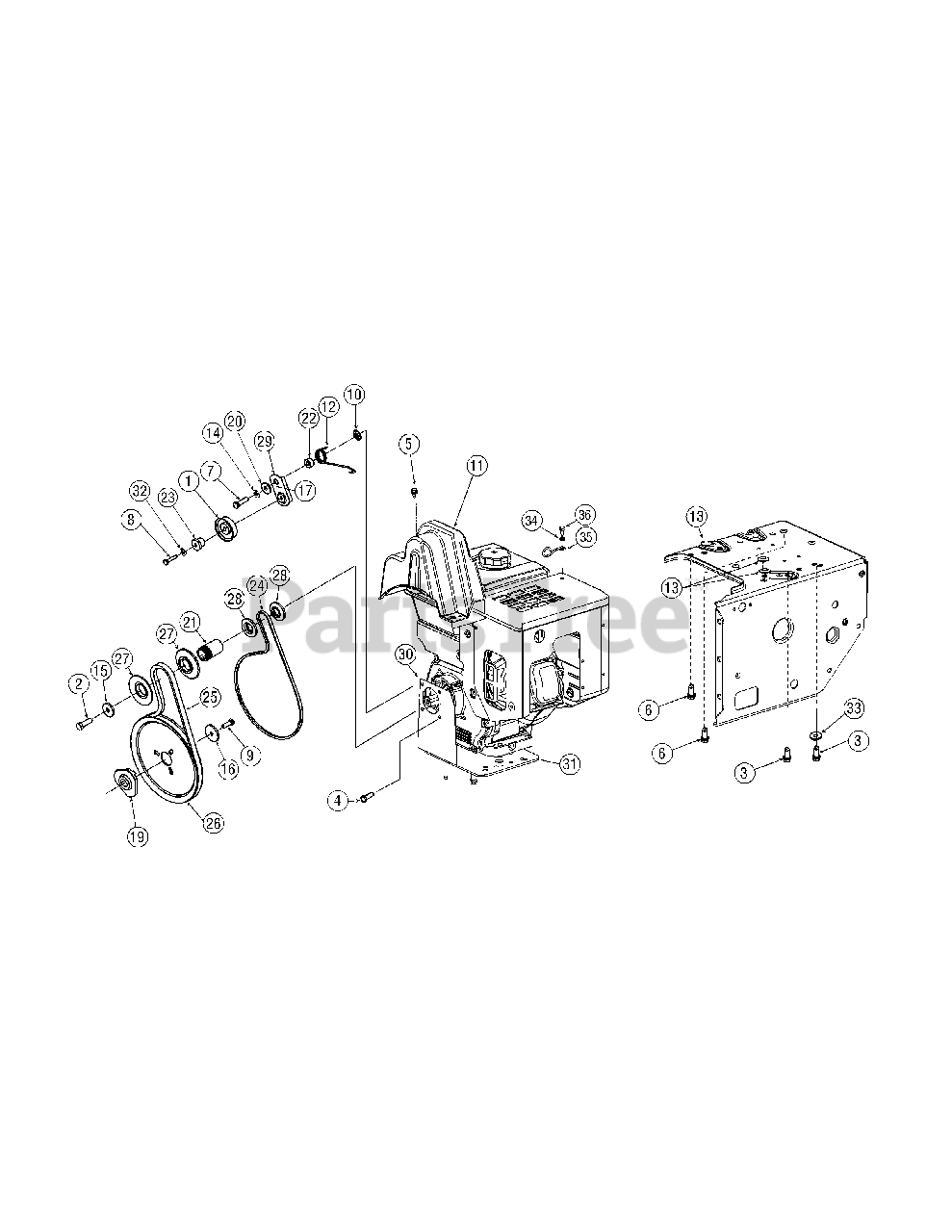

11530 C (31AH75KU596) - Cub Cadet 30" Snow Thrower (2010) Belt & Cover Assembly Parts Diagram

30" Snow Thrower

Belt & Cover Assembly Parts Diagram

  • Title

1

Cub Cadet 684-04169

Idler Pulley Assembly 1.917 OD

$31.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0191

Hex Screw 3/8-24 x 1.25

$4.49

$

In Stock, Qty 8

0

3

Cub Cadet 710-0502A

Hex Washer Screw 3/8-16 x 1.25

$6.49

$

In Stock, Qty 7

0

4

Cub Cadet 738-04439

Shoulder Screw .50 x .145: 5/16-24

$3.99

$

In Stock, Qty 7

0

5

Cub Cadet 710-0653

Hex Wash HD Tapp Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

6

Cub Cadet 710-0623

Hex Wash HD Tap Screw 3/8-16 x .75

$3.99

$

In Stock, Qty 6

0

7

Cub Cadet 710-0672

Hex HD. Cap Screw. 5/16-24 x 1.25 Lg.

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0809

Hex Bolt 1/4-20 x 1.25

$6.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1245B

Hex Bolt 5/16-24 x 0.875

$7.99

$

In Stock, only 4 left!

0

10

Cub Cadet 926-04012

Push Nut
(Superseded to 726-04012)

$

$

Not available

11

Cub Cadet 731-06401

Belt Cover
(Superseded to 753-09065)

$25.99

$

In Stock, only 1 left!

0

12

Cub Cadet 732-04308A

Torsion Spring .850 ID x .354" Lg.
(Superseded to 732-04308C)

$4.99

$

In Stock, Qty 12

0

13

Cub Cadet 735-04099

Plug 3/8"

$5.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 936-0119

L-Wash 5/16 ID

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0247

Flat Washer .40 ID x 1.25 OD x .160

$8.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0505

Flat Washer .34 x 1.50 x .150

$5.99

$

In Stock, Qty 6

0

17

Cub Cadet 737-0318-CRTG

Grease Arctic: EP

$23.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 748-04053A

Pulley Adapter

$20.99

$

In Stock, only 1 left!

0

20

Cub Cadet 748-04112B

Shld. Spacer .3175 x .5 x .1025

$3.99

$

In Stock, only 1 left!

0

21

Cub Cadet 750-04303

Spacer .875 ID x 1.185 OD

$16.99

$

In Stock, only 1 left!

0

22

Cub Cadet 750-04477A

Spacer .340 x .750 x .360" Lg.

$4.99

$

In Stock, Qty 6

0

23

Cub Cadet 750-04571

Spacer

$6.49

$

In Stock, Qty 6

0

24

Cub Cadet 954-04201A

V-Belt 3/8 x 35.68" Lg.

$34.99

$

In Stock, Qty 20+

0

25

Cub Cadet 954-04195

Belt .5 x 37.0" Lg.
(Superseded to 954-04195A)

$34.99

$

In Stock, Qty 20+

0

26

Cub Cadet 756-04109

Auger Pulley

$50.99

$

In Stock, only 3 left!

0

27

Cub Cadet 756-04113

Pulley Half

$12.99

$

In Stock, only 4 left!

0

28

Cub Cadet 756-04252

Pulley Half 3/8 V x 1.71 OD

$5.99

$

In Stock, only 3 left!

0

29

Cub Cadet 790-00208C

Wheel Drive Idler Bracket
(Superseded to 790-00208D)

$8.49

$

In Stock, only 2 left!

0

30

Cub Cadet 790-00332-0637

Cover Plate

$5.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 790-00322C-0637

Engine Plate

$27.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 936-0329

L-Wash 1/4 ID

$4.49

$

In Stock, Qty 12

0

33

Cub Cadet 736-0320

Flat Washer .38 x 1.38 x .125

$6.49

$

In Stock, Qty 9

0

34

Cub Cadet 936-0264

Flat Washer .330 ID x .630 OD x .0635

$6.49

$

In Stock, Qty 11

0

35

Cub Cadet 732-04677

Cable Guide

$8.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 710-04022

Hex Hd. Cap Screw. MB-1.25:20 Gr. 8
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0
