11530 C (31AH75KU596) - Cub Cadet 30" Snow Thrower (2010) Frame & Friction Wheel Parts Diagram

30" Snow Thrower

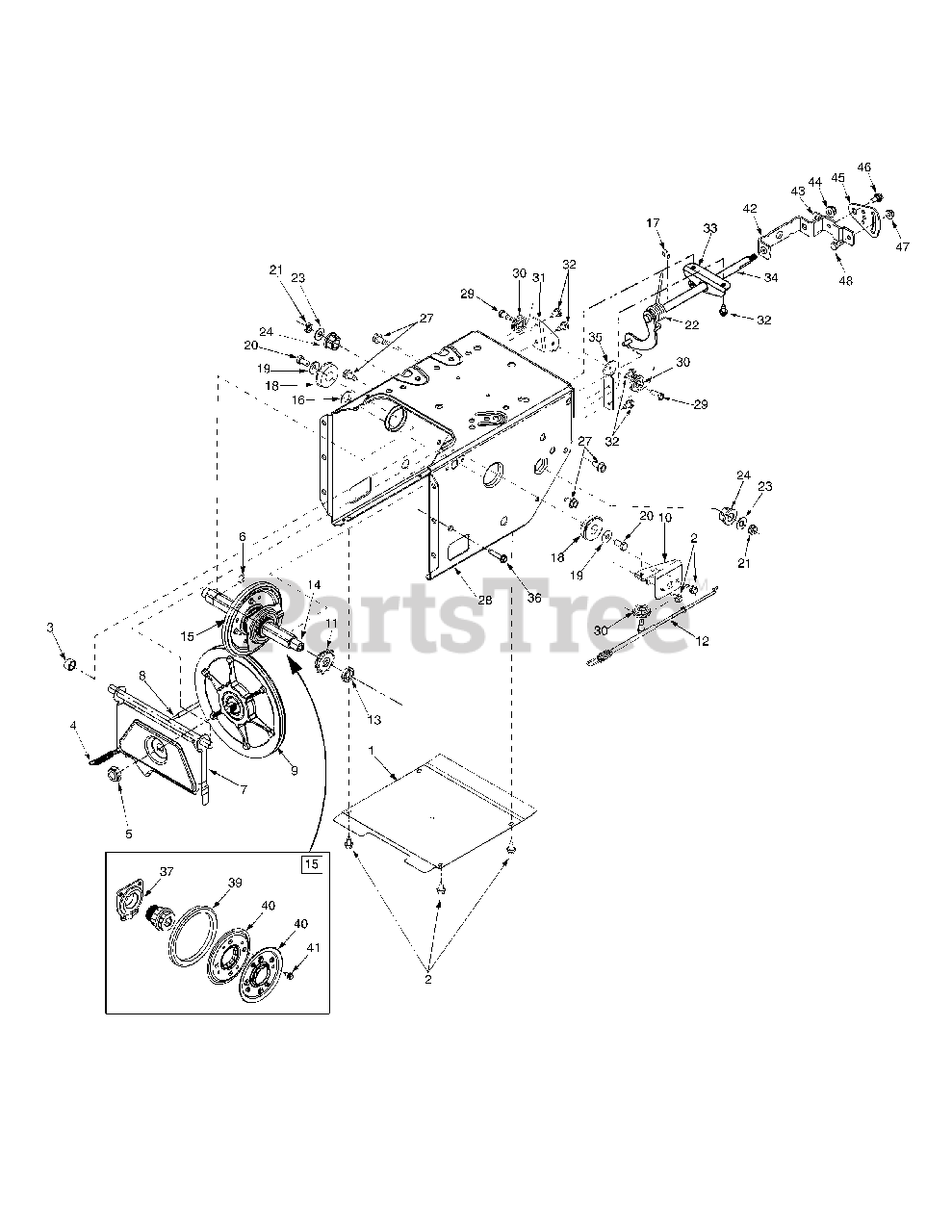

Frame & Friction Wheel Parts Diagram

  • Title

1

Cub Cadet 784-5648A

Frame Cover Track
(Superseded to 784-5648A-0637)

Variations

Cub Cadet 784-5648A-0483

Track Frame Cover - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-5648A-0638

Track Frame Cover - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-5648A-0662

Track Frame Cover - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-5648A-0687

COVER-FRAME:TRACK - PINE GREEN (0687)

$

$

Not available

Cub Cadet 784-5648A-4033

Track Frame Cover - FLINT MICA (4033)

$

$

Not available

Cub Cadet 784-5648A-0498

Track Frame Cover - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5648A-0637

Track Frame Cover - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5648A-0650

Track Frame Cover - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5648A-0665

Track Frame Cover - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 784-5648A-0689

Track Frame Cover - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5648A-0716

Track Frame Cover - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 784-5648A-0721

Track Frame Cover - SEARS RED (0721)

$

$

Not available

Cub Cadet 784-5648A-4044

Track Frame Cover - CRAFTSMAN RED (4044)

$

$

Not available

$

$

2

Cub Cadet 710-1652

Hex Wash Hd TT Screw. 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 750-04748

Spacer .525 ID x .75

$9.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 932-0264

Extension Spring 3/8 OD x 2.50

$5.49

$

In Stock, Qty 5

0

5

Cub Cadet 712-0417A

Flange Nut 5/8-18

$7.49

$

In Stock, Qty 20+

0

6

Cub Cadet 716-0136

Retaining Ring

$9.49

$

In Stock, Qty 10

0

7

Cub Cadet 684-04241A

Friction Wheel Support Brkt. Ass’y

Variations

Cub Cadet 684-04241A-0637

SUPPORT-FRCTN DISC - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 946-0898

Drive Clutch Cable (w/"Z" fitting)

$29.99

$

In Stock, only 2 left!

0

9

Cub Cadet 656-04055

Friction Wheel Disc Assembly
(Superseded to 656-04055A)

$63.99

$

In Stock, only 1 left!

0

10

Cub Cadet 790-00287-0637

Front Support Guide Bracket

$

$

Not available

11

Cub Cadet 913-04015

10T Sprocket #41 x .500

Note: with 3/4" hex shaft

$12.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 713-0413

10T Sprocket #41 x .500

Note: with 7/8" hex shaft

$13.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 946-0897

Auger Clutch Cable (w/Z fitting)

$26.99

$

In Stock, only 1 left!

0

13

Cub Cadet 950-0997

Spacer .625 ID x 1.0 OD x .23

$7.49

$

In Stock, only 2 left!

0

14

Cub Cadet 911-04928

Hex Track Shaft

Note: with 3/4" hex shaft

$46.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 911-1042A

Hex Track Shaft

Note: with 7/8" hex shaft

$

$

Not available

15

Cub Cadet 684-04159

Friction Wheel Assembly
(Superseded to 684-04159C)

Note: with 3/4" hex shaft

$101.99

$

In Stock, only 4 left!

0

15

Cub Cadet 984-04242

Friction Wheel Assembly
(Superseded to 984-04242B)

Note: with 7/8" hex shaft

$80.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 726-0221

Speed Nut

$6.49

$

In Stock, Qty 12

0

17

Cub Cadet 916-0104

E-ring

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 941-0563

Ball Bearing w/snap ring

$38.99

$

In Stock, only 3 left!

0

19

Cub Cadet 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0538

Hex L-Bolt 5/16-18 X .62

$4.99

$

In Stock, only 2 left!

0

21

Cub Cadet 912-0116

Hex Nut 3/8-24
(Superseded to 712-0116)

$

$

Not available

22

Cub Cadet 732-04514

Torsion Spring

$

$

Not available

23

Cub Cadet 936-0300

Flat Washer .406 ID x .875 OD x .059
(Superseded to 736-0300)

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 741-1111

Hex Flange Bearing

$10.99

$

In Stock, Qty 15

0

27

Cub Cadet 710-04484

Hex TT Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 684-04302B

Frame Assembly

Variations

Cub Cadet 684-04302B-0637

FRAME ASM-TRACK - POWDER BLACK (0637)

$77.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04302B-0638

FRAME ASM-TRACK - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 684-04302B-4021

FRAME ASM-TRACK - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 684-04302B-4033

FRAME ASM-TRACK - FLINT MICA (4033)

$

$

Not available

$77.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 738-0924A

Hex Shld.Screw.1/4-28 x .375

$7.49

$

In Stock, only 2 left!

0

30

Cub Cadet 756-0625

Cable Guide Roller

$9.99

$

In Stock, Qty 6

0

31

Cub Cadet 784-5688-0637

Drive Cable Guide Bracket

$

$

Not available

32

Cub Cadet 710-0599

Hex Wash S-Tapp Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 784-5590

Shift Bracket Frame

Variations

Cub Cadet 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 684-04307

Shift Rod Assembly

$

$

Not available

35

Cub Cadet 784-5687A-0637

Auger Clutch Cable Guide Bracket

$

$

Not available

36

Cub Cadet 710-0788

Hex Bolt 1/4-20 x 1.00

$7.49

$

In Stock, only 2 left!

0

37

Cub Cadet 618-0063A

Friction Wheel Bearing Assembly

$97.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 935-04054

Friction Wheel Rubber
(Superseded to 935-04054A)

$42.99

$

In Stock, Qty 20+

0

40

Cub Cadet 790-00174

Friction Plate
(Superseded to 790-00174C)

$15.99

$

In Stock, only 2 left!

0

41

Cub Cadet 710-0896

Hex Wash. Hd. TT Screw. 1/4-14 x .625

$4.49

$

In Stock, Qty 8

0

42

Cub Cadet 790-00218A-0637

Speed Selector Shift Bracket
(Superseded to 790-00218A)

$50.99

$

In Stock, only 2 left!

0

43

Cub Cadet 936-3015

Flat Washer

$4.49

$

In Stock, Qty 18

0

44

Cub Cadet 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 790-00217A-0637

Speed Selector Pivot Bracket
(Superseded to 790P01117)

$56.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 738-04184A

Shoulder Screw 1/4-20

$7.49

$

In Stock, Qty 20+

0

47

Cub Cadet 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 710-0751

Hex Bolt 1/4-20 x .62 Gr. 5

$4.49

$

In Stock, Qty 20+

0
