11530 GC (31AH9575897) - Columbia 30" Snow Thrower (2009) Auger & Housing Assembly Parts Diagram

30" Snow Thrower

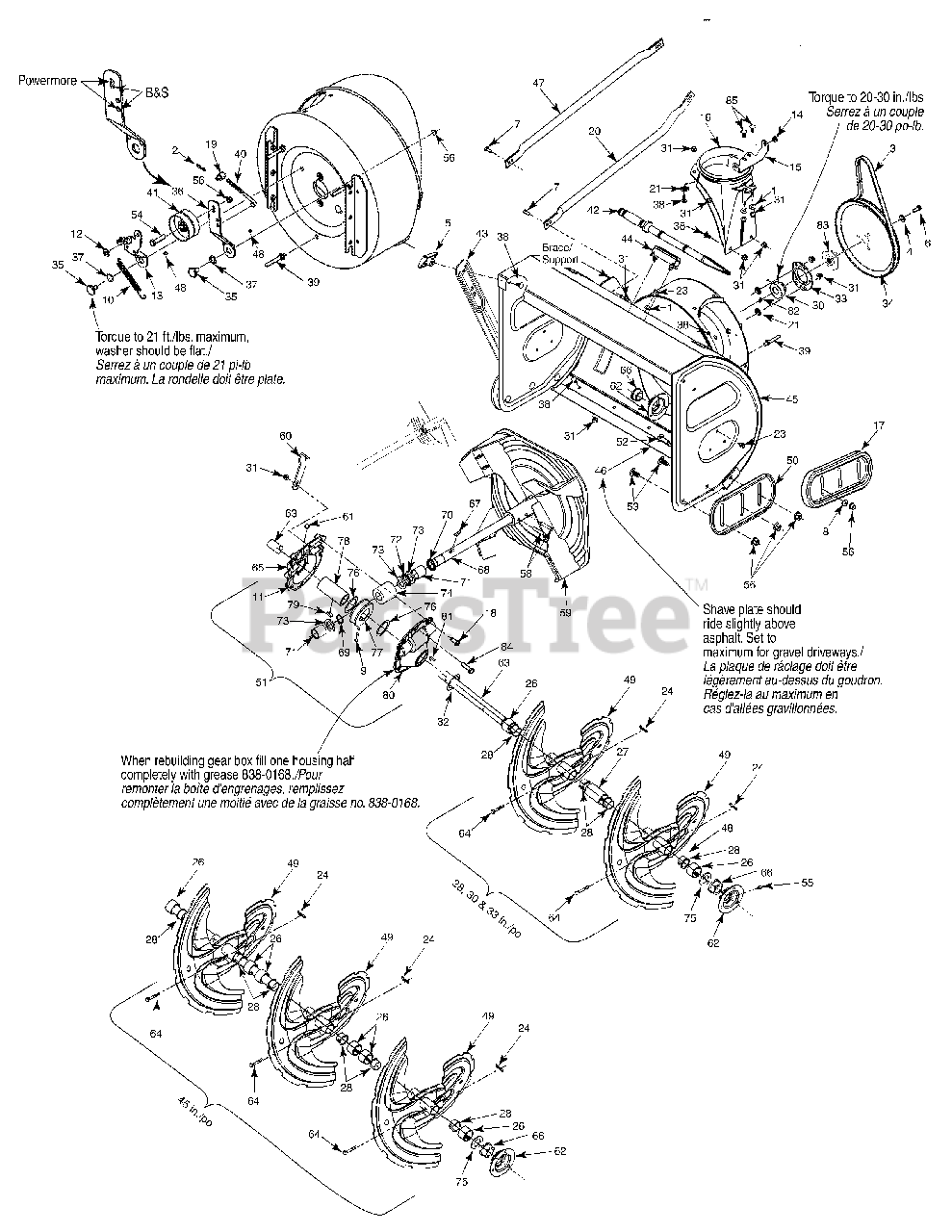

Auger & Housing Assembly Parts Diagram

  • Title

1

MTD 936-0159

Flat Washer .349 ID x .879 OD x .063
(Superseded to 736-0159)

$

$

Not available

2

MTD 914-0104

Int. Cotter Pin
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

3

MTD 954-04194A

V-Belt 1/2 x 44.60" Lg.

$22.99

$

In Stock, only 4 left!

0

4

MTD 736-0505

Flat Washer .34 x 1.5 x .150

$5.99

$

In Stock, Qty 6

0

5

MTD 720-04072A

Handle Knob Assembly

$6.49

$

In Stock, Qty 20+

0

6

MTD 710-1245B

Hex Screw 5/16-24 x .875 Gr. 8 Lock

$7.99

$

In Stock, only 4 left!

0

7

MTD 710-3008

Hex Hd Cap Scr. 5/16-18 x .75 Gr. 5

$3.99

$

In Stock, Qty 20+

0

8

MTD 736-0262

Flat Washer .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

9

MTD 737-0168A

Shell Alvania Grease (3 oz.)

$28.99

$

In Stock, only 1 left!

0

10

MTD 732-0858

Extension Spring .470 Dia. x 4.75

$23.99

$

In Stock, Qty 6

0

11

MTD n/a

Ultra Grey Loctite #5699

$

$

Currently unavailable

12

MTD 936-3008

Flat Washer .344 ID x .75 OD x .120

$6.49

$

In Stock, only 1 left!

0

13

MTD 918-0281A

Brake Bracket Ass’y (900 Series)

$60.99

$

In Stock, only 4 left!

0

14

MTD 941-0475

Plastic Bushing .380 ID

$3.99

$

In Stock, Qty 20+

0

15

MTD 790-00329-0637

Chute Brkt.

$15.99

$

Usually ships in 3-6 days

0

16

MTD 731-1696B

Chute Adapter

$84.99

$

In Stock, only 2 left!

0

18

MTD 710-1260A

Screw, 5/16-18 x .5

$3.49

$

In Stock, Qty 20+

0

19

MTD 911-0677

Adjustment Ferrule

$16.99

$

In Stock, only 4 left!

0

21

MTD 926-04012

Push-on Nut .25 dia.
(Superseded to 726-04012)

$

$

Not available

23

MTD 710-04484

Hex TT Screw 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

24

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

26

MTD 731-05163

Spacer 1.5 x 1.0 ID x 1.0" Lg.

$6.99

$

In Stock, Qty 20+

0

27

MTD 731-05162

Spacer 1.5 x 1.0 ID x 2.5" Lg.

$6.99

$

Usually ships in 3-6 days

0

28

MTD 741-0494

Flange Bushing 1.05 ID x 1.16 OD

$3.99

$

Usually ships in 3-6 days

0

30

MTD 941-04024

Self-Aligning Bearing .875 ID

$60.99

$

In Stock, only 1 left!

0

31

MTD 712-04063

Hex Flg. L-Nut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

32

MTD 736-3046A

Flat Washer 1.010 x 1.88 x .060

$8.49

$

Usually ships in 3-6 days

0

33

MTD 05244B

Bearing Housing

$22.99

$

In Stock, only 2 left!

0

34

MTD 756-04244A

Pulley .5 ID x 10 OD

$56.99

$

Usually ships in 3-6 days

0

35

MTD 938-0281

Shoulder Scr .625 Dia x .170
(Superseded to 738-0281)

$

$

Not available

36

MTD 784-0385D

Auger Idler Bracket

$27.99

$

In Stock, only 1 left!

0

37

MTD 736-0174

Wave Washer .625 ID x .885 OD x .015

$6.49

$

Usually ships in 3-6 days

0

38

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

39

MTD 710-04606A

Screw 5/16-18 x .43 (w/stud)

$6.99

$

In Stock, only 2 left!

0

40

MTD 747-0980A

Auger Idler Rod

$44.99

$

Usually ships in 3-6 days

0

41

MTD 756-0178

Flat Idler Pulley

$18.99

$

In Stock, only 4 left!

0

42

MTD 931-2643

Cleanout Tool

$18.99

$

In Stock, Qty 7

0

43

MTD 790-00181-0606

Drift Cutter

$37.99

$

Usually ships in 3-6 days

0

44

MTD 731-2635

Cleanout Tool Mount
(Superseded to 731-11421)

$10.99

$

In Stock, only 2 left!

0

45

MTD 684-04332-0606

Snowthrower Housing Ass’y 28"

$357.99

$

Usually ships in 3-6 days

0

45

MTD 684-04333-0606

Snowthrower Housing Ass’y 30"

$378.99

$

Usually ships in 3-6 days

0

45

MTD 684-04222-0606

Snowthrower Housing Ass’y 33"

$438.99

$

Usually ships in 3-6 days

0

46

MTD 784-5716B-0606

Shave Plate 28"

$45.99

$

In Stock, only 1 left!

0

46

MTD 784-5715B-0606

Shave Plate 30"
(Superseded to 784-5715B-0637)

$52.99

$

Usually ships in 3-6 days

0

46

MTD 784-5714B-0606

Shave Plate 33"
(Superseded to 784-5714B-0637)

$52.99

$

In Stock, only 1 left!

0

47

MTD 749-04384-0637

Support Tubing (w/steel panel)

$20.99

$

Usually ships in 3-6 days

0

48

MTD n/a

Arctic Grease

$

$

Currently unavailable

49

MTD 684-04151-0637

Augers LH

$249.99

$

Usually ships in 3-6 days

0

49

MTD 684-04152-0637

Augers RH

$249.99

$

Usually ships in 3-6 days

0

50

MTD 784-5697-0606

Reversible Slide Shoe

$42.99

$

In Stock, Qty 7

0

51

MTD 918-04514

Worm Gear Box Ass’y (w/ grease fitting)

$517.99

$

Usually ships in 3-6 days

0

52

MTD 710-3168

Carriage Bolt 3/8-16 x 1.00" (w/steel shoe)

$3.99

$

In Stock, Qty 20+

0

53

MTD 710-0389

Carriage Bolt 3/8-16 x .75" (w/steel shoe)

$4.49

$

In Stock, Qty 10

0

54

MTD 710-0347

Hex Hd. Cap Scr 3/8-16 x 1.75 Gr. 5

$4.99

$

In Stock, Qty 20+

0

55

MTD 937-3000

Grease fitting

$4.49

$

In Stock, Qty 20+

0

56

MTD 712-04065

Hex Flange L-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

58

MTD 915-0118

Spring Spirol Pin Heavy - 5/16 dia x 1.7
(Superseded to 715-0118)

$

$

Not available

59

MTD 684-0090B-0637

Blower Fan Ass’y Complete

$425.99

$

Usually ships in 3-6 days

0

60

MTD 790-00264A-0637

Gear Housing Support Bracket

$18.99

$

Usually ships in 3-6 days

0

61

MTD 721-0325

Barbed Plug

$4.49

$

In Stock, only 1 left!

0

62

MTD 784-0315A-0637

Bearing Housing (w/grease fitting)

$

$

Not available

63

MTD 738-04156

Auger Shaft - 28"

$149.99

$

Usually ships in 3-6 days

0

63

MTD 938-04157

Auger Shaft - 30"

$146.99

$

Usually ships in 3-6 days

0

63

MTD 938-04158

Auger Shaft - 33"

$177.99

$

Usually ships in 3-6 days

0

64

MTD 738-04155

Shear Pin 5/16-18 x 1.75

$1.99

$

In Stock, Qty 20+

0

65

MTD 918-0246

Gear Housing Half - RH

$

$

Not available

66

MTD 941-0170

Flange Bearing

$17.99

$

In Stock, only 2 left!

0

67

MTD 914-0126

#9 HI-Pro Key 3/16 x 3/4 Dia HT
(Superseded to 714-0126)

$4.49

$

In Stock, Qty 20+

0

68

MTD 711-04714

Auger Drive Shaft

$62.99

$

Usually ships in 3-6 days

0

69

MTD 716-0111

Snap Ring for .875 dia. shaft

$6.49

$

In Stock, Qty 11

0

70

MTD 921-0145

Oil seal for .875 ID Garlock (76 x 6133)

$9.49

$

In Stock, only 4 left!

0

71

MTD 941-0217

Sleeve Bearing .875 ID

$16.99

$

In Stock, Qty 11

0

72

MTD 741-0184

Thrust Bearing .88 ID x 1.44 OD x .078

$15.99

$

In Stock, only 4 left!

0

73

MTD 936-0291

Flat Washer .88 ID x 1.4 OD x .125

$10.99

$

In Stock, only 3 left!

0

74

MTD 917-0299

Worm Gear LH Double Thread

$115.99

$

In Stock, only 2 left!

0

75

MTD 950-04020

Spacer

$11.99

$

In Stock, only 1 left!

0

76

MTD 936-0266

Flat Washer 1.5 ID x 2.0 OD x .03
(Superseded to 736-0266)

$

$

Not available

77

MTD 917-1425

Worm Gear LH Dou ble Thread (Bronze)

$165.99

$

In Stock, only 2 left!

0

78

MTD 738-0275

Worm Gear Shaft

$104.99

$

Usually ships in 3-6 days

0

79

MTD 914-0135

#91 Woodruff Key 1/4 x 3/4 Dia.
(Superseded to 714-0135)

$

$

Not available

80

MTD 918-0435

Gear Housing Half LH (w/grease fitting hole)

$101.99

$

Usually ships in 3-6 days

0

81

MTD 914-0135

#91 Woodruff Key 1/4 x 3/4 Dia.
(Superseded to 714-0135)

$

$

Not available

83

MTD 748-04067A

Pulley Adapter .75 Dia. w/pins

$24.99

$

Usually ships in 3-6 days

0

84

MTD 710-0376

Hex Hd. Cap Scr. 5/16-18 x 1.0 Gr. 5

$3.99

$

In Stock, Qty 17

0

85

MTD 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg

$3.99

$

In Stock, Qty 20+

0
