11530 GC (31AH9775897) - Columbia 30" Snow Thrower (2014) Chute Parts Diagram

30" Snow Thrower

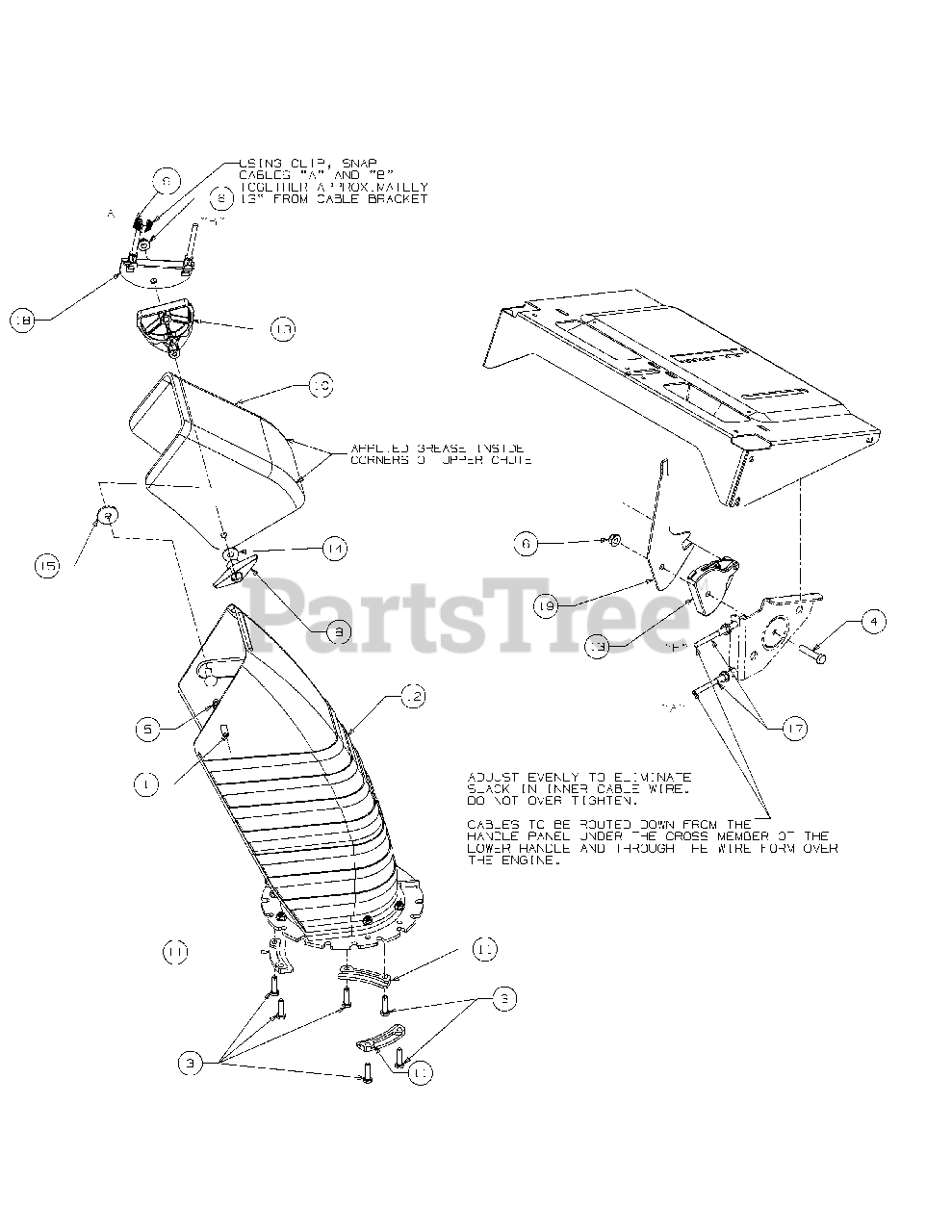

Chute Parts Diagram

  • Title

1

MTD 710-0276

Carriage Bolt 5/16-18 X 1.00

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0458

Bolt-Carriage 5/16

$4.49

$

In Stock, only 4 left!

0

3

MTD 710-0597

Screw-Hex 1/4-20 X

$3.99

$

In Stock, Qty 19

0

4

MTD 710-0805A

Screw-Hex Cap

$3.99

$

In Stock, Qty 8

0

5

MTD 710-0895

Screw-Hex Tap 1/4

$5.99

$

In Stock, Qty 20+

0

6

MTD 712-04063

Nut-Flglk 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-04064

Nut-Flglk

$3.99

$

In Stock, Qty 20+

0

8

MTD 920-0284

Knob-Wing Nut
(Superseded to 720-0284)

$6.49

$

In Stock, Qty 20+

0

9

MTD 731-07868

Clip-Cable

$3.49

$

In Stock, only 1 left!

0

10

MTD 731-0846C

Chute-Upper

$48.99

$

In Stock, only 1 left!

0

11

MTD 731-0851A

Chute Keeper Flange

$3.99

$

In Stock, Qty 20+

0

12

MTD 731-0903E

Lower Chute 6"

$40.99

$

In Stock, Qty 14

0

13

MTD 731-1313C

Cable Guide

$11.99

$

Usually ships in 3-6 days

0

14

MTD 936-0159

Washer-Fl
(Superseded to 736-0159)

$

$

Not available

15

MTD 936-0231

Washer-Fl
(Superseded to 736-0231)

$

$

Not available

16

MTD n/a

Grease

Note: (purchase locally)

$

$

Currently unavailable

17

MTD 946-0902

Cable-Chute

$45.99

$

Usually ships in 3-6 days

0

18

MTD 784-5594-0637

Bracket-Cable

$10.99

$

In Stock, only 1 left!

0

19

MTD 784-5604A-0637

Handle Bracket

$23.99

$

Usually ships in 3-6 days

0
