11530 PC (31AH55K5897) - Columbia 30" Snow Thrower (2011) Drive System Parts Diagram

30" Snow Thrower

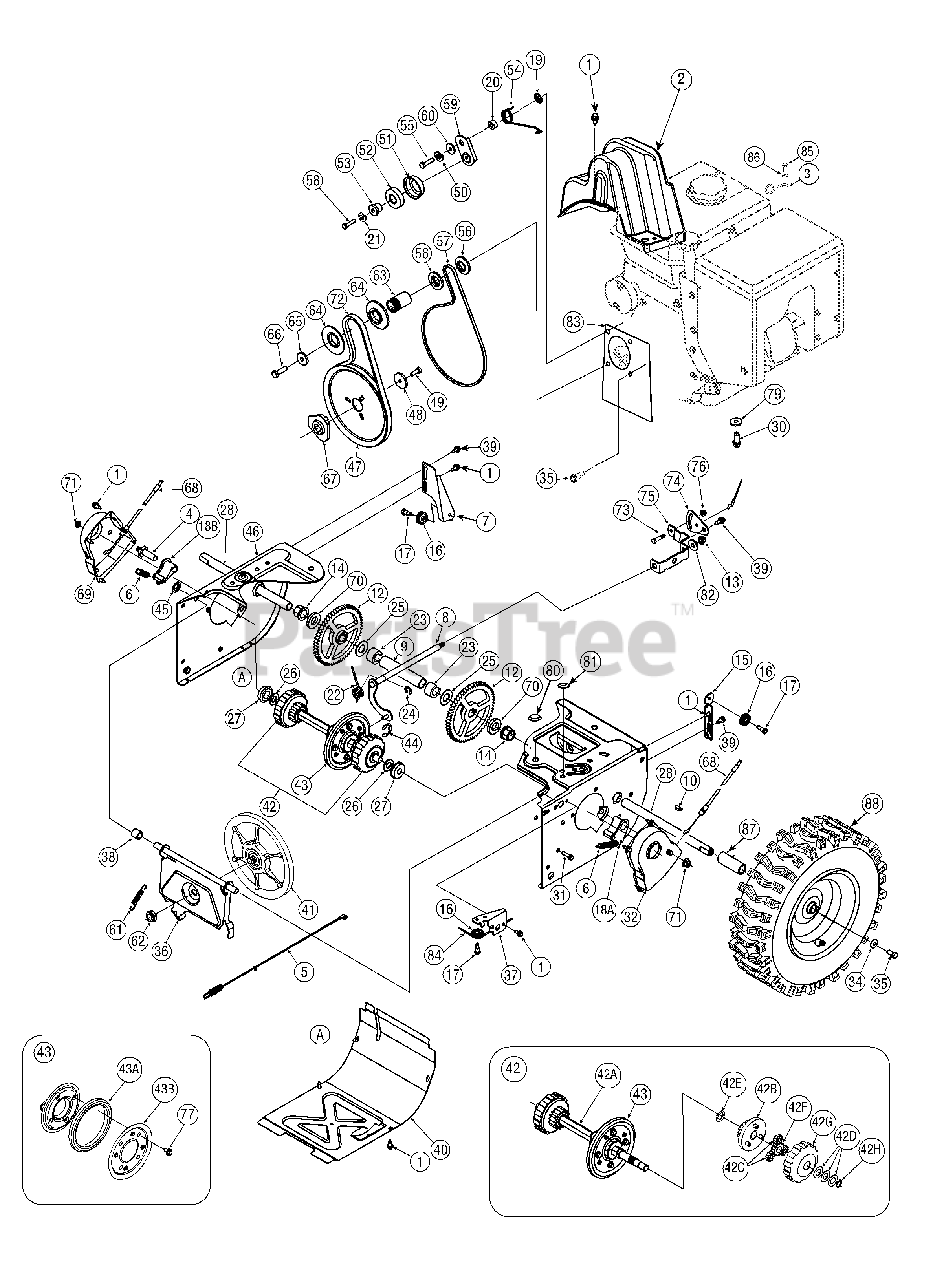

Drive System Parts Diagram

  • Title

1

MTD 710-1652

Hex Wash Hd TT Scr. 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

2

MTD 731-06401

Belt Cover (w/277 cc - 357 cc engines)
(Superseded to 753-09065)

Note: 478-SUA & 483-SUA Engine

$28.99

$

In Stock, only 2 left!

0

2

MTD 731-05353

Belt Cover (w/208 cc engine)
(Superseded to 731-05353B)

Note: 370-SUB-11 Engine

$

$

Not available

3

MTD 732-04677

Cable Control Wire

$9.99

$

Usually ships in 3-6 days

0

4

MTD 711-1268B

Drive Shaft Actuator

$10.99

$

Usually ships in 3-6 days

0

5

MTD 946-04229B

Drive Clutch Cable 44.83" Lg.

$22.99

$

In Stock, Qty 20+

0

6

MTD 732-04345

Extension Spring .5 OD x 1.71 Lg.

$10.99

$

In Stock, only 2 left!

0

7

MTD 790-00207B

Guide Bracket - Drive Cable
(Superseded to 790-03997)

$5.99

$

In Stock, Qty 5

0

8

MTD 684-04156A

Shift Rod Ass’y

$65.99

$

Usually ships in 3-6 days

0

9

MTD 750-04474

Axle Support Tube

$44.99

$

In Stock, only 2 left!

0

10

MTD 914-0126

#9 HI-Pro Key 3/16 x 3/4 Dia HT
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 20+

0

12

MTD 917-04210

Gear, 56T

$84.99

$

Usually ships in 3-6 days

0

13

MTD 712-04063

Flange Lock-Nut 5/16-18 Gr. F Nylon

$4.49

$

In Stock, Qty 20+

0

14

MTD 941-0245

Hex. Flange Bearing.751" ID

$10.99

$

In Stock, Qty 20+

0

15

MTD 790-00206A-0637

Guide Bracket - Auger Cable
(Superseded to 790-00206B)

$8.99

$

In Stock, only 1 left!

0

16

MTD 756-0625

Cable Guide Roller

$9.99

$

In Stock, Qty 6

0

17

MTD 738-0924A

Hex Shld.Scr.1/4-28 x .375

$7.49

$

In Stock, only 2 left!

0

18A

MTD 618-04288

Dogg Assembly - LH

$21.99

$

Usually ships in 3-6 days

0

18B

MTD 618-04287

Dogg Assembly - RH

$24.99

$

Usually ships in 3-6 days

0

19

MTD 926-04012

Push Nut
(Superseded to 726-04012)

$

$

Not available

20

MTD 750-04477A

Spacer .340 x .750 x .360" Lg.

$5.49

$

In Stock, Qty 6

0

21

MTD 936-0329

L-Wash 1/4 ID

$4.99

$

In Stock, Qty 16

0

22

MTD 732-04311

Torsion Spring .750 ID x .968" Lg.
(Superseded to 732-04311A)

$10.99

$

In Stock, only 2 left!

0

23

MTD 731-05297

Spacer

$10.99

$

In Stock, only 4 left!

0

24

MTD 916-0104

Retaining Ring

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0188

Flat Washer .760 ID x 1.49 OD

$4.99

$

In Stock, Qty 20+

0

26

MTD 736-0626

Flat Washer .580 x 1.125 x .080

$10.99

$

In Stock, only 2 left!

0

27

MTD 741-04076

Ball Bearing

$15.99

$

In Stock, Qty 12

0

28

MTD 938-04180

Axle

$75.99

$

Usually ships in 3-6 days

0

30

MTD 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.99

$

In Stock, Qty 20+

0

31

MTD 710-0788

Hex Bolt 1/4-20 x 1.00

$7.49

$

In Stock, only 2 left!

0

32

MTD 790-00185

Shaft Retainer - LH

Variations

MTD 790-00185-0606

RETAINER-HEX SHFT LH - MAJESTIC ORANGE (0606)

$22.99

$

Usually ships in 3-6 days

0

MTD 790-00185-0638

RETAINER-HEX SHFT LH - MTD/TROY-BILT RED (0638)

$22.99

$

Usually ships in 3-6 days

0

MTD 790-00185-0662

RETAINER-HEX SHFT LH - OYSTER GRAY (0662)

$22.99

$

Usually ships in 3-6 days

0

MTD 790-00185-0691

RETAINER:SHF:DR/ACTR LH - BLACK JACK (0691)

$30.99

$

Usually ships in 3-6 days

0

MTD 790-00185-0709

RETAINER:SHF:DR/ACTR LH - MASTERCRAFT GREEN (0709)

$22.99

$

Usually ships in 3-6 days

0

MTD 790-00185-0721

RETAINER-HEX SHFT LH - SEARS RED (0721)

$22.99

$

Usually ships in 3-6 days

0

MTD 790-00185-4021

RETAINER-HEX SHFT LH - CUB YELLOW 2 (4021)

$32.99

$

Usually ships in 3-6 days

0

MTD 790-00185-4044

RETAINER-HEX SHFT LH - CRAFTSMAN RED (4044)

$22.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

34

MTD 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.99

$

In Stock, Qty 20+

0

35

MTD 738-04439

Shoulder Screw .50 x .145: 5/16-24

$4.49

$

In Stock, only 4 left!

0

36

MTD 684-04154B

Friction Wheel Support Brkt Ass’y

Variations

MTD 684-04154B-0637

BRACKET ASM-SUPPORT - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

37

MTD 790-00096-0637

Auger Cable Guide Bracket
(Superseded to 790-00096B-0637)

$9.99

$

Usually ships in 3-6 days

0

38

MTD 748-0190

Spacer .513 ID x 1.0

$6.99

$

In Stock, Qty 6

0

39

MTD 738-04184A

Shoulder Screw .373 x .105:TT 1/4-20

$7.49

$

In Stock, Qty 20+

0

40

MTD 790-00316-0637

Frame Cover

$50.99

$

In Stock, only 3 left!

0

41

MTD 656-04055

Friction Wheel Disc Assembly
(Superseded to 656-04055A)

$63.99

$

In Stock, only 1 left!

0

42

MTD 918-04322A

Drive Shaft Assembly (w/o Friction Wheel Ass'y)

$524.99

$

Usually ships in 3-6 days

0

42A

MTD 711-04416A

Hex Drive Shaft (500)

$135.99

$

Usually ships in 3-6 days

0

42B

MTD 918-04284

Planetary Carrier Ass'y

$71.99

$

Usually ships in 3-6 days

0

42C

MTD 717-1209A

Gear 12T

$5.49

$

In Stock, only 1 left!

0

42D

MTD 936-0502

Flat Washer .58 x 1.12 x .02

$7.49

$

Usually ships in 3-6 days

0

42E

MTD 936-0336

Flat Washer 5/8 ID x 1.0 OD

$4.99

$

In Stock, Qty 20+

0

42F

MTD 717-1210A

Gear 18T

$9.49

$

Usually ships in 3-6 days

0

42G

MTD 918-04285

Ring Planetary Gear Ass'y (500)

$72.99

$

In Stock, only 1 left!

0

42H

MTD 716-0194

Retaining Ring 1.56 diam.

$4.49

$

In Stock, only 3 left!

0

43

MTD 684-04159

Friction Wheel Assembly
(Superseded to 684-04159C)

$101.99

$

In Stock, only 4 left!

0

43A

MTD 935-04054

Friction Wheel Rubber
(Superseded to 935-04054A)

$42.99

$

In Stock, Qty 20+

0

43B

MTD 790-00174

Friction Plate
(Superseded to 790-00174C)

$15.99

$

In Stock, only 2 left!

0

44

MTD 716-0136

Retainer Ring

$9.49

$

In Stock, Qty 10

0

45

MTD 726-0221

Cap Speed Nut 1/4 Rod

$6.49

$

In Stock, Qty 12

0

46

MTD 790-00183B-0637

Wheel Drive Frame
(Superseded to 790-00183E-0637)

$112.99

$

Usually ships in 3-6 days

0

47

MTD 756-04109

Auger Pulley

$57.99

$

In Stock, only 2 left!

0

48

MTD 736-0505

Flat Washer .34 x 1.50 x .150

$6.99

$

In Stock, Qty 6

0

49

MTD 710-1245B

Hex Bolt 5/16-24 x 0.875

$8.99

$

In Stock, Qty 13

0

50

MTD 936-0119

L-Wash 5/16 ID

$4.99

$

In Stock, Qty 20+

0

51

MTD 790-00230

Bearing Sleeve

$7.99

$

In Stock, only 2 left!

0

52

MTD 941-0919

Ball Bearing 20 x 47 x 14:6204:DS
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

53

MTD 750-04571

Spacer

$7.49

$

In Stock, Qty 6

0

54

MTD 732-04308A

Torsion Spring .850 ID x .354" Lg.
(Superseded to 732-04308C)

$5.49

$

In Stock, only 2 left!

0

55

MTD 710-0672

Hex HD. Cap Scr. 5/16-24 x 1.25 Lg.

$4.99

$

In Stock, Qty 9

0

56

MTD 756-04252

Pulley Half

$6.99

$

In Stock, only 2 left!

0

57

MTD 954-04260

Belt 3/8 x 34.13" Lg.(w/208 cc engine)

Note: 370-SUB-11 Engine

$30.99

$

In Stock, Qty 20+

0

57

MTD 954-04201A

Belt 3/8 x 35.68" Lg.(w/277cc - 357cc engines)

Note: 478-SUA & 483-SUA Engine

$36.99

$

In Stock, only 2 left!

0

58

MTD 710-0809

Hex Bolt 1/4-20 x 1.25

$7.49

$

In Stock, Qty 7

0

59

MTD 790-00208C

Wheel Drive Idler Bracket
(Superseded to 790-00208D)

$9.49

$

In Stock, only 2 left!

0

60

MTD 748-04112B

Shoulder Spacer

$4.49

$

In Stock, Qty 5

0

61

MTD 932-0264

Extension Spring 3/8 OD x 2.50

$5.49

$

In Stock, Qty 5

0

62

MTD 712-0417A

Jam L-Nut 5/8-18 Gr. 5 Nylon

$7.49

$

In Stock, Qty 20+

0

63

MTD 750-04303

Spacer .875 ID x 1.185 OD

$18.99

$

In Stock, only 2 left!

0

64

MTD 756-04113

Pulley Half
(Superseded to 756-06563)

$4.49

$

In Stock, only 2 left!

0

65

MTD 736-0247

Flat Washer .40 ID x 1.25 OD x .160

$10.99

$

In Stock, Qty 20+

0

66

MTD 710-0191

Hex Screw 3/8-24 x 1.25

$4.99

$

In Stock, Qty 7

0

67

MTD 748-04053A

Pulley Adapter

$23.99

$

In Stock, only 1 left!

0

68

MTD 946-0956B

Steering Cable
(Superseded to 946-0956C)

$24.99

$

In Stock, Qty 5

0

69

MTD 790-00186

Shaft Retainer - RH

Variations

MTD 790-00186-0606

RETAINER-HEX SHFT RH - MAJESTIC ORANGE (0606)

$21.99

$

Usually ships in 3-6 days

0

MTD 790-00186-0638

RETAINER-HEX SHFT RH - MTD/TROY-BILT RED (0638)

$25.99

$

Usually ships in 3-6 days

0

MTD 790-00186-0662

RETAINER-HEX SHFT RH - OYSTER GRAY (0662)

$24.99

$

Usually ships in 3-6 days

0

MTD 790-00186-0691

RETAINER:SHF:DR/ACTR RH - BLACK JACK (0691)

$27.99

$

Usually ships in 3-6 days

0

MTD 790-00186-0709

RETAINER:SHF:DR/ACTR RH - MASTERCRAFT GREEN (0709)

$21.99

$

Usually ships in 3-6 days

0

MTD 790-00186-0721

RETAINER-HEX SHFT RH - SEARS RED (0721)

$21.99

$

Usually ships in 3-6 days

0

MTD 790-00186-4021

RETAINER-HEX SHFT RH - CUB YELLOW 2 (4021)

$25.99

$

Usually ships in 3-6 days

0

MTD 790-00186-4044

RETAINER-HEX SHFT RH - CRAFTSMAN RED (4044)

$21.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

70

MTD 750-0767

Axle Spacer

$6.49

$

Usually ships in 3-6 days

0

71

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$4.49

$

In Stock, Qty 20+

0

72

MTD 954-04050

Belt .5 x 35.0" Lg. (w/208 cc engine)
(Superseded to 954-04050A)

Note: 370-SUB-11 Engine

$28.99

$

In Stock, Qty 13

0

72

MTD 954-04195

Belt .5 x 37.0 (w/277cc - 357cc engines)
(Superseded to 954-04195A)

Note: 478-SUA & 483-SUA Engine

$36.99

$

In Stock, Qty 5

0

73

MTD 710-0751

Hex Bolt 1/4-20 x .62 Gr. 5

$4.49

$

In Stock, Qty 20+

0

74

MTD 790-00217A-0637

Pivot Bracket
(Superseded to 790P01117)

$56.99

$

Usually ships in 3-6 days

0

75

MTD 790-00218A-0637

Shift Bracket
(Superseded to 790-00218A)

$50.99

$

In Stock, only 2 left!

0

76

MTD 712-04064

Flange Lock-Nut 1/4-20 Gr. F Nylon

$4.49

$

In Stock, Qty 20+

0

77

MTD 710-0896

Hex Wash. Hd. TT Scr. 1/4-14 x .625

$4.49

$

In Stock, Qty 8

0

79

MTD 736-0320

Flat Washer .38 x 1.38 x .125 (Rear left hole)

$7.49

$

In Stock, Qty 5

0

80

MTD 735-04100

Plug 1/2"

$6.49

$

Usually ships in 3-6 days

0

81

MTD 735-04099

Plug 3/8"

$6.49

$

Usually ships in 3-6 days

0

82

MTD 936-3015

Flat Washer .469 x .875 x .105

$4.49

$

In Stock, Qty 18

0

83

MTD 790-00289A-0637

Cover Plate (optional)
(Superseded to 790-00289B-0637)

$28.99

$

Usually ships in 3-6 days

0

84

MTD 946-04230A

Auger Clutch Cable 47.23" Lg.
(Superseded to 946-04230B)

$24.99

$

In Stock, Qty 14

0

85

MTD 710-04022

Hex. Hd. Cap Scr. M8-1.25:20 Gr. 8
(Superseded to 710-1681)

$6.49

$

Usually ships in 3-6 days

0

86

MTD 936-0264

Flat Washer .330 ID x .630 OD x .0635

$7.49

$

In Stock, Qty 11

0

87

MTD 731-04873

Spacer

$10.99

$

In Stock, only 2 left!

0

88

MTD 634-04147A-0911

WHEEL ASS’Y 15 x 5 x 6 LH X-Trac Gray

Note: 24" Models

$

$

Not available

88

MTD 634-04148A-0911

WHEEL ASS’Y 15 x 5 x 6 RH X-Trac Gray
(Superseded to 634Z07718-0662)

Note: 24" Models

$206.99

$

Usually ships in 3-6 days

0

88

MTD 734-04012-0901

TIRE 15 x 5 x 6

Note: 24" Models, Not shown

$106.99

$

Usually ships in 3-6 days

0

88

MTD 634-04172A-0662

RIM - Gray

Note: 24" Models, Not shown

$57.99

$

Usually ships in 3-6 days

0

88

MTD 634-04145-0911

WHEEL ASS’Y 16 x 4.8 x 8 LH X-Trac - Gray

Note: 26" Models

$285.99

$

Usually ships in 3-6 days

0

88

MTD 634-04146-0911

WHEEL ASS’Y 16 x 4.8 x 8 RH X-Trac - Gray

Note: 26" Models

$283.99

$

Usually ships in 3-6 days

0

88

MTD 734-2038-0901

TIRE 16 x 4.8 x 8

Note: 26" Models, Not shown

$101.99

$

Usually ships in 3-6 days

0

88

MTD 634-04173-0662

RIM - Gray

Note: 26" Models, Not shown

$88.99

$

Usually ships in 3-6 days

0

88

MTD 634-04136-0911

WHEEL ASS’Y 16 x 6.5 x 8 LH X-Trac - Gray
(Superseded to 634Z07695-0662)

Note: 28" & 30" Models

$238.99

$

Usually ships in 0 days

0

88

MTD 634-04137-0911

WHEEL ASS’Y 16 x 6.5 x 8 RH X-Trac - Gray
(Superseded to 634Z07696-0662)

Note: 28" & 30" Models

$238.99

$

Usually ships in 0 days

0

88

MTD 734-2031

TIRE 16 x 6.5 x 8

Note: 28" & 30" Models, Not shown

$176.99

$

Usually ships in 3-6 days

0

88

MTD 634-04174-0662

RIM - Gray

Note: 28" & 30" Models, Not shown

$71.99

$

Usually ships in 3-6 days

0
