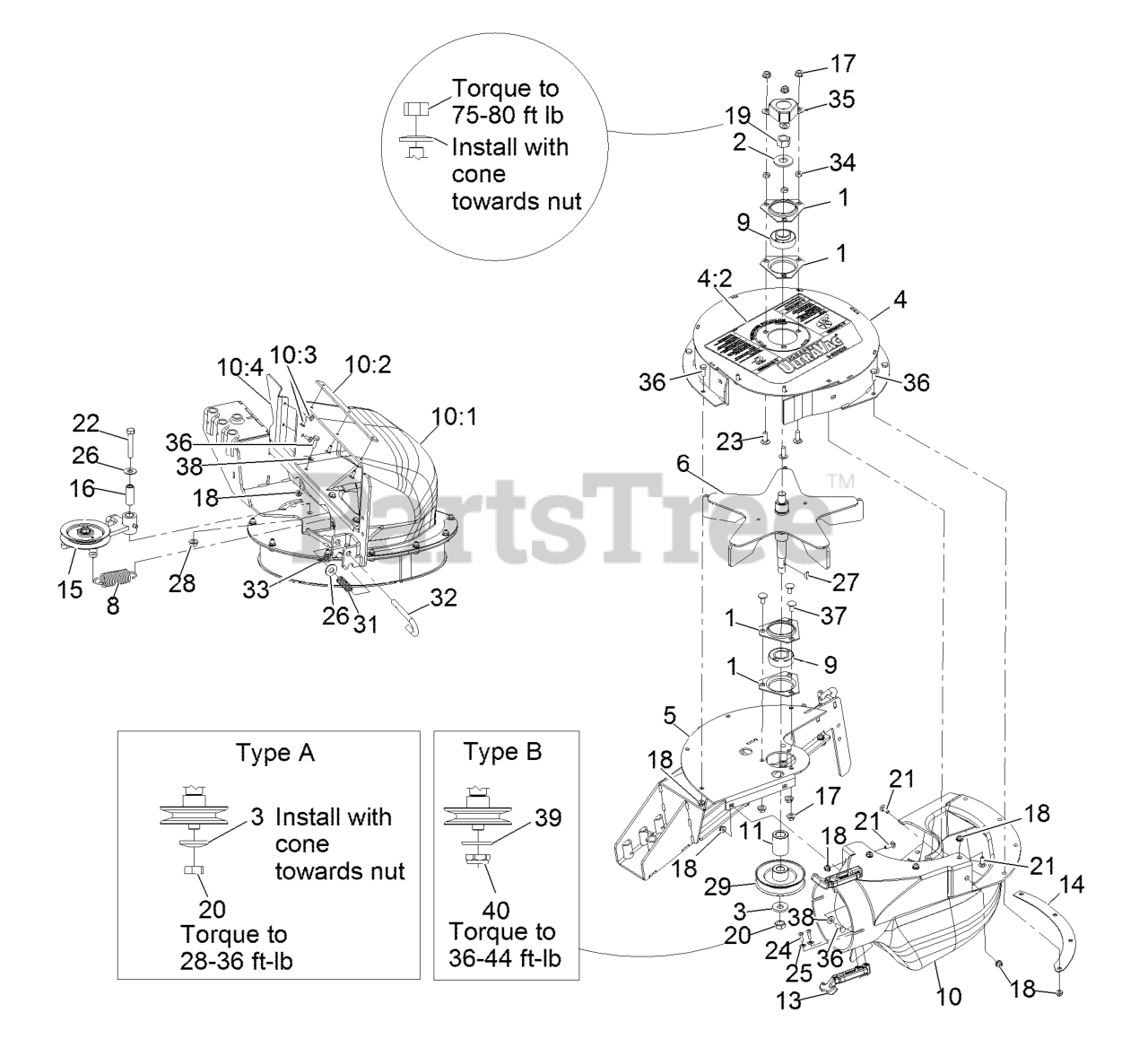

116-3001 - Exmark Ultra Vac Bagger for Pioneer Mower (SN: 313000000 - 313999999) (2013) > Parts Diagrams (15) > Blower Assembly

  • Title
1-513013

1

Housing-Flange

Part# 1-513013

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.42

1-513208

2

Washer-Spring Disc 5/8

Part# 1-513208

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

1-513435

3

Washer-Spring Disc 1/2

Part# 1-513435

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.60

116-4446

4

Upper Housing W/Decal

Part# 116-4446

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $283.37

116-4935

4:2

Decal-Blower Warning

Part# 116-4935

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.82

116-6484-03

5

Blower Frame Asm [Black]

Part# 116-6484-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $336.73

103-3815

6

Impeller

Part# 103-3815

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $210.74

1-653331

8

Spring

Part# 1-653331

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.93

1-653346

9

Bearing

Part# 1-653346

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $48.03

116-6487

10

Asm-Small Blower Chute

Part# 116-6487

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $240.18

116-4991

10:1

Chute-Blower Small

Part# 116-4991

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $231.94

103-4752-03

10:2

Plate,Reinforcement Small

Part# 103-4752-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.40

114439

10:3

Rivet

Part# 114439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

116-6486-03

10:4

Plate-Filler

Part# 116-6486-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.76

1-653365

11

Spacer

Part# 1-653365

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.00

103-4080

13

Latch-Rubber

Part# 103-4080

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.15

116-4434-03

14

Plate-Backing, Blower

Part# 116-4434-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.11

Asm, Idler

15

Asm, Idler

Part# Asm, Idler

Not available

1-603044

16

Bushing

Part# 1-603044

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.48

32128-20

17

Nut-Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

104-7201

18

Nut-Nyloc 1/4-20 Flg

Part# 104-7201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.08

3219-6

19

Nut-Hex 5/8-18

Part# 3219-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.99

3220-5

20

Nut-Jam 1/2-20

Part# 3220-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.20

3229-1

21

Bolt-Carriage 1/4-20 X 3/4

Part# 3229-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.62

323-11

22

Screw-Hh 3/8-16 X 2 1/4

Part# 323-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

3230-10

23

Bolt-Carriage 5/16-18 X 7/8

Part# 3230-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.73

3290-500

24

Screw-Pph #10-24 X 5/8

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

3256-14

25

Washer-#10 Std

Part# 3256-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.13

3256-4

26

Washer-3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.20

3257-32

27

Key-Woodruff 3/16 X 5/8

Part# 3257-32

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.91

3290-357

28

Nut-Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

103-1047

29

Sheave-Blower

Part# 103-1047

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $52.54

109-7694

31

Spring-Compression

Part# 109-7694

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

116-4356

32

Pin-Latch

Part# 116-4356

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.30

3290-307

33

Pin-Hair

Part# 3290-307 (Superseded to 1-806003)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

3218-2

34

Nut-Jam 5/16-18

Part# 3218-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.31

116-4776

35

Cover-Nut

Part# 116-4776

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.18

321-4

36

Screw-Hh 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

3230-18

37

Bolt-Carriage 5/16-18 X 5/8

Part# 3230-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

3256-22

38

Washer-1/4 SAE

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.13

3256-26

39

Washer-1/2 SAE

Part# 3256-26

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

3296-28

40

Nut-Lock, Ni

Part# 3296-28

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.32
