116-3001 - Exmark Ultra Vac Bagger for Pioneer Mower (SN: 313000000 - 313999999) (2013)

Ultra Vac Bagger for Pioneer Mower

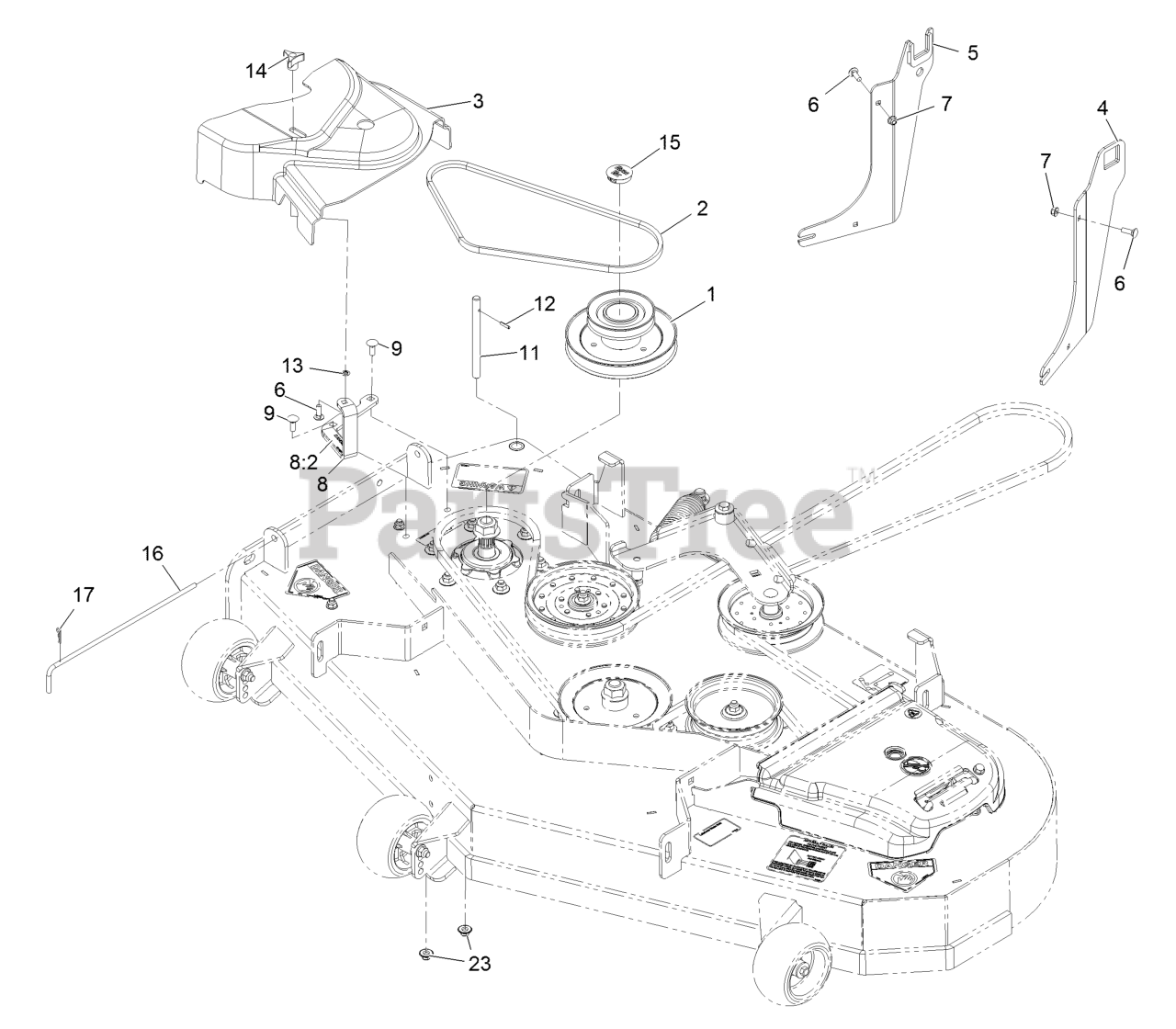

116-3001 - Exmark Ultra Vac Bagger for Pioneer Mower (SN: 313000000 - 313999999) (2013) > Parts Diagrams (15) > Completing Kit No. 116-4884

  • Title
116-4629

1

Jackshaft-Uv Drive 52 Splined

Part# 116-4629

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $181.11

1-653333

2

Belt, Blower 48"Dk

Part# 1-653333

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.90

116-4685

3

Cover-Belt, Uv 52

Part# 116-4685

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $77.69

116-4862-03

4

Bracket Asm, Lh

Part# 116-4862-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $59.82

116-4863-03

5

Bracket Asm, Rh

Part# 116-4863-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $59.82

3230-2

6

Bolt-Carriage 5/16-18 X 1

Part# 3230-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.05

104-8300

7

Nut-Nyloc 5/16-18 Flg

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

116-7036

8

Asm-Cvr Brkt W/Decal

Part# 116-7036

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $48.53

98-5954

8:2

Decal-Cover, Missing

Part# 98-5954

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.87

3231-2

9

Bolt-Carriage 3/8-16 X 1

Part# 3231-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.36

1-353050

11

Shaft-Catcher, Grass

Part# 1-353050

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.40

1-806323

12

Rollpin 3/16 X 7/8

Part# 1-806323

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

109-5667

13

Ring-Bolt Retaining

Part# 109-5667

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

1-323385

14

Knob-3 Prong

Part# 1-323385

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

103-1279

15

Plug, Black Nylon 1.75

Part# 103-1279

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.23

109-3458

16

Pin,Chute Pivot

Part# 109-3458

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.29

1-806003

17

Hairpin-Cotter

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

109-6658

23

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11
