116-3001 - Exmark Ultra Vac Bagger for Pioneer Mower (SN: 404314159 - 406294344) (2019)

Ultra Vac Bagger for Pioneer Mower

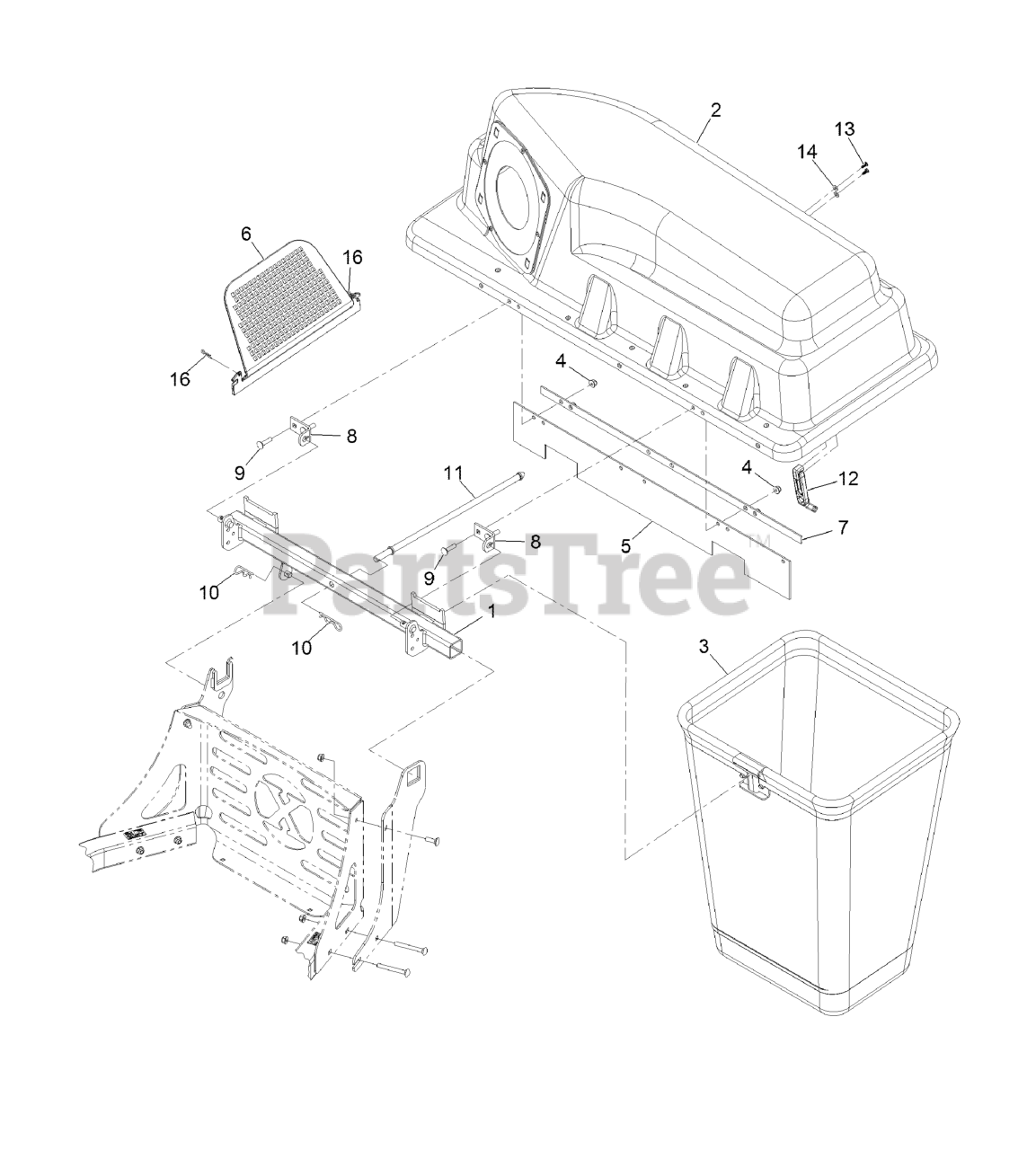

116-3001 - Exmark Ultra Vac Bagger for Pioneer Mower (SN: 404314159 - 406294344) (2019) > Parts Diagrams (15) > Bagger Top and Mounting Assembly

  • Title
116-4783-03

1

FRAME PIVOT ASM

Part# 116-4783-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $126.29

116-4537

2

BAGGER HOOD ASM

Part# 116-4537

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $335.55

116-0754

3

BAG AND FRAME ASM

Part# 116-0754

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $130.68

104-8300

4

NUT-HF, NI

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

116-4126

5

SEAL

Part# 116-4126

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.36

112-3993

6

SCREEN-BAGGER

Part# 112-3993

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.18

116-4127-03

7

PLATE-BACKING

Part# 116-4127-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.29

112-3987

8

BRACKET-PIVOT, HOPPER

Part# 112-3987

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.63

3230-3

9

Bolt-Carriage 5/16-18 X 1 1/4

Part# 3230-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.97

3290-355

10

PIN-HAIR

Part# 3290-355

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.23

116-6491

11

ROD-HOLD DOWN, HOOD

Part# 116-6491

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $40.02

116-4992

12

LATCH-RUBBER

Part# 116-4992

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.31

107-7461

13

SCREW-PLASTITE

Part# 107-7461

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

3256-77

14

WASHER-FLAT

Part# 3256-77

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.01

3290-307

16

1-806003

Part# 3290-307 (Superseded to 1-806003)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22
