116-3001 - Exmark Ultra Vac Bagger for Pioneer Mower (SN: 404314159 - 406294344) (2019)

Ultra Vac Bagger for Pioneer Mower

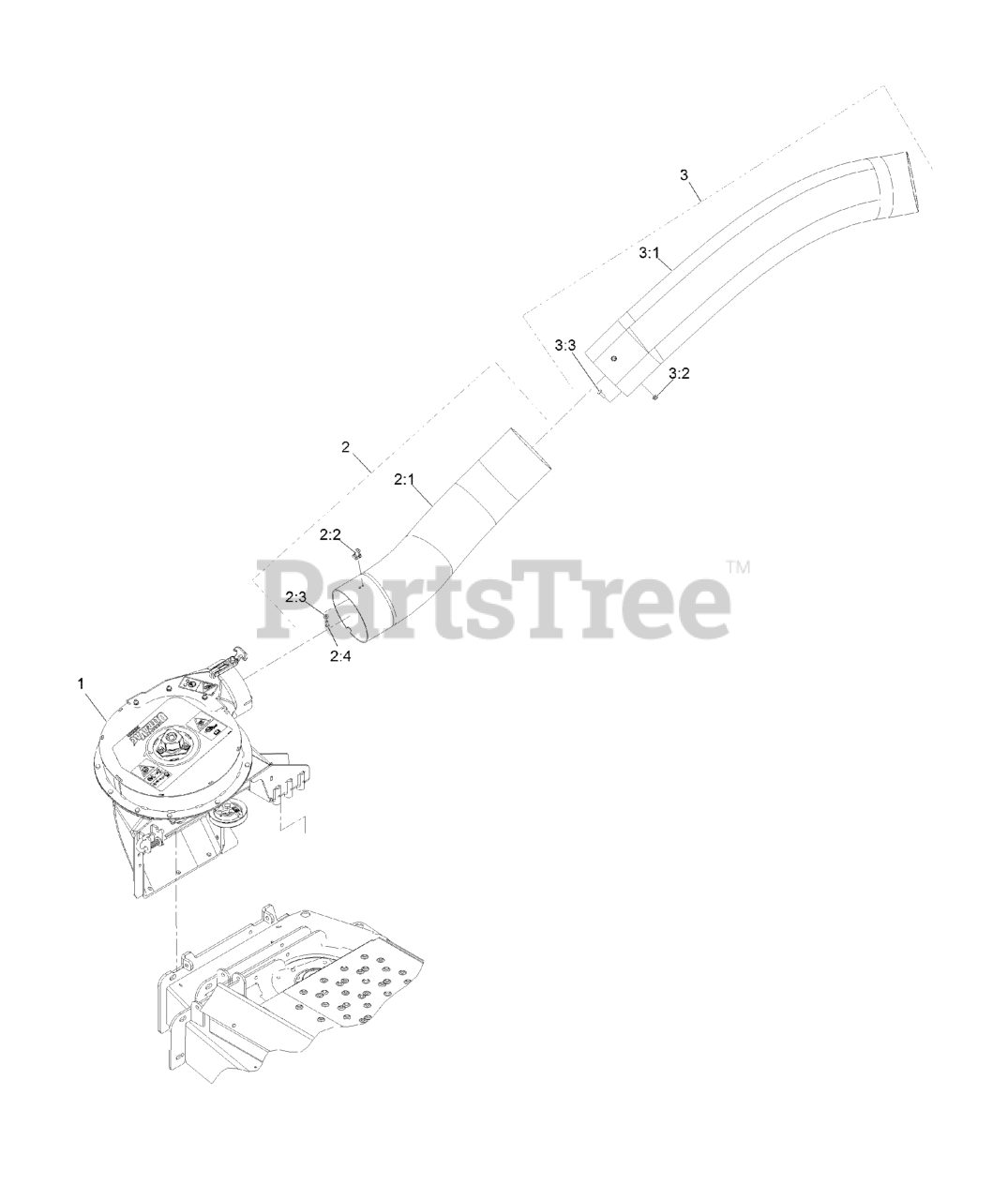

116-3001 - Exmark Ultra Vac Bagger for Pioneer Mower (SN: 404314159 - 406294344) (2019) > Parts Diagrams (15) > Blower and Tubes Assembly

  • Title
116-6495

1

ASM-BLOWER UV E SERVICE

Part# 116-6495

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1245.69

116-4128

2

LOWER TUBE ASM

Part# 116-4128

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $182.48

116-4495

2:1

TUBE-LOWER

Part# 116-4495

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $89.47

103-4081

2:2

LATCH-KEEPER

Part# 103-4081

Note: Kit No. 103-4188 - Contains catch, rubber latch, and mounting hardware.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.15

3256-14

2:3

WASHER-FLAT

Part# 3256-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.13

3290-500

2:4

SCREW-PPH

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

116-4825

3

UPPER TUBE ASM

Part# 116-4825

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $189.55

116-4496

3:1

TUBE-UPPER

Part# 116-4496

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $187.19

104-7201

3:2

NUT-HF

Part# 104-7201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.08

1-803076

3:3

SCREW

Part# 1-803076

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11
