116-3001 - Exmark Ultra Vac Bagger for Pioneer Mower (SN: 404314159 - 406294344) (2019)

Ultra Vac Bagger for Pioneer Mower

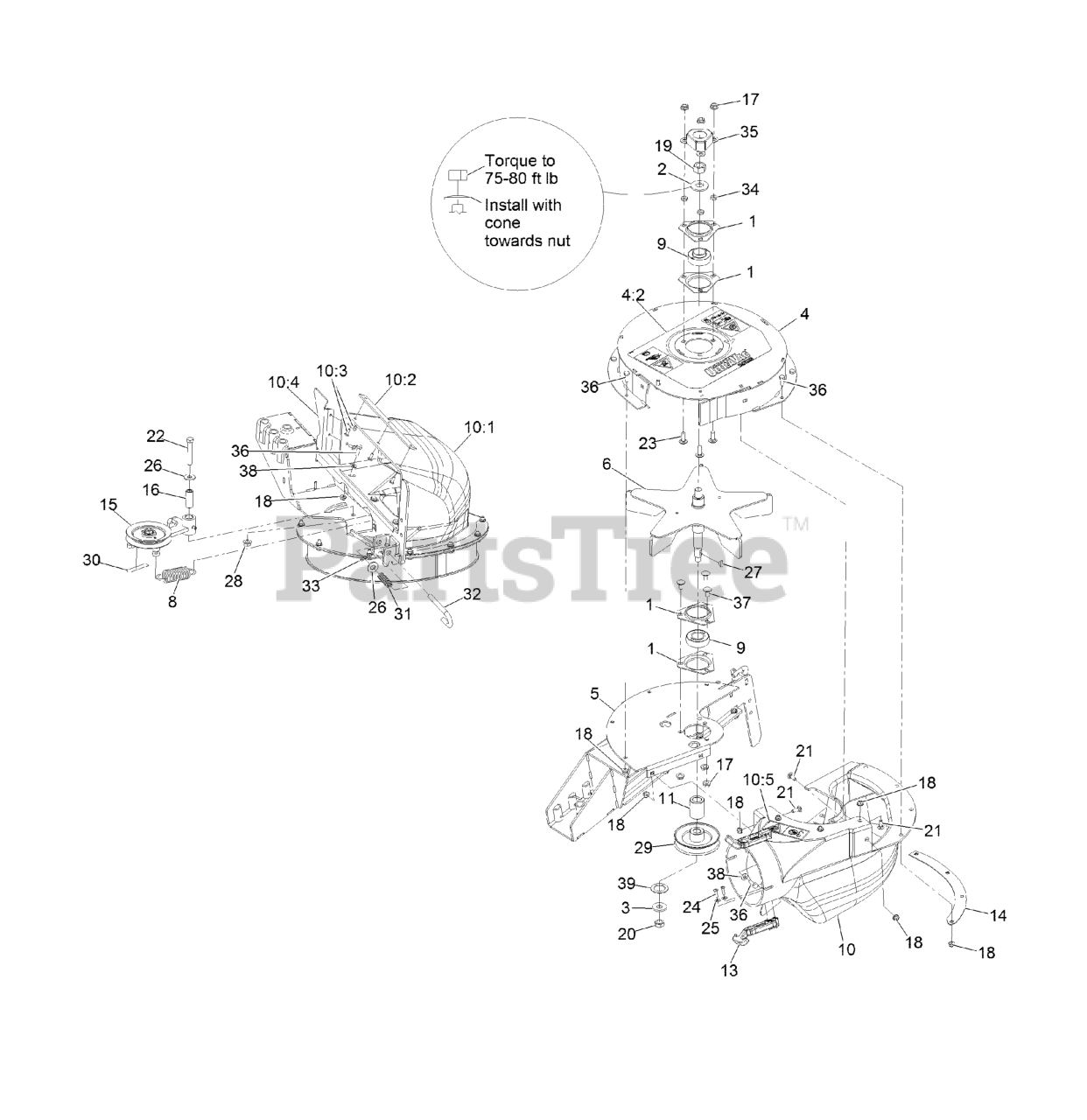

116-3001 - Exmark Ultra Vac Bagger for Pioneer Mower (SN: 404314159 - 406294344) (2019) > Parts Diagrams (15) > Blower Assembly

  • Title
1-513013

1

HOUSING-FLANGE

Part# 1-513013

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.42

1-513208

2

WASHER-SPRING

Part# 1-513208

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.70

1-513435

3

WASHER-SPRING

Part# 1-513435

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.60

116-4446

4

UPPER HOUSING W/DECAL

Part# 116-4446

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $283.37

126-4793

4:2

Decal-Blower Warning

Part# 126-4793

OEM Warranty Repair Part for Exmark

Currently unavailable

116-6484-03

5

BLOWER FRAME ASM

Part# 116-6484-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $336.73

103-3815

6

IMPELLER

Part# 103-3815

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $210.74

1-653331

8

SPRING-IDLER

Part# 1-653331

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.93

1-653346

9

BEARING

Part# 1-653346

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $48.03

116-6487

10

BLOWER CHUTE ASM

Part# 116-6487

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $240.18

116-4991

10:1

CHUTE-BLOWER, SMALL

Part# 116-4991

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $231.94

103-4752-03

10:2

PLATE-REINFORCEMENT

Part# 103-4752-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.40

114439

10:3

RIVET-BLIND

Part# 114439

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

116-6486-03

10:4

PLATE-FILLER

Part# 116-6486-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.76

126-4853

10:5

Decal-Blower-Impeller Hazard

Part# 126-4853

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.69

1-653365

11

SPACER

Part# 1-653365

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $19.00

103-4080

13

LATCH-RUBBER

Part# 103-4080

Note: Kit No. 103-4188 - Contains catch, rubber latch, and mounting hardware

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.15

116-4434-03

14

PLATE-BACKING

Part# 116-4434-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.11

15

ASM, Idler

Part#

Note: Not serviced separately

Not available

1-603044

16

BUSHING

Part# 1-603044

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.48

32128-20

17

NUT-HF

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

104-7201

18

NUT-HF

Part# 104-7201

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.08

3219-6

19

NUT-HEX

Part# 3219-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.99

3220-5

20

NUT-JAM

Part# 3220-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.20

3229-1

21

BOLT-CARR

Part# 3229-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.62

323-11

22

SCREW-HH

Part# 323-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.67

3230-10

23

BOLT-CARR

Part# 3230-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.73

3290-500

24

SCREW-PPH

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

3256-14

25

WASHER-FLAT

Part# 3256-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.13

3256-4

26

WASHER-FLAT

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.20

3257-32

27

KEY-WOODRUFF

Part# 3257-32

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.91

3290-357

28

NUT-HHF, WHIZ

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.73

103-1047

29

SHEAVE-BLOWER

Part# 103-1047

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $52.54

126-4659

30

DECAL-WARNING

Part# 126-4659

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.52

109-7694

31

SPRING-COMPRESSION

Part# 109-7694

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

116-4356

32

PIN-LATCH

Part# 116-4356

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.30

3290-307

33

1-806003

Part# 3290-307 (Superseded to 1-806003)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

3218-2

34

NUT-JAM

Part# 3218-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.31

116-4776

35

COVER-NUT

Part# 116-4776

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.18

321-4

36

SCREW-HH

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

3230-18

37

SCREW-CARR

Part# 3230-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

3256-22

38

WASHER-FLAT

Part# 3256-22

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.13

1-523157

39

WASHER-SPACER

Part# 1-523157

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11
