116-3001 - Exmark Ultra Vac Bagger for Pioneer Mower (SN: 404314159 - 406294344) (2019)

Ultra Vac Bagger for Pioneer Mower

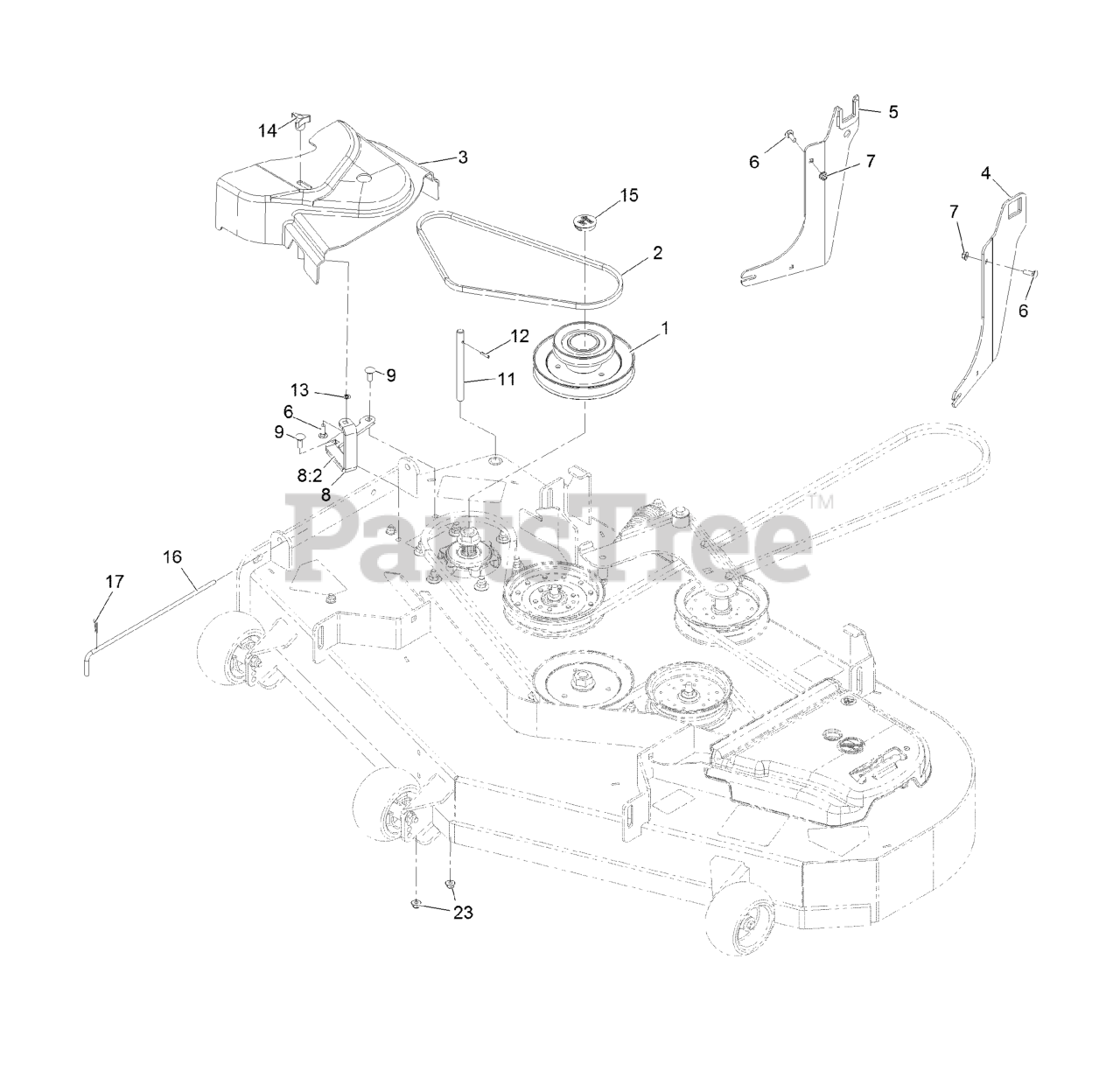

116-3001 - Exmark Ultra Vac Bagger for Pioneer Mower (SN: 404314159 - 406294344) (2019) > Parts Diagrams (15) > Completing Kit No. 116-4889

  • Title
116-2089

1

JACKSHAFT,UV DRIVE 524 SP

Part# 116-2089

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $186.70

1-653333

2

BELT-BLOWER

Part# 1-653333

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $23.90

116-4685

3

COVER-BELT, UV 52

Part# 116-4685

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $77.69

116-4862-03

4

BRACKET ASM, LH

Part# 116-4862-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $59.82

116-4863-03

5

BRACKET ASM, RH

Part# 116-4863-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $59.82

3230-2

6

BOLT-CARR

Part# 3230-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.05

104-8300

7

NUT-HF, NI

Part# 104-8300

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

116-7036

8

ASM-CVR BRKT W/DECAL

Part# 116-7036

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $48.53

119-0217

8:2

DECAL-DANGER

Part# 119-0217

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.52

3231-2

9

BOLT-CARR

Part# 3231-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.36

1-353050

11

SHAFT-CATCHER, GRASS

Part# 1-353050

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.40

1-806323

12

PIN-ROLL

Part# 1-806323

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

109-5667

13

RING-RETAINING, BOLT

Part# 109-5667

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

1-323385

14

KNOB-3 PRONG

Part# 1-323385

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

103-1279

15

PLUG, BLACK NYLON 1.75

Part# 103-1279

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.23

109-3458

16

PIN,CHUTE PIVOT

Part# 109-3458

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.29

1-806003

17

PIN-COTTER

Part# 1-806003

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.22

109-6658

23

Nut-Nyloc 3/8-16 Flg

Part# 109-6658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11
