116-702E190 - White Outdoor Lawn Boss 18" Walk-Behind Mower (1996) Deck And Wheel Assembly (702E) Parts Diagram

Lawn Boss 18" Walk-Behind Mower

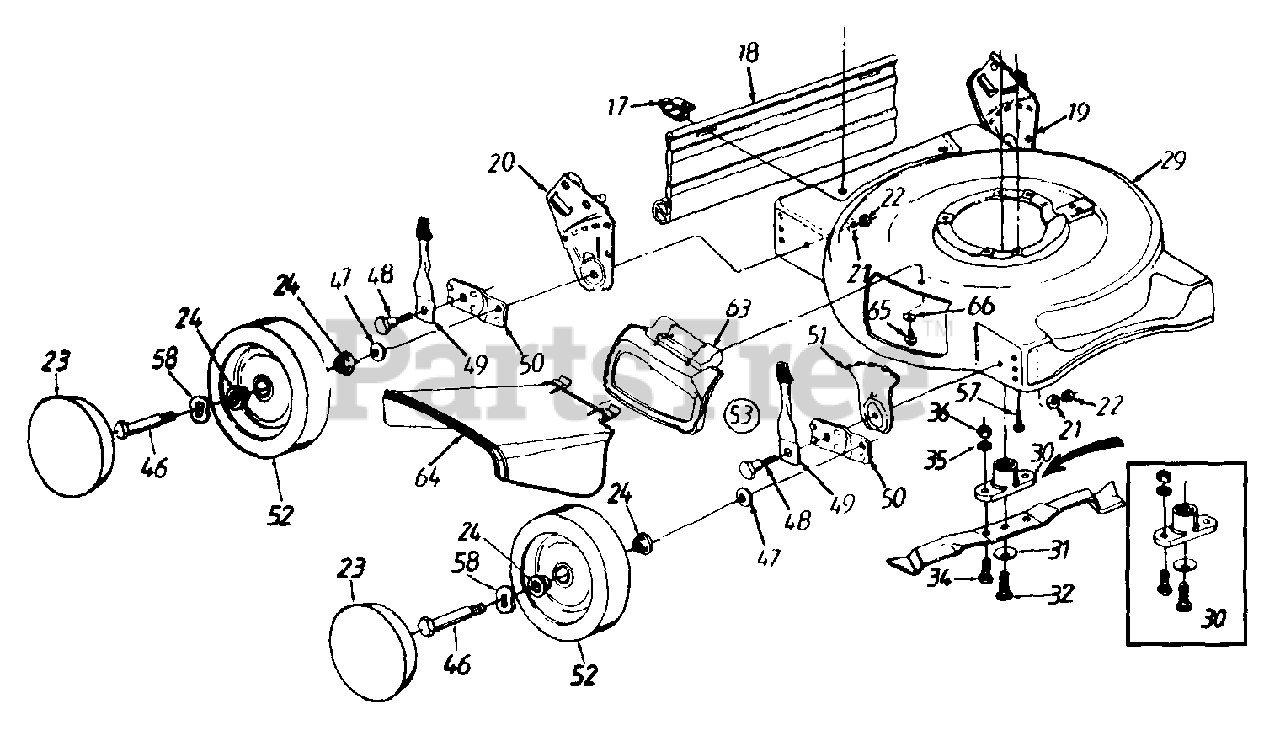

Deck And Wheel Assembly (702E) Parts Diagram

  • Title

17

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

White Outdoor 731-1028

Rear Flap (702E)

$34.99

$

In Stock, only 1 left!

0

19

White Outdoor 682-3001A

Handle Bracket Ass'y. - L.H. (702E)
(Superseded to 753-05962)

$65.99

$

Usually ships in 3-6 days

0

20

White Outdoor 682-3000A

Handle Bracket Ass'y. - R.H. (702E)
(Superseded to 753-05962)

$65.99

$

Usually ships in 3-6 days

0

21

White Outdoor 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

23

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$9.99

$

In Stock, Qty 6

0

24

White Outdoor 741-0484

Bearing
(Superseded to 941-0484)

$6.99

$

In Stock, only 2 left!

0

29

White Outdoor 682-0018

18" Deck Ass'y. (702E)

Variations

White Outdoor 682-0018-0483

No Longer Available DECK-ASSY-18 - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 682-0018-0499

No Longer Available DECK-ASSY-18 - CUB BEIGE (0499)

$

$

Not available

White Outdoor 682-0018-0638

No Longer Available DECK-ASSY-18 - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-0018-0662

18" Deck Assy. - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-0018-0665

No Longer Available DECK-ASSY-18 - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-0018-0691

No Longer Available DECK-ASSY-18 - BLACK JACK (0691)

$

$

Not available

$

$

30

White Outdoor 753-0484

Blade Adapter Kit

$21.99

$

In Stock, only 1 left!

0

31

White Outdoor 736-0452

Bell-Wash. .46" I.D.

$4.49

$

In Stock, Qty 16

0

32

White Outdoor 710-1044

Hex Bolt 7/16-20 x 1.5" Lg.

$3.99

$

In Stock, Qty 20+

0

?33

White Outdoor 742-0718

18" Mulching Blade (702E)
(Superseded to 942-0718)

$

$

Not available

34

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.49

$

Usually ships in 3-6 days

0

35

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

36

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 738-0102

Axle Bolt

$9.49

$

In Stock, Qty 11

0

47

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

48

White Outdoor 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

50

White Outdoor 15262B

Pivot Bar

Variations

White Outdoor 15262B-0637

PIVOT BAR - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

51

White Outdoor 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

52

White Outdoor 734-1793

Wheel Ass'y. Comp.

$

$

Not available

53

White Outdoor 14578

Height Adj. Ass'y. Comp. - R.F. & L.R.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

White Outdoor 14579

Height Adj. Ass'y. Comp. - L.F. & R.R.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

57

White Outdoor 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.

$3.99

$

In Stock, only 4 left!

0

58

White Outdoor 736-0504

Wave Washer .51" I.D.
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 12

0

?59

White Outdoor 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

63

White Outdoor 682-7002

Mulching Plug (702E)

$

$

Not available

64

White Outdoor 731-1409

Chute Deflector
(Superseded to 731-1409B)

$26.99

$

In Stock, Qty 5

0

65

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 13

0

66

White Outdoor 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0
