116-702E190 - White Outdoor Lawn Boss 18" Walk-Behind Mower (1996) Engine And Handle Assembly Parts Diagram

Lawn Boss 18" Walk-Behind Mower

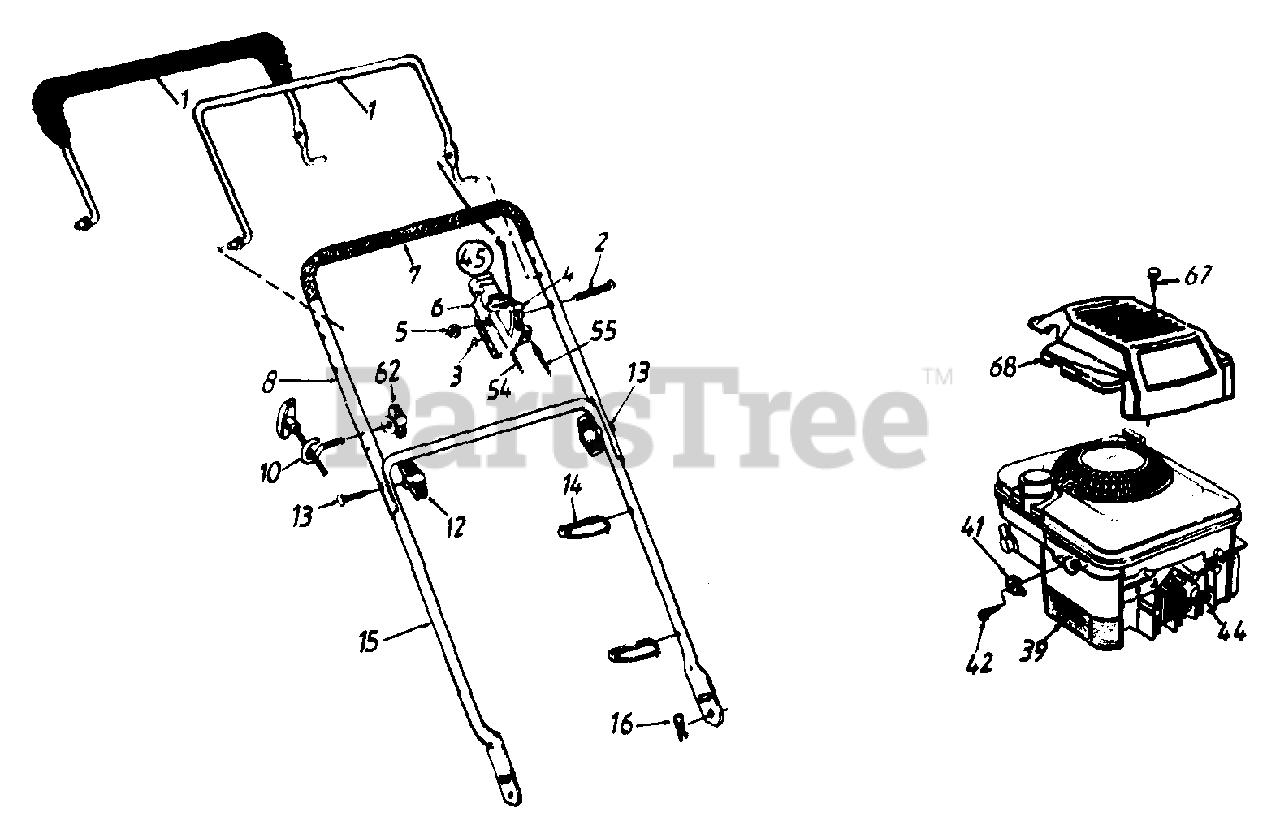

Engine And Handle Assembly Parts Diagram

  • Title

1

White Outdoor 647-0004

Control Handle Ass'y. (106F)
(Superseded to 747-0824B-0637)

$61.99

$

In Stock, only 1 left!

0

White Outdoor 747-0824

Control Handle Ass'y. (702E)
(Superseded to 747-0824B-0637)

Variations

White Outdoor 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$61.99

$

In Stock, only 1 left!

0

$61.99

$

In Stock, only 1 left!

0

2

White Outdoor 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 4 left!

0

3

White Outdoor 736-0501

Spr. Wash..66" I.D.
(Superseded to 936-0501)

$6.49

$

Usually ships in 3-6 days

0

4

White Outdoor 746-0876

Throttle Lever
(Superseded to 946-0876)

$7.99

$

In Stock, Qty 10

0

5

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

6

White Outdoor 646-0875

Throttle Body
(Superseded to 946-0875)

$8.99

$

In Stock, Qty 14

0

7

White Outdoor 720-0226

Grip (106F)
(Superseded to 720-0295)

$30.99

$

Usually ships in 3-6 days

0

8

White Outdoor 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

White Outdoor 749-0538C-0637

UPPER HANDLE BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

10

White Outdoor 710-1205

Rope Guide

$3.99

$

In Stock, Qty 15

0

12

White Outdoor 720-0276

Hand Knob
(Superseded to 920-0276)

$3.49

$

In Stock, Qty 9

0

13

White Outdoor 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$6.99

$

In Stock, Qty 20+

0

14

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

15

White Outdoor 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

White Outdoor 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, Qty 10

0

$33.99

$

In Stock, Qty 10

0

16

White Outdoor 714-0104

Hairpin Cotter

$3.99

$

In Stock, Qty 20+

0

39

Engine

$

$

Not available

41

White Outdoor 751B213146

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 2 left!

0

42

White Outdoor 710-1237

Hex Self-Tap Scr. #10-32 x .62"

$4.49

$

Usually ships in 3-6 days

0

44

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

45

White Outdoor 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: Incl. Ref. 2, 3, 4, 5, 6

$34.99

$

In Stock, Qty 9

0

54

White Outdoor 746-0842

Throttle Cable - 51" Lg.
(Superseded to 946-0671A)

$13.99

$

In Stock, Qty 9

0

55

White Outdoor 746-0553

Control Cable - 36" Lg.
(Superseded to 946-0553)

$22.99

$

In Stock, only 1 left!

0

?59

White Outdoor 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

62

White Outdoor 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

67

White Outdoor 710-1256

Hi-Lo Scr. #10 x 1.25" Lg. (106F)

$5.99

$

In Stock, Qty 5

0

68

White Outdoor 751B281451

Engine Shroud (106F)

$

$

Not available
