116-7223 - Exmark Sulky for Vantage Stand-On Mower (SN: 402082300 - 404314158) (2018) StandOn Assembly Parts Diagram

Sulky for Vantage Stand-On Mower

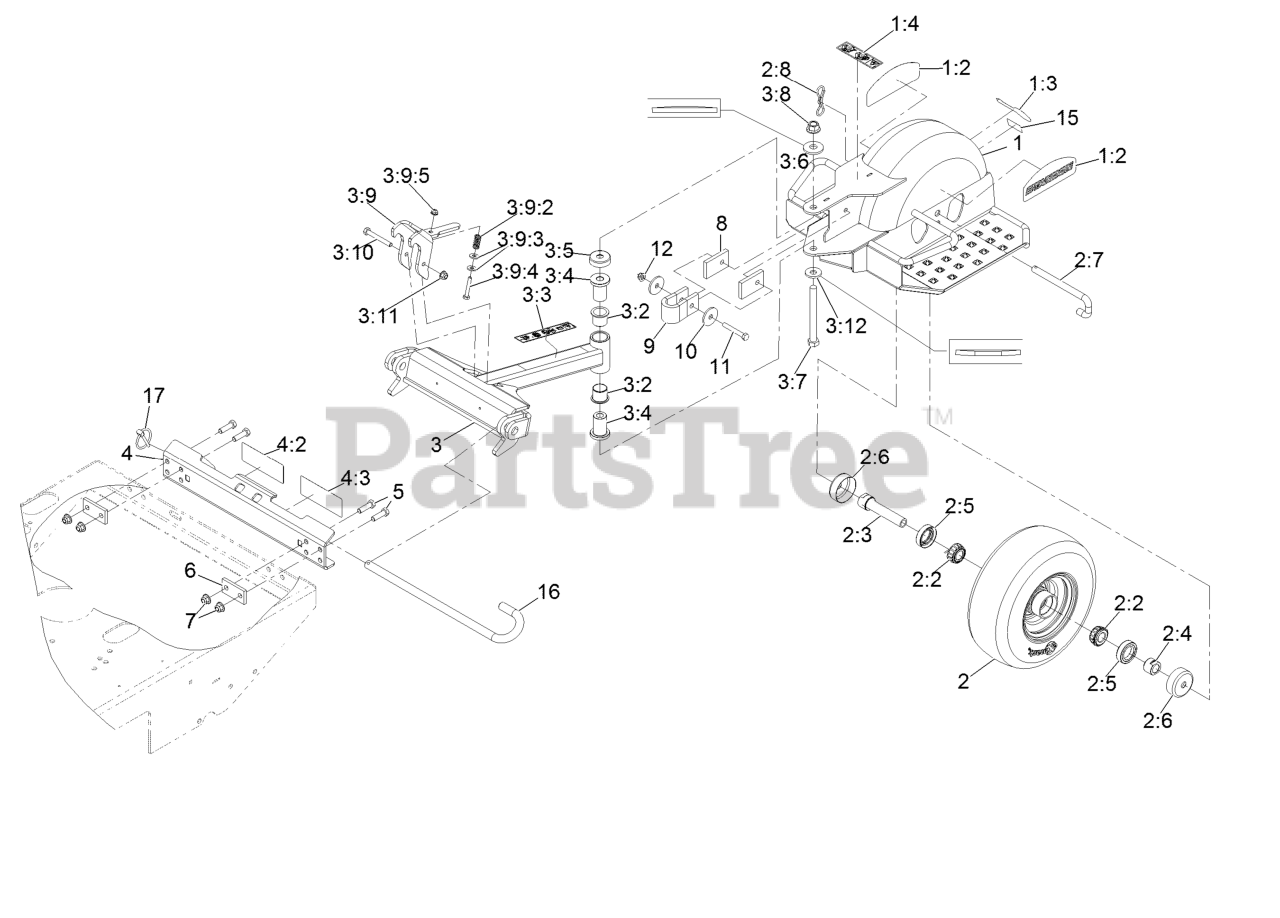

StandOn Assembly Parts Diagram

  • Title

1

Exmark 126-1952

ASM-Sulky Frame W/ Decals

$489.99

$

Usually ships in 3-6 days

0

1:2

Exmark 126-6893

Decal, Standon

$7.49

$

Usually ships in 3-6 days

0

1:3

Exmark 126-6894

Decal, Exmark

$5.99

$

Usually ships in 3-6 days

0

1:4

Exmark 135-0300

Decal-Warning Hand Pinch

$7.99

$

Usually ships in 3-6 days

0

2

Exmark 116-7228

ASM, Wheel And Bearings

$254.99

$

Usually ships in 3-6 days

0

2:2

Exmark 1-633585

Bearing-Cone Tapered Roller

$21.99

$

In Stock, Qty 20+

0

2:3

Exmark 126-5359

Caster Axle ASM

$18.99

$

In Stock, only 1 left!

0

2:4

Exmark 103-3051

Spacer-Nut

$9.49

$

In Stock, Qty 20+

0

2:5

Exmark 103-0063

Seal-Double Lip

$8.99

$

In Stock, Qty 13

0

2:6

Exmark 103-2768

Guard-Seal

$3.49

$

In Stock, Qty 20+

0

2:7

Exmark 116-6017

Pin, Caster

$40.99

$

Usually ships in 3-6 days

0

2:8

Exmark 116-6392

Pin-Cotter, Locking

$1.49

$

Usually ships in 3-6 days

0

3

Exmark 126-1958

ASM, Draw Bar

$548.99

$

Usually ships in 3-6 days

0

3:2

Exmark 126-1963

Bushing-Pivot

$7.49

$

In Stock, Qty 20+

0

3:3

Exmark 126-1411

Decal-Sulky Hazard

$5.99

$

Usually ships in 3-6 days

0

3:4

Exmark 126-1964

Spacer, Pivot

$24.99

$

In Stock, Qty 13

0

3:5

Exmark 116-6313

Cover, Dust

$2.99

$

In Stock, Qty 9

0

3:6

Exmark 116-8429

Washer-Belleville

$10.99

$

In Stock, only 4 left!

0

3:7

Exmark 325-19

Screw-HH 1/2-13 X 5

$8.49

$

In Stock, only 2 left!

0

3:8

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

3:9

Exmark 126-2125

Transport Latch ASM

$67.99

$

Usually ships in 3-6 days

0

3:9:2

Exmark 116-6523

Spring, Compression

$5.49

$

Usually ships in 3-6 days

0

3:9:3

Exmark 3256-2

Washer-1/4 Std
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

3:9:4

Exmark 321-37

Screw-HH

$11.99

$

In Stock, only 3 left!

0

3:9:5

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

3:10

Exmark 322-12

Screw-HH 5/16-18 X 2 1/2

$1.99

$

In Stock, Qty 14

0

3:11

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

3:12

Exmark 1-513435

Washer-Spring Disc 1/2

$5.49

$

In Stock, Qty 20+

0

4

Exmark 126-1955

ASM, Mount Plate

$152.99

$

Usually ships in 3-6 days

0

4:2

Exmark 116-8225

Decal-Belt Drive Warning

$5.99

$

Usually ships in 3-6 days

0

4:3

Exmark 126-1400

Decal-Warning, Sulky

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

6

Exmark 103-6663

Plate, Back-Up

$5.49

$

In Stock, only 3 left!

0

7

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

8

Exmark 103-6654

Pad, Stop

$1.49

$

In Stock, only 3 left!

0

9

Exmark 126-9101

Stop, Rotation

$5.49

$

In Stock, Qty 5

0

10

Exmark 1-213069

Washer

$2.99

$

In Stock, Qty 20+

0

11

Exmark 322-11

Screw-HH 5/16-18 X 2 1/4
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

12

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 126-4345

Decal-Patent

$1.99

$

In Stock, only 3 left!

0

16

Exmark 116-6302

Pin, Pivot

$51.99

$

In Stock, only 2 left!

0

17

Exmark 92-1298

Pin-Lynch

$3.99

$

In Stock, Qty 18

0
