117-0541 - Toro Recycler Kit for 52" Turbo Force Cutting Unit for Mowers 52 INCH RECYCLER ASSEMBLY NO 117-0541 Parts Diagram

Recycler Kit for 52" Turbo Force Cutting Unit for Mowers

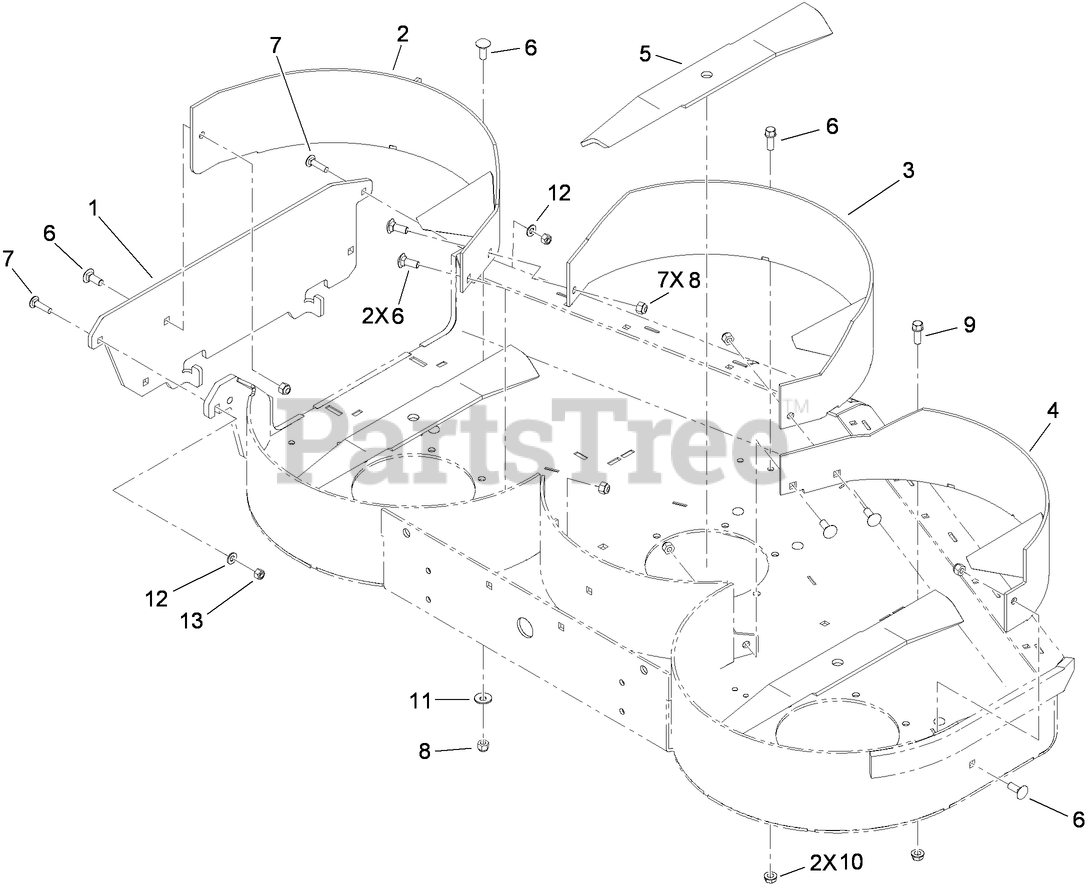

52 INCH RECYCLER ASSEMBLY NO 117-0541 Parts Diagram

  • Title

1

Toro 117-0504-01

PLATE-COVER, DISCHARGE

$162.99

$

Usually ships in 3-6 days

0

2

Toro 114-1865-01

RH BAFFLE ASM

$

$

Currently unavailable

3

Toro 114-1863-01

CENTER BAFFLE ASM

$

$

Currently unavailable

4

Toro 114-1861-01

LH BAFFLE ASM

$

$

Currently unavailable

5

Toro 105-7779-03

BLADE-RECYCLER

$35.99

$

In Stock, only 4 left!

0

6

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

7

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

10

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

11

Toro 3290-340

WASHER-BELLEVILLE

$8.49

$

In Stock, Qty 8

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
