117-072-190 - White Outdoor Lawn Boss 20" Walk-Behind Mower (1987) Mower Assembly Parts Diagram

Lawn Boss 20" Walk-Behind Mower

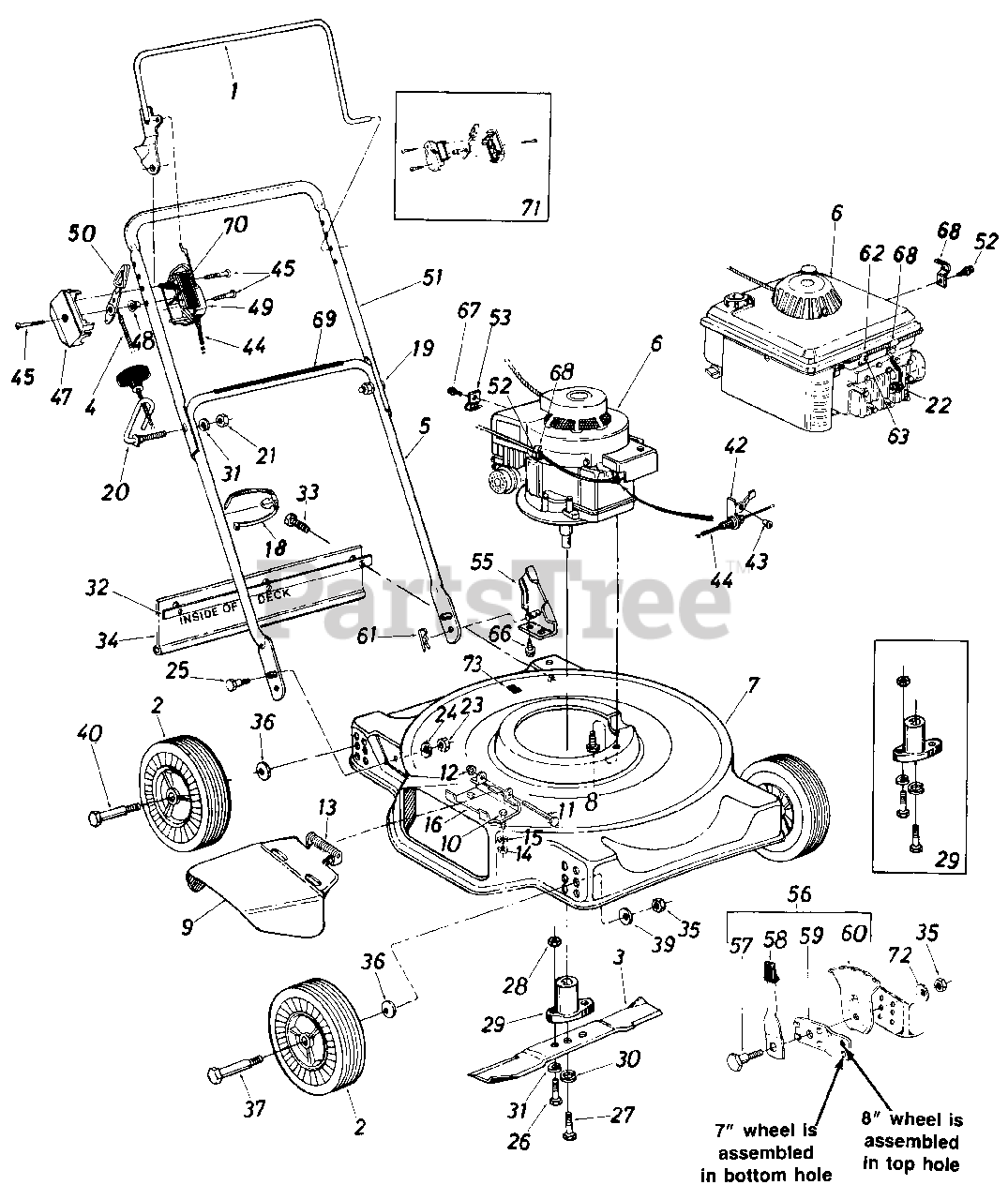

Mower Assembly Parts Diagram

  • Title

1

White Outdoor 14320

Control Handle Ass'y.-R.H.

$

$

Not available

2

Wheel Ass'y. Comp.

$

$

Not available

White Outdoor 734-0894

Wheel Ass'y. Comp.

$

$

Not available

White Outdoor 741-0262

Wheel Bearings

$7.99

$

Usually ships in 3-6 days

0

3

White Outdoor 742-0123

20" Blade

$

$

Not available

4

White Outdoor 746-0630

Throttle Control Wire-39"
(Superseded to 946-0630A)

$26.99

$

Usually ships in 3-6 days

0

5

White Outdoor 749-0373

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, Qty 10

0

6

Engine

$

$

Not available

7

White Outdoor 14995

20" Deck Ass'y.

Variations

White Outdoor 14995-0483

No Longer Available DECK ASSEMBLY-20IN - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 14995-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 14995-0638

No Longer Available DECK ASSEMBLY-20IN - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 14995-0662

No Longer Available DECK ASSEMBLY-20IN - OYSTER GRAY (0662)

$

$

Not available

$

$

8

White Outdoor 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0654A)

$3.99

$

In Stock, only 4 left!

0

9

White Outdoor 14944

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$67.99

$

In Stock, Qty 12

0

10

White Outdoor 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

11

White Outdoor 711-0555

Hinge Pin 1/4" Dia. x 3.88 Lg.

$

$

Not available

12

White Outdoor 726-0106

Push Cap .25" Rod

$3.99

$

Usually ships in 3-6 days

0

13

White Outdoor 732-0253

Torsion Spring

$

$

Not available

14

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

15

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

16

White Outdoor 11130

Deflector Hinge Plate

$

$

Not available

18

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

19

White Outdoor 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

20

White Outdoor 710-0842

Rope Guide Bolt

$

$

Not available

21

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

22

UNKNOWN

$

$

Not available

23

UNKNOWN

$

$

Not available

24

UNKNOWN

$

$

Not available

25

UNKNOWN

$

$

Not available

26

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) Special

$3.99

$

In Stock, Qty 11

0

27

White Outdoor 710-0331

Hex Bolt 3/8-24 x 2.25n Lg. (Grade 5)

$6.49

$

In Stock, Qty 7

0

28

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

29

753-0348

Blade Adapter Kit

$

$

Not available

30

White Outdoor 736-0217

L-Wash. 3/8" I.D.-H.D.

$3.99

$

In Stock, Qty 13

0

31

White Outdoor 736-0119

L-Wash. 5/16n l.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 14846

Retainer Strip

$

$

Not available

33

White Outdoor 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 " X .62n Lg.
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 731-0575

Rear Flap Ass'y.
(Superseded to 731-1029)

$26.99

$

Usually ships in 3-6 days

0

35

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

36

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

37

White Outdoor 738-0102

Front Axle Bolt

$9.49

$

In Stock, Qty 11

0

39

UNKNOWN

$

$

Not available

40

White Outdoor 738-0509

Rear Axle Bolt

$

$

Not available

42

White Outdoor 14924

Cable Bracket

$

$

Not available

43

White Outdoor 728-0171

Pop Rive

$

$

Not available

44

White Outdoor 746-0478

49" Control Cable-Blue
(Superseded to 946-0478A)

$40.99

$

Usually ships in 3-6 days

0

45

White Outdoor 710-0796

Truss Mach. Scr. #12 x 1.50"

$5.49

$

In Stock, Qty 6

0

47

White Outdoor 731-0817

Control Panel Half
(Superseded to 731-0817A)

$

$

Not available

48

White Outdoor 731-0524

Control Disc Pin

$

$

Not available

49

White Outdoor 731-0816

Clutch Panel Half

$

$

Not available

50

White Outdoor 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$8.99

$

In Stock, Qty 14

0

51

White Outdoor 749-0536

Upper Handle
(Superseded to 749-0538E-0637)

$

$

Not available

52

White Outdoor 710-0429

Hex "B" Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

53

White Outdoor 751-0369

Casing Clamp

$

$

Not available

55

White Outdoor 12935

Handle Mount Brkt. Ass'y.-L.H.

$

$

Not available

White Outdoor 12936

Handle Mount Brkt. Ass'y.-R.H.

Note: (Not Shown)

$

$

Not available

56

White Outdoor 14578

Height Adjuster Ass'y. Comp.-R.H.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

White Outdoor 14579

Height Adjuster Ass'y. Comp.-L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$60.99

$

In Stock, Qty 7

0

57

White Outdoor 738-0507

Shoulder Bolt .500" Dia. x .357
(Superseded to 938-0507B)

$4.49

$

In Stock, Qty 20+

0

58

White Outdoor 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

59

White Outdoor 15262

Pivot Bar
(Superseded to 15262B)

Note: (7" wheel is assembled in bottom hole)(8" wheel is assembled in top hole)

$13.99

$

Usually ships in 3-6 days

0

60

White Outdoor 15261

Index Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

61

White Outdoor 714-0104

Hairpin Cotter

$3.99

$

In Stock, Qty 20+

0

62

UNKNOWN

$

$

Not available

63

White Outdoor 710-0436

Hex Self-Tap Scr. #8 x .62"
(Superseded to 710-0651)

$3.49

$

Usually ships in 3-6 days

0

66

White Outdoor 710-0603

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

67

White Outdoor 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg.

$3.99

$

In Stock, Qty 20+

0

68

White Outdoor 12894

Cable Clip

$

$

Not available

69

777-5776

Instruction Label-Handle

$

$

Not available

70

777-5773

Control Label-Throttle

$

$

Not available

71

White Outdoor 753-0430

Kit-Control Housing Comp.

$

$

Not available

72

White Outdoor 736-0356

Belleville Wash. .39 I.D. x 1.4 O.D.
(Superseded to 936-0356)

$

$

Not available

73

White Outdoor 731-0564

Plastic Plug

$

$

Not available

8072-000-7

Hardware Pack

$

$

Not available
