117-114-000 - MTD Walk-Behind Mower (1987)

Walk-Behind Mower

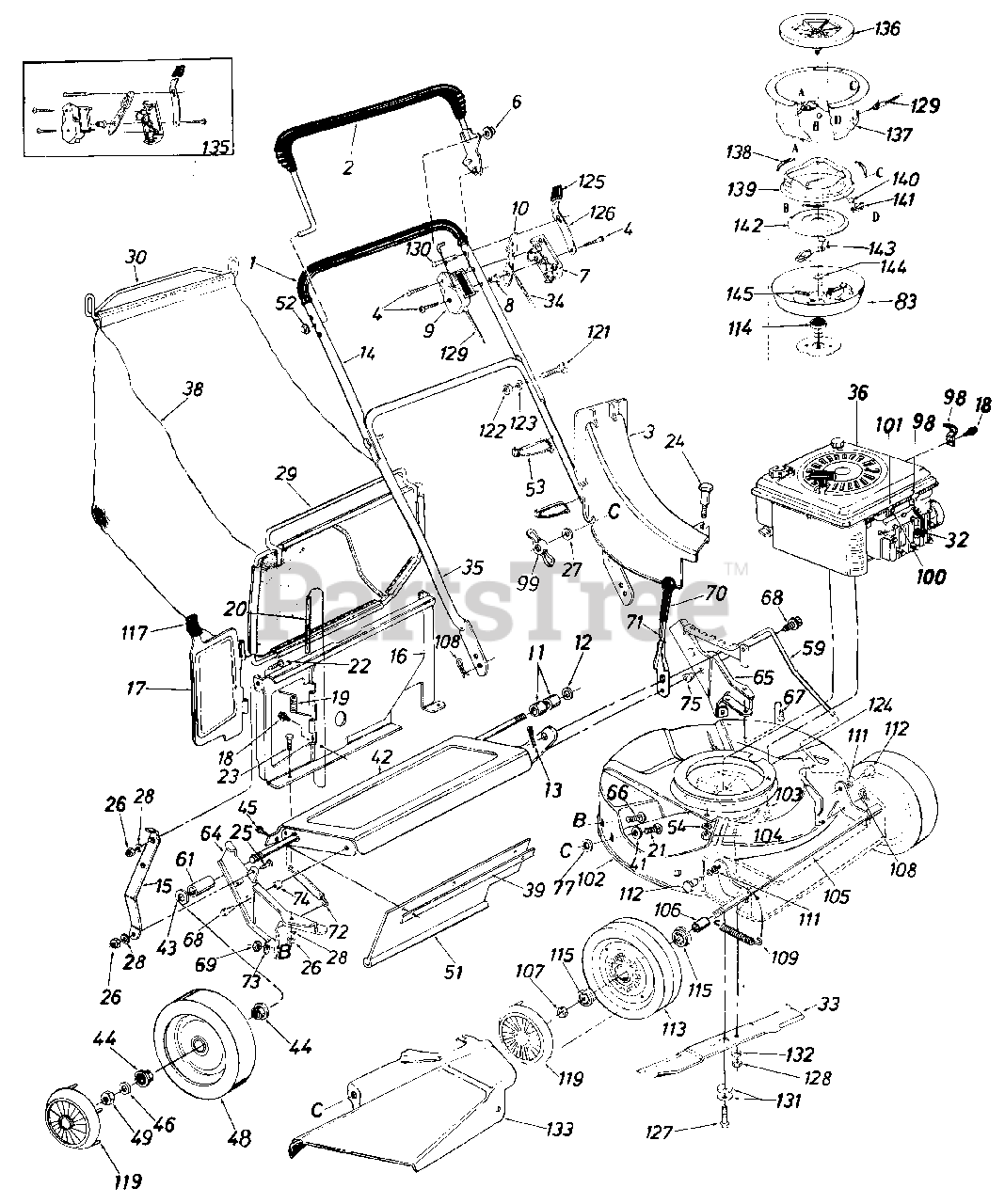

117-114-000 - MTD Walk-Behind Mower (1987) > Parts Diagrams (1) > Parts02

  • Title
718-0145

1

Grip

Part# 718-0145

OEM Warranty Repair Part for MTD

Currently unavailable

731-0609

2

Control Handle Ass'y.-L.H.

Part# 731-0609

OEM Warranty Repair Part for MTD

Not available

731-0733

3

Top Discharge Chute Ass'y.

Part# 731-0733

OEM Warranty Repair Part for MTD

Not available

710-0796

4

Truss Mach. Scr. #12 x 1.50" Lg.

Part# 710-0796

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.81

726-0245

6

Push Cap

Part# 726-0245

OEM Warranty Repair Part for MTD

Not available

731-0817

7

Control Panel Half

Part# 731-0817

OEM Warranty Repair Part for MTD

Not available

731-0524

8

Control Disc Pin

Part# 731-0524

OEM Warranty Repair Part for MTD

Not available

731-0816

9

Ciutch Panel Half

Part# 731-0816

OEM Warranty Repair Part for MTD

Not available

731-0528

10

Throttle Control Lever

Part# 731-0528 (Superseded to 931-0972)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.02

711-0500

11

Spacer .526" I.D. x .690" O.D. x .640" Lg.

Part# 711-0500

OEM Warranty Repair Part for MTD

Not available

736-0160

12

Fl-Wash. .531" I.D. x .930" O.D.

Part# 736-0160 (Superseded to 936-0160)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

714-0507

13

Cotter Pin 3/32" Dia. x.75" Lg.

Part# 714-0507 (Superseded to 914-0507)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

749-0437

14

Upper Handle-Chrome

Part# 749-0437

OEM Warranty Repair Part for MTD

Currently unavailable

16129

15

Panel Support Brkt.

Part# 16129 (Superseded to 16129A-0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.37

16140

16

Top Catcher Panel

Part# 16140

OEM Warranty Repair Part for MTD

Not available

16145

17

Top Door

Part# 16145

OEM Warranty Repair Part for MTD

Currently unavailable

710-0429

18

Hex "B" Tap Scr. #10 x .38" Lg.

Part# 710-0429 (Superseded to 910-0429)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.57

732-0483

19

Torsion Spring .20" I.D. x 1.14" Lg.

Part# 732-0483 (Superseded to 732-0483A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.29

747-0514

20

Pivot Pin .187" Dia. x 7.25" Lg.

Part# 747-0514

OEM Warranty Repair Part for MTD

Not available

710-0134

21

Carriage Bolt 1/4-20 x .62"

Part# 710-0134

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.98

710-0286

22

Truss Mach. Scr. 1/4-20 x .5" Lg.

Part# 710-0286

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.10

710-0289

23

Hex Bolt 1/4-20 x .50" Lg.*

Part# 710-0289 (Superseded to 910-0289)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.53

738-0704

24

Shld. Bolt .312" Dia. x .18" Lg. Special

Part# 738-0704 (Superseded to 938-0704)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.13

710-0258

25

Truss Mach. Scr. 1/4-20 x .62" Lg.

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

712-0287

26

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0270

27

Bell-Wash. 1/4" I.D.

Part# 736-0270

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0329

28

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

747-0494

29

Front Grass Catcher Frame

Part# 747-0494

OEM Warranty Repair Part for MTD

Not available

747-0495

30

Grass Catcher Handle

Part# 747-0495

OEM Warranty Repair Part for MTD

Not available

735-0639

32

Spark Plug Insulator

Part# 735-0639

OEM Warranty Repair Part for MTD

Not available

742-0290

33

21" Blade

Part# 742-0290

OEM Warranty Repair Part for MTD

Not available

746-0633

34

Throttle Control Wire 58"

Part# 746-0633 (Superseded to 946-0674A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $13.58

749-0505

35

Lower Handle-Chrome

Part# 749-0505 (Superseded to 749-0907B)

OEM Warranty Repair Part for MTD

Not available

36

Engine

Part#

Not available

764-0212

38

21" Top Discharge Grass Bag

Part# 764-0212

OEM Warranty Repair Part for MTD

Currently unavailable

14835

39

Retaining Strip

Part# 14835

OEM Warranty Repair Part for MTD

Not available

736-0204

41

Fl-Wash. .344" I.D. x .62" O.D.

Part# 736-0204

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.08

16131

42

Rear Axle Ass'y.

Part# 16131

OEM Warranty Repair Part for MTD

Not available

736-0160

43

Fl-Wash. .531" I.D. x .930" O.D.

Part# 736-0160 (Superseded to 936-0160)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

741-0180

44

Flange Ball Bearing 1/2" I.D.

Part# 741-0180 (Superseded to 941-0180)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $13.98

710-0776

45

Hex AB-Tap Scr. 1/4 x .62"

Part# 710-0776 (Superseded to 710-0896)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

736-0160

46

Fl-Wash. .531" I.D. x .930" O.D.

Part# 736-0160 (Superseded to 936-0160)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

712-0296

Hex Patch L-Nut 3/8-24 Thd.

Part# 712-0296 (Superseded to 912-0296)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.71

734-1026

48

Rear Wheel Ass'y.-Comp. 8 x 1 .75

Part# 734-1026

OEM Warranty Repair Part for MTD

Not available

712-0200

49

Hex L-Nut 1/2-20 Thd.

Part# 712-0200 (Superseded to 712-0200A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.08

731-0672

51

Rear Flap

Part# 731-0672 (Superseded to 731-0672A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $24.00

726-0135

52

Push Cap

Part# 726-0135

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.76

726-0240

53

Cable Tie

Part# 726-0240 (Superseded to 725-0157)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.74

736-0329

54

L-Wash 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

747-0510

59

Height Adj. Rod

Part# 747-0510

OEM Warranty Repair Part for MTD

Not available

748-0190

61

Spacer .513" I.D. x .703" O.D. x .690" Lg.

Part# 748-0190

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.39

16136

64

R.H. Handle Wheel Brkt. Ass'y.

Part# 16136 (Superseded to 16136C-0637)

OEM Warranty Repair Part for MTD

Not available

16137

65

L.H. Handle Wheel Brkt. Ass'y.

Part# 16137 (Superseded to 16137C-0637)

OEM Warranty Repair Part for MTD

Not available

710-0260

66

Carriage Bolt 5/16-18 x .62"

Part# 710-0260 (Superseded to 710-0260A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.98

710-0603

67

Hex Wash. Hd. B-Tap Scr. 5/1 6-1 8

Part# 710-0603

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.34

710-0654

68

Hex Wash. Hd. TT-Tap Scr. 3/8-1 6

Part# 710-0654 (Superseded to 710-0654A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

712-0267

69

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Not available

720-0143

70

Grip

Part# 720-0143

OEM Warranty Repair Part for MTD

Not available

732-0473

71

Height Adj. Lever

Part# 732-0473 (Superseded to 732-0473B)

OEM Warranty Repair Part for MTD

Not available

732-0481

72

Extension Spring .50" O.D. x 3.80" Lg.

Part# 732-0481 (Superseded to 932-0481)

OEM Warranty Repair Part for MTD

Not available

736-0242

73

Bell-Wash. .345" I.D. x .88" O.D.

Part# 736-0242

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

750-0526

74

Spacer .385" I.D. x .502" O.D. x .270" Lg.

Part# 750-0526

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

750-0624

75

Shld. Spacer. 500" Dia. x . 1 00

Part# 750-0624

OEM Warranty Repair Part for MTD

Not available

726-0233

77

Bolt Retainer 1/4 x .50" O.D.

Part# 726-0233

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.12

14300

83

Clutch Blade Housing Ass'y.

Part# 14300

OEM Warranty Repair Part for MTD

Not available

12894

98

Throttle Control Cable Clip

Part# 12894

OEM Warranty Repair Part for MTD

Not available

712-0109

99

Wing Nut

Part# 712-0109

OEM Warranty Repair Part for MTD

Not available

710-0436

100

Hex B-Tap Scr. #10 x .62" Lg.

Part# 710-0436 (Superseded to 710-0651)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.53

751-0442

101

Casing Clamp

Part# 751-0442

OEM Warranty Repair Part for MTD

Not available

16126

102

Top Discharge Deck Ass'y.

Part# 16126

OEM Warranty Repair Part for MTD

Variations

MTD/TROY-BILT RED (0638)

No Longer Available DECK ASM

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

710-0654

103

Hex Wash Hd. TT-Tap Scr. 3/8-16

Part# 710-0654 (Superseded to 710-0654A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

712-0185

104

Speed Nut 1/4-20 U-Type

Part# 712-0185

OEM Warranty Repair Part for MTD

Not available

10662

105

Front Axle Ass'y.

Part# 10662

OEM Warranty Repair Part for MTD

Currently unavailable

711-0313

106

Sleeve .526" I.D. x .690" O.D. x .880" Lg.

Part# 711-0313

OEM Warranty Repair Part for MTD

Not available

712-0200

107

Hex L-Nut 1/2-20 Thd.

Part# 712-0200 (Superseded to 712-0200A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.08

714-0104

108

Intern. Cotter Pin 5/16" Dia.

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

732-0482

109

Extension Spring .50" O.D. x 3.20" Lg.

Part# 732-0482

OEM Warranty Repair Part for MTD

Not available

736-0221

111

Intern. L-Wash. 3/8 x .56" O.D.

Part# 736-0221

OEM Warranty Repair Part for MTD

Not available

738-0615

112

Shld. Bolt .623" Dia. x .425

Part# 738-0615

OEM Warranty Repair Part for MTD

Not available

734-1264

113

Front-Wheel Ass'y. Comp. 7x 1.75

Part# 734-1264

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $39.08

741-0124

114

Ball Brg. .669" I.D. x 1.574"

Part# 741-0124 (Superseded to 941-0600)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $18.53

741-0180

115

Flange Ball Bearing 1/2" I.D.

Part# 741-0180 (Superseded to 941-0180)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $13.98

714-0104

Intern. Cotter Pin 5/16" Dia.

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.09

720-0208

117

Door Grip x 2.5

Part# 720-0208

OEM Warranty Repair Part for MTD

Not available

119

Hub Cap-Plastic

Part#

Not available

710-0671

121

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

Part# 710-0671

OEM Warranty Repair Part for MTD

Not available

712-0267

122

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Not available

736-0119

123

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.41

717-0485

124

Blade Brake Clutch Comp.

Part# 717-0485

OEM Warranty Repair Part for MTD

Not available

720-0190

125

Spring Lever Knob

Part# 720-0190 (Superseded to 720-0426)

OEM Warranty Repair Part for MTD

Not available

732-0401

126

Lockout Spring

Part# 732-0401

OEM Warranty Repair Part for MTD

Not available

710-0818

127

Hex Cent. L-Bolt 3/8-24 x 2.00" (Grade 8)

Part# 710-0818

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.77

712-0328

128

Hex Nut 3/8-24 Thd. (Grade 8)

Part# 712-0328 (Superseded to 712-0241)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.10

746-0400A

129

BBC Clutch Cable-46"

Part# 746-0400A (Superseded to 946-0405)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $50.50

731-0607

130

Lock Pin .314" Dia. x 1.75"

Part# 731-0607

OEM Warranty Repair Part for MTD

Not available

736-0105

131

Bell-Wash. .400" I.D. x .88" O.D.

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

736-0169

132

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.64

16559

133

Side Chute Deflector

Part# 16559

Note: (104 Only)

OEM Warranty Repair Part for MTD

Not available

753-0431

135

Kit-Control Housing Comp.

Part# 753-0431

OEM Warranty Repair Part for MTD

Not available

719-0256

136

Fan Adapter

Part# 719-0256

OEM Warranty Repair Part for MTD

Not available

14307

137

Clutch Housing

Part# 14307

OEM Warranty Repair Part for MTD

Not available

732-0397

138

Extension Spring .35" O.D. x 1.75" Lg.

Part# 732-0397

OEM Warranty Repair Part for MTD

Not available

14305

139

Brake Cup Cone

Part# 14305

OEM Warranty Repair Part for MTD

Currently unavailable

741-0326

140

Steel Ball .500" Dia.

Part# 741-0326

OEM Warranty Repair Part for MTD

Not available

731-0520

141

Ball Block

Part# 731-0520

OEM Warranty Repair Part for MTD

Not available

14304

142

Clutching Cone

Part# 14304

OEM Warranty Repair Part for MTD

Not available

710-0875

143

Hex Tap L-Scr. 1/4-20 x .75"

Part# 710-0875

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.88

736-0333

144

Fl-Wash. .690" I.D. x 1.060" O.D.

Part# 736-0333

OEM Warranty Repair Part for MTD

Not available

732-0396

145

Compression Spring .35" O.D. x 2.00" Lg.

Part# 732-0396

OEM Warranty Repair Part for MTD

Not available
