117-5311 - Toro 54" Finishing Kit for Bagger for Mower 54 INCH FINISH KIT ASSEMBLY NO. 117-5311 Parts Diagram

54" Finishing Kit for Bagger for Mower

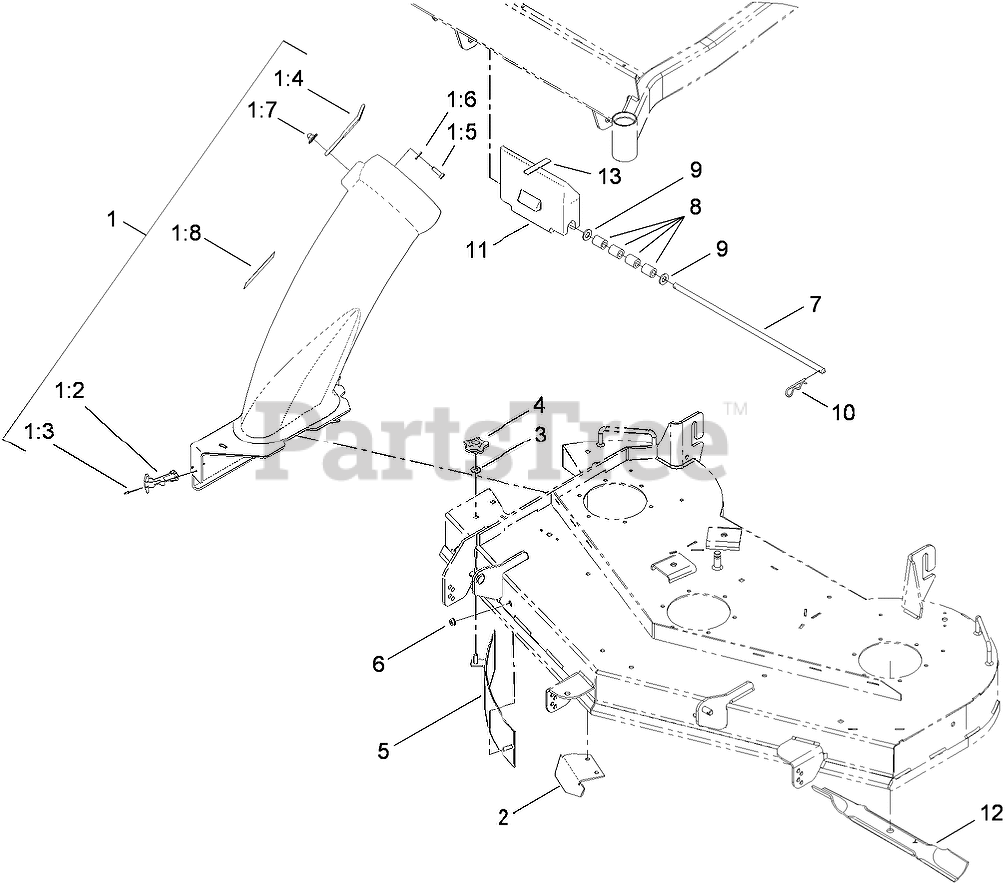

54 INCH FINISH KIT ASSEMBLY NO. 117-5311 Parts Diagram

  • Title

1

Toro 117-5345

54 INCH CHUTE ASM

$

$

Not available

1:2

Toro 117344

HANDLE ASM

$35.99

$

In Stock, Qty 5

0

1:3

Toro 3269-31

RIVET-POP

$3.49

$

In Stock, Qty 12

0

1:4

Toro 82-5690

RETAINER-DUCT

$18.99

$

In Stock, Qty 17

0

1:5

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

1:6

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

1:7

Toro 100-9075

NUT-IMPELLER
(Superseded to 114-9015)

$2.99

$

In Stock, Qty 20+

0

1:8

Toro 110-6691

DECAL-DANGER

$5.49

$

In Stock, Qty 10

0

2

Toro 115-9654-03

BAFFLE-CUTOFF

$

$

Not available

3

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 108-8162

KNOB-LOCKING
(Superseded to 117-5976)

$2.99

$

In Stock, Qty 20+

0

5

Toro 117-1155-03

BAFFLE-BAGGER

$

$

Not available

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 115-5030

ROD-DECK, PIVOT

$30.99

$

Usually ships in 3-6 days

0

8

Toro 66-6501

SPACER-WHEEL

$3.99

$

In Stock, Qty 20+

0

9

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

11

Toro 115-9640-03

WEIGHT-BAGGER

$354.99

$

Usually ships in 3-6 days

0

12

Toro 115-2454-03

BLADE-HI LIFT, 18.75 INCH

$31.99

$

In Stock, Qty 20+

0

13

Toro 112-4033

BUMPER-PAD

$7.99

$

In Stock, only 4 left!

0
