1170 (13AD608G101) - Cub Cadet Lawn Tractor (SN: 1H019H - 1H310H) Steering Assembly & Lower Frame Parts Diagram

Lawn Tractor

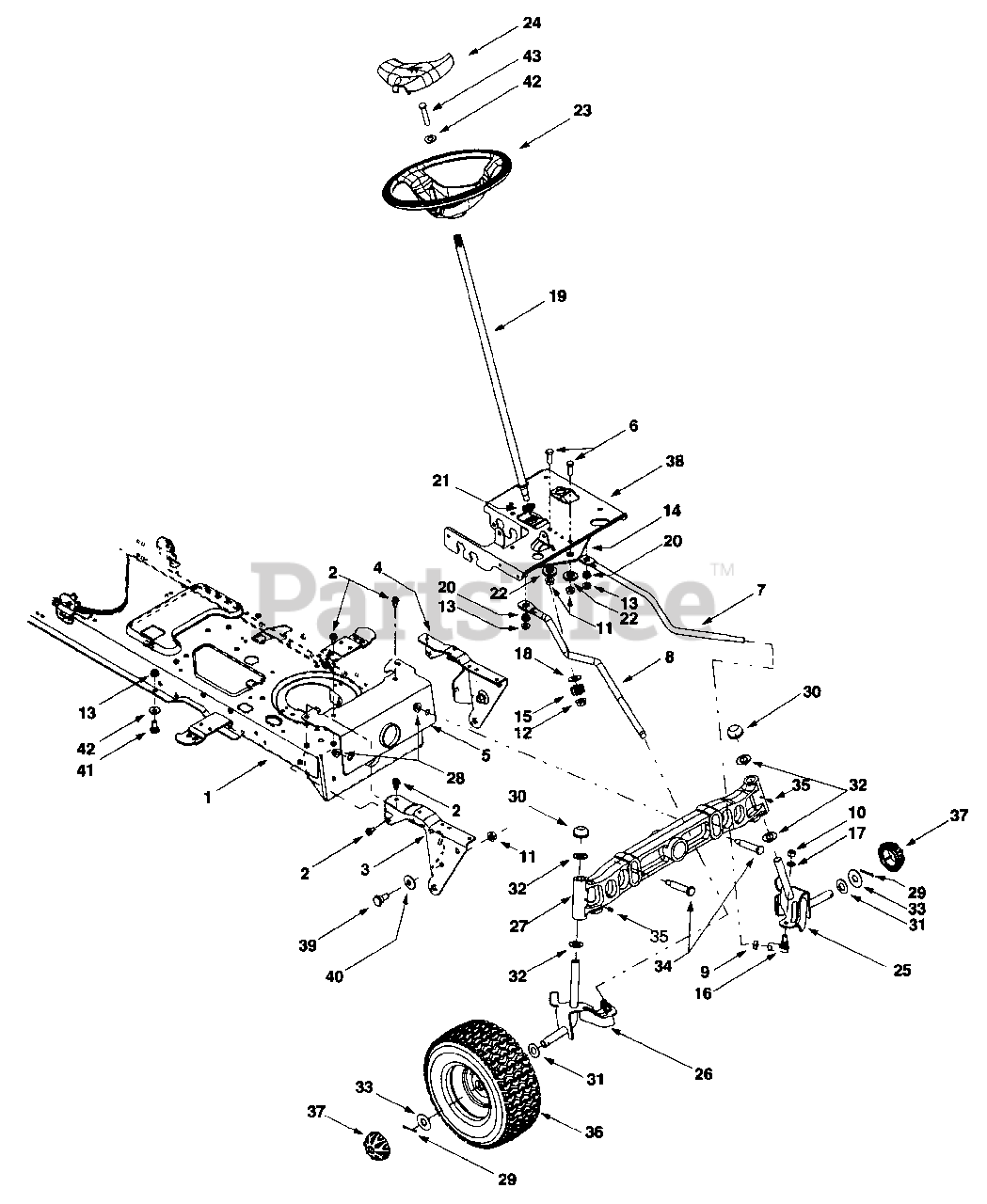

Steering Assembly & Lower Frame Parts Diagram

  • Title

1

Cub Cadet 683-0304

Lower Frame Assembly

Variations

Cub Cadet 683-0304-0637

LOWER FRAME - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 683-0304-0650

LOWER FRAME - RED METALLIC (0650)

$

$

Not available

Cub Cadet 683-0304-0665

LOWER FRAME - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 683-0304-0691

LOWER FRAME - BLACK JACK (0691)

$

$

Not available

Cub Cadet 683-0304-0716

LOWER FRAME - CUB YELLOW-99 (0716)

$

$

Not available

$

$

2

Cub Cadet 710-0604A

Self-tapping Screw, 16-18 x .625

$4.99

$

In Stock, Qty 13

0

3

Cub Cadet 783-0726A

RH Pivot Support Bracket
(Superseded to 783-0726E)

Variations

Cub Cadet 783-0726A-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0726A-0637

USE 783-0726E-0637 BRACKET:PI - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0726A-0650

USE 783-0726E-0650 BRACKET:PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0726A-0665

USE 783-0726E-0665 BRACKET:PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0726A-0691

USE 783-0726E-0691 BRACKET:PI - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0726A-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

Cub Cadet 783-0727

LH Pivot Support Bracket
(Superseded to 783-0727D)

Variations

Cub Cadet 783-0727-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0727-0637

USE 783-0727D BRACKET:PIVOT:S - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0727-0650

USE 783-0727D-0650 BRACKET:PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0727-0665

USE 783-0727D-0665 BRACKET:PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0727-0691

USE 783-0727D-0691 BRACKET:PI - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0727-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

5

Cub Cadet 783-0728

Pivot Bar Bracket
(Superseded to 783-0728B)

Variations

Cub Cadet 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0728-0691

Pivot Bar Bracket - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0728-4008

Pivot Bar Bracket - WINE RED (4008)

$

$

Not available

Cub Cadet 783-0728-0650

USE 783-0728B-0650 BRACKET-PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0728-0665

USE 783-0728B-0665 BRACKET-PI - YARDMAN GREEN (0665)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1 (Grade 5)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 711-1409

LH Drag Link
(Superseded to 711-1409A)

$

$

Not available

8

Cub Cadet 711-1408

RH Drag Link

$

$

Not available

9

Cub Cadet 712-0240

Jam Nut, 7/16-20 (Grade 2)
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0241

Hex Nut, 3/8-24 (Grade 2)

$4.99

$

In Stock, Qty 12

0

11

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0459

Flange Lock Nut, 7/16-20

$5.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 717-1550A

Steering Gear, 11/90 Ratio
(Superseded to 717-1550F)

$74.99

$

In Stock, Qty 20+

0

15

Cub Cadet 717-1554

Steering Pinion Gear

$11.99

$

In Stock, Qty 20+

0

16

Cub Cadet 723-0448A

Ball Joint, 7/16-20
(Superseded to 923-0448A)

$25.99

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-3084

Flat Washer, .51 x 1.12 x .06

$5.49

$

In Stock, Qty 20+

0

19

Cub Cadet 738-1001A

Steering Shaft, .625 OD x 24.4

$79.99

$

In Stock, only 2 left!

0

20

Cub Cadet 741-0475

Plastic Bushing,.38 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 741-0656

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

22

Cub Cadet 738-0372

Shoulder Spacer, .38 ID
(Superseded to 738-0372B)

$10.99

$

In Stock, Qty 20+

0

23

Cub Cadet 731-2295

Soft Touch Steering Wheel
(Superseded to 931-2295)

$

$

Not available

24

Cub Cadet 731-2296

Steering Wheel Insert

$

$

Not available

25

Cub Cadet 638-0019

LH Axle Assembly, .625 Diameter
(Superseded to 938-0019A)

Note: Model 1170 has axles with a .625 diameter.

$61.99

$

In Stock, Qty 7

0

Cub Cadet 638-0021

LH Axle Assembly, .625/.750 Diameter
(Superseded to 938-0021)

Note: Model 1180 has axles with a .625 1.750 diameter.

$109.99

$

In Stock, Qty 5

0

26

Cub Cadet 638-0020

RH Axle Assembly, .625 Diameter
(Superseded to 938-0020A)

Note: Model 1170 has axles with a .625 diameter.

$

$

Not available

Cub Cadet 638-0022

RH Axle Assembly, .625/.750 Diameter
(Superseded to 938-0022)

Note: Model 1180 has axles with a .625 1.750 diameter.

$99.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 719-0399A

Cast Iron Pivot Bar
(Superseded to 719-0399B)

Note: (Model 1170); Model 1170 has axles with a .625 diameter.

Variations

Cub Cadet 719-0399A-0637

USE 719-0399B AXLE-CAST PIVOT - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 919-0525B

Cast Iron Pivot Bar
(Superseded to 919-04177E)

Note: (Model 1180); Model 1180 has axles with a .625 1.750 diameter.

$263.99

$

In Stock, only 1 left!

0

28

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

29

Cub Cadet 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 15

0

30

Cub Cadet 726-0214

Push Cap, .625

$11.99

$

In Stock, Qty 20+

0

Cub Cadet 726-0341

Push Cap, .750

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0162

Flat Washer, .64 x 1.0 x .12

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0187

Flat Washer, .64 x 1.24 x .06

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0316

Flat Washer, .78 x 1.59 x .06

$4.99

$

In Stock, Qty 7

0

33

Cub Cadet 736-0285

Flat Washer, .635 x 1.589 x .06

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 738-1011

Shoulder Screw, .5 x 2.2, 3/8-16
(Superseded to 738-1011A)

$8.99

$

In Stock, Qty 9

0

35

Cub Cadet 737-3000

Lube Fitting, 3/16
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet 634-0115

Wheel Assembly Complete, 15 x 6 x 6

Variations

Cub Cadet 634-0115-0911

WHEEL ASSEMBLY - Carlisle Gray (0911)

$

$

Not available

Cub Cadet 634-0115-0916

WHEEL ASSEMBLY - Kenda Gray (0916)

$

$

Not available

Cub Cadet 634-0115-0914

WHEEL ASSEMBLY - Cheng Gray (0914)

$

$

Not available

$

$

Cub Cadet 634-0051

Rim Only w/ Ball Bearing

Variations

Cub Cadet 634-0051-0629

RIM ASSEMBLY (6.0 x 4.5) - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 634-0051-0662

RIM ASSEMBLY (6.0 x 4.5) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 634-0051-0499

RIM ASSEMBLY (6.0 x 4.5) - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 634-0051-0674

RIM ASSEMBLY (6.0 x 4.5) - YARDMAN YELLOW (0674)

$

$

Not available

$

$

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 734-1731

Tire Only, Square Shoulder

Variations

Cub Cadet 734-1731-0902

Turf Tire - Dico (0902)

$47.99

$

In Stock, Qty 12

0

Cub Cadet 734-1731-0901

Tire, 15 X 6 Square Tread - Carlisle (0901)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1731-0904

Tire, 15 X 6 Square Tread - Cheng (0904)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1731-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$52.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1731-0906

Tire, 15 X 6 Square Tread - Kenda (0906)

$52.99

$

Usually ships in 3-6 days

0

$117.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.99

$

In Stock, Qty 20+

0

38

Cub Cadet 783-0653A

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

Cub Cadet 783-0653A-0498

Steering Support Bracket - OLD CUB YELLOW (0498)

$95.99

$

In Stock, only 3 left!

0

Cub Cadet 783-0653A-0637

Steering Support Bracket - POWDER BLACK (0637)

$95.99

$

In Stock, only 3 left!

0

Cub Cadet 783-0653A-0665

Steering Support Bracket - YARDMAN GREEN (0665)

$95.99

$

In Stock, only 3 left!

0

Cub Cadet 783-0653A-0691

Steering Support Bracket - BLACK JACK (0691)

$95.99

$

In Stock, only 3 left!

0

$95.99

$

In Stock, only 3 left!

0

39

Cub Cadet 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 736-0331

Bell Washer, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 738-0140

Shoulder Screw, .435 x .178, 5/16 x .56

$5.99

$

In Stock, Qty 10

0

42

Cub Cadet 736-0242

Bell Washer, .34 x.872

$4.99

$

In Stock, Qty 20+

0

43

Cub Cadet 710-0643

Hex Bolt, 5/16-18 X 1

$7.49

$

In Stock, Qty 20+

0
