1170 (13BD608G101) - Cub Cadet Lawn Tractor (SN: 1H019H - 1H310H) Engine (Single) Filters & General Assembly (Model 1170) Parts Diagram

Lawn Tractor

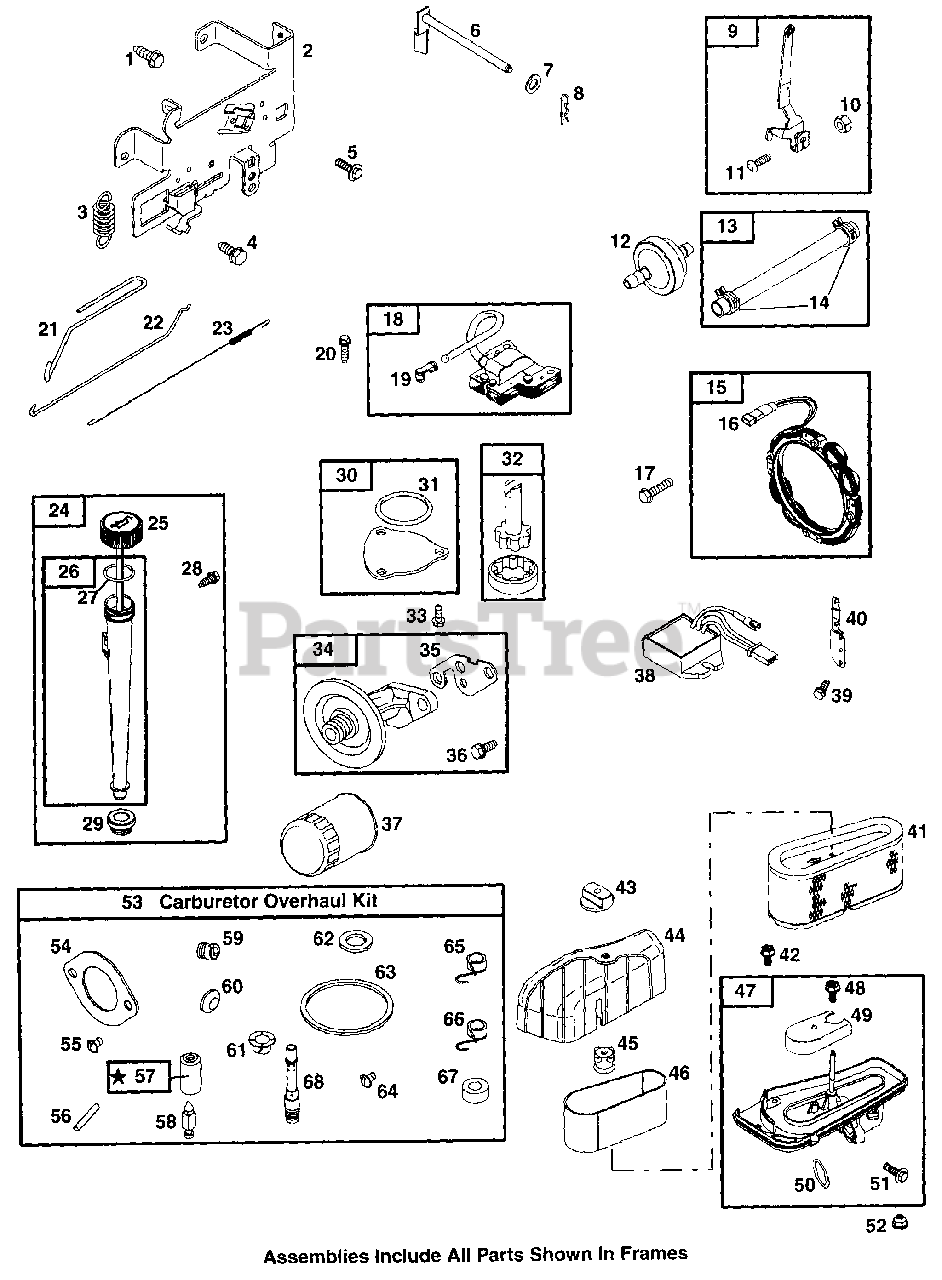

Engine (Single) Filters & General Assembly (Model 1170) Parts Diagram

  • Title

1

Cub Cadet BS-691693

Screw (Control Bracket)

$3.99

$

In Stock, only 1 left!

0

2

Cub Cadet BS-694042

Control Bracket
(Superseded to BS-597209)

$38.99

$

In Stock, only 4 left!

0

3

Cub Cadet BS-692208

Governor Spring
(Superseded to BS-796260)

$4.99

$

In Stock, Qty 11

0

4

Cub Cadet BS-690661

Screw (Remote Choke Stop)

$3.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-693675

Screw (Remote Choke Stop)

$3.99

$

In Stock, only 1 left!

0

6

Cub Cadet BS-692012

Governor Crank

$13.99

$

In Stock, only 4 left!

0

7

Cub Cadet BS-691691

Washer (Governor Crank)

$3.99

$

In Stock, Qty 5

0

8

Cub Cadet BS-691620

Cotter Pin
(Superseded to BS-93306)

$

$

Not available

9

Cub Cadet BS-691374

Governor Control Lever

$26.99

$

In Stock, Qty 6

0

10

Cub Cadet BS-691251

Nut (Governor Control Lever)

$3.49

$

In Stock, Qty 11

0

11

Cub Cadet BS-691119

Bolt (Governor Control Lever)

$4.49

$

In Stock, Qty 19

0

12

Cub Cadet BS-298090

Fuel Filter
(Superseded to BS-298090S)

$5.49

$

In Stock, Qty 20+

0

13

Cub Cadet BS-691050

Fuel Line
(Superseded to 751-10349-16)

Note: (Cut to Required Length)

$18.99

$

In Stock, Qty 13

0

14

Cub Cadet BS-95162

Hose Clamp
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet BS-691064

Alternator
(Superseded to BS-592830)

$101.99

$

In Stock, only 1 left!

0

16

Cub Cadet BS-399916

Alternator Wire

$12.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-691183

Screw (Alternator)
(Superseded to BS-93621)

$

$

Not available

18

Cub Cadet BS-495859

Magneto Armature
(Superseded to BS-591459)

$53.99

$

In Stock, Qty 20+

0

19

Cub Cadet BS-692424

Sparkplug Terminal

$5.99

$

In Stock, only 2 left!

0

20

Cub Cadet BS-691061

Screw (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

21

Cub Cadet BS-691840

Choke Link

$8.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-691841

Mechanical Governor Link

$9.49

$

In Stock, Qty 8

0

23

Cub Cadet BS-691842

Governor Link Spring

$11.99

$

In Stock, Qty 6

0

24

Cub Cadet BS-496415

Dipstick/Tube Assembly

$47.99

$

In Stock, only 2 left!

0

25

Cub Cadet BS-692014

Dipstick

$25.99

$

In Stock, only 1 left!

0

26

Cub Cadet BS-691398

Dipstick Tube

$15.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-691870

Dipstick/Tube Seal

$4.49

$

In Stock, only 2 left!

0

28

Cub Cadet BS-691002

Screw (Dipstick Tube)

$8.49

$

In Stock, only 1 left!

0

29

Cub Cadet BS-281370

Dipstick Tube Seal
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

30

Cub Cadet BS-499613

Oil Pump Cover

$13.99

$

In Stock, only 1 left!

0

31

Cub Cadet BS-690589

O-Ring Seal (Oil Pump Cover)

$8.99

$

In Stock, only 3 left!

0

32

Cub Cadet BS-499054

Oil Pump
(Superseded to BS-795259)

$32.99

$

In Stock, Qty 12

0

33

Cub Cadet BS-691033

Screw (Oil Pump Cover)

$

$

Not available

34

Cub Cadet BS-496744

Oil Filter Adapter

$61.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-691317

Oil Adapter Gasket

$4.99

$

In Stock, only 1 left!

0

36

Cub Cadet BS-691118

Screw (Oil Filter Adapter)

$2.99

$

Usually ships in 2-12 days

0

37

Cub Cadet BS-492932

Oil Filter
(Superseded to BS-492932S)

$12.99

$

In Stock, Qty 20+

0

38

Cub Cadet BS-691185

Regulator
(Superseded to BS-845907)

$61.99

$

In Stock, Qty 18

0

39

Cub Cadet BS-692598

Screw (Mounting Bracket)

$3.99

$

Usually ships in 2-12 days

0

40

Cub Cadet BS-694475

Mounting Bracket

$24.99

$

Usually ships in 2-12 days

0

41

Cub Cadet BS-496894

Air Cleaner Cartridge Filter
(Superseded to BS-496894S)

$19.99

$

In Stock, Qty 17

0

42

Cub Cadet BS-692129

Screw (Air Cleaner Base)

$5.49

$

Usually ships in 2-12 days

0

43

Cub Cadet BS-691668

Air Cleaner Knob

$5.49

$

In Stock, only 4 left!

0

44

Cub Cadet BS-692502

Air Cleaner Cover

$31.99

$

Usually ships in 2-12 days

0

45

Cub Cadet BS-692297

Air Cleaner Stud Seal
(Superseded to BS-691668)

$5.49

$

In Stock, only 4 left!

0

46

Cub Cadet BS-272403

Pre-Cleaner Filter
(Superseded to BS-272403S)

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet BS-693686

Air Cleaner Base

$

$

Not available

48

Cub Cadet BS-690703

Screw (Carburetor Shield)

$3.99

$

Usually ships in 2-12 days

0

49

Cub Cadet BS-690678

Carburetor Shield

$10.99

$

Usually ships in 2-12 days

0

50

Cub Cadet BS-691917

O-Ring Seal (Air Cleaner Base)

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet BS-693675

Screw (Cable Clamp)

$3.99

$

In Stock, only 1 left!

0

52

Cub Cadet BS-690958

Nut (Air Cleaner Base)

$3.49

$

In Stock, Qty 7

0

53

Cub Cadet BS-690191

Carburetor Overhaul Kit

$69.99

$

In Stock, only 2 left!

0

54

Cub Cadet BS-692137

Intake Gasket

$3.49

$

In Stock, Qty 20+

0

55

Cub Cadet BS-691636

Screw (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

56

Cub Cadet BS-690525

Float Hinge Pin

$4.99

$

Usually ships in 2-12 days

0

57

Cub Cadet BS-690577

Inlet Seat (Gravity Feed)

$7.99

$

In Stock, Qty 16

0

Cub Cadet BS-691780

Inlet Seat (Pump Feed)

$10.99

$

In Stock, only 1 left!

0

58

Cub Cadet BS-231855

Float Needle Valve
(Superseded to BS-231855S)

$6.99

$

In Stock, Qty 20+

0

59

Cub Cadet BS-692408

Main Jet (Standard)

$17.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-692411

Main Jet (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

60

Cub Cadet BS-695005

Welch Plug

$4.99

$

In Stock, only 1 left!

0

61

Cub Cadet BS-690602

Throttle Shaft Bushing

$9.49

$

In Stock, only 1 left!

0

62

Cub Cadet BS-692255

Sealing Washer

$5.49

$

In Stock, Qty 16

0

63

Cub Cadet BS-281165

Float Bowl Gasket
(Superseded to BS-281165S)

$4.99

$

In Stock, Qty 20+

0

64

Cub Cadet BS-691636

Screw (Choke Valve)

$3.99

$

In Stock, only 2 left!

0

65

Cub Cadet BS-690801

Spring/Seal Assy

Note: (LMT 155, 156)

$8.49

$

In Stock, only 1 left!

0

66

Cub Cadet BS-690802

Spring/Seal Assy

Note: (LMT 153, 154)

$9.49

$

Usually ships in 2-12 days

0

67

Cub Cadet BS-691326

Throttle Shaft Seal

$5.49

$

In Stock, only 1 left!

0

68

Cub Cadet BS-692412

Carburetor Nozzle

$30.99

$

In Stock, only 2 left!

0
