1170 (13CD608G101) - Cub Cadet Lawn Tractor (SN: 1I010H - 1H311H) (2001) 1170 Engine Accessories Parts Diagram

Lawn Tractor

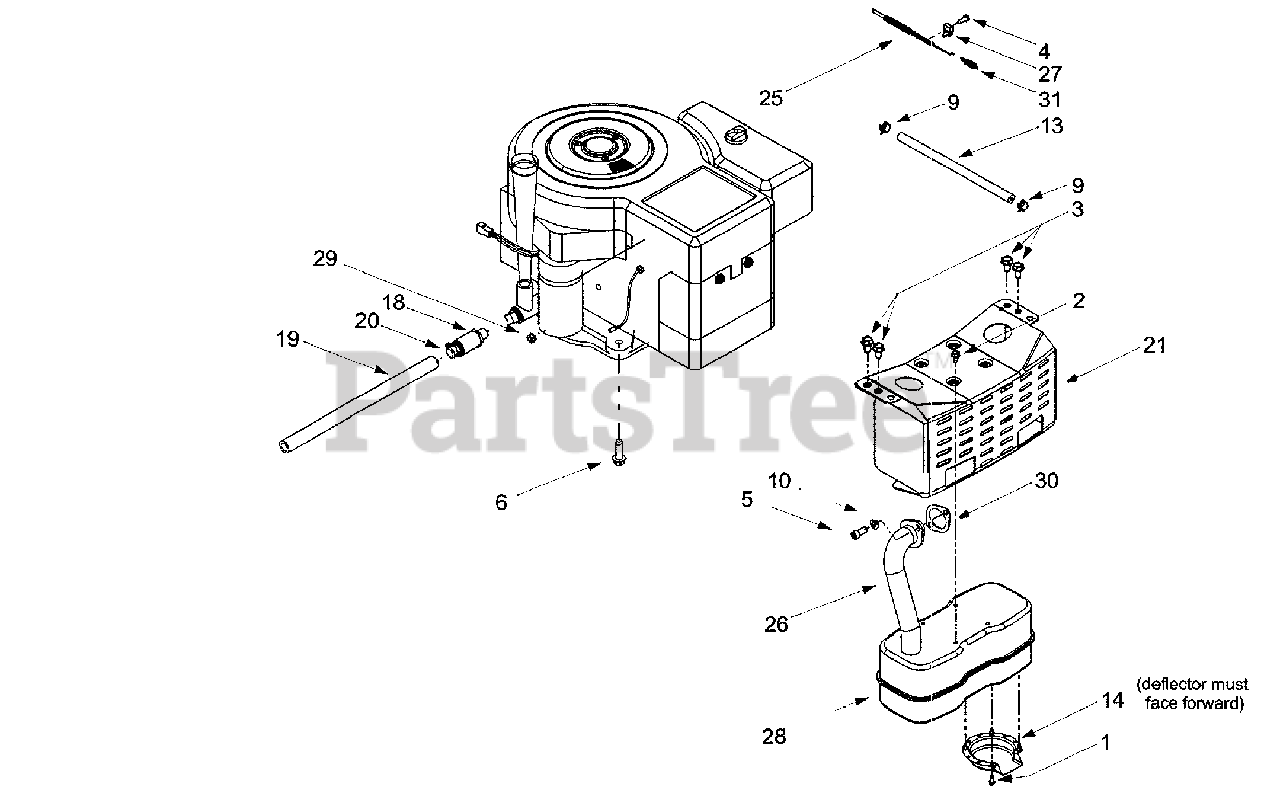

1170 Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 710-0227

Self-tapping Screw, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0599

Self-tapping Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.99

$

In Stock, Qty 8

0

4

Cub Cadet 710-1237

Screw, #10-32 x .625

$4.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-1314

Socket Cap Screw, 5/16-18 x .625
(Superseded to 710-1314A)

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 12

0

9

Cub Cadet 726-0205

Hose Clamp

$4.49

$

In Stock, Qty 15

0

10

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 751-0535

Fuel Line Hose

$

$

Currently unavailable

14

Cub Cadet 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$14.99

$

In Stock, only 4 left!

0

18

Cub Cadet 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$25.99

$

In Stock, Qty 19

0

19

Cub Cadet 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$12.99

$

In Stock, only 4 left!

0

20

Cub Cadet 751-3142

Oil Drain Cap

$4.99

$

In Stock, Qty 8

0

21

Cub Cadet 783-0615

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

783-0615-0637

Cub Cadet 783-0615-0637

Muffler Bracket - POWDER BLACK (0637)

$67.99

$

In Stock, only 2 left!

0

$67.99

$

In Stock, only 2 left!

0

25

Cub Cadet 746-1084

Throttle/Choke Cable
(Superseded to 946-1084)

Note: (Industrial Plus Single)

$33.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 751-0619

Exhaust Pipe
(Superseded to 751-0619B)

Note: (Industrial Plus Single)

$80.99

$

In Stock, only 1 left!

0

27

Cub Cadet 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 2 left!

0

28

Cub Cadet 751-0617

Muffler, Single Inlet
(Superseded to 951-0617C)

$158.99

$

In Stock, Qty 9

0

29

Cub Cadet 712-0271

Hex Sems Nut, 1/4-20

Note: (For starter cable)

$4.99

$

In Stock, Qty 13

0

30

Cub Cadet 721-0208

Exhaust Gasket
(Superseded to BS-692236)

Note: (Industrial Plus Single)

$5.49

$

In Stock, Qty 20+

0

31

Cub Cadet 732-0966

Extension Spring, .275 x 1.25

$

$

Not available
