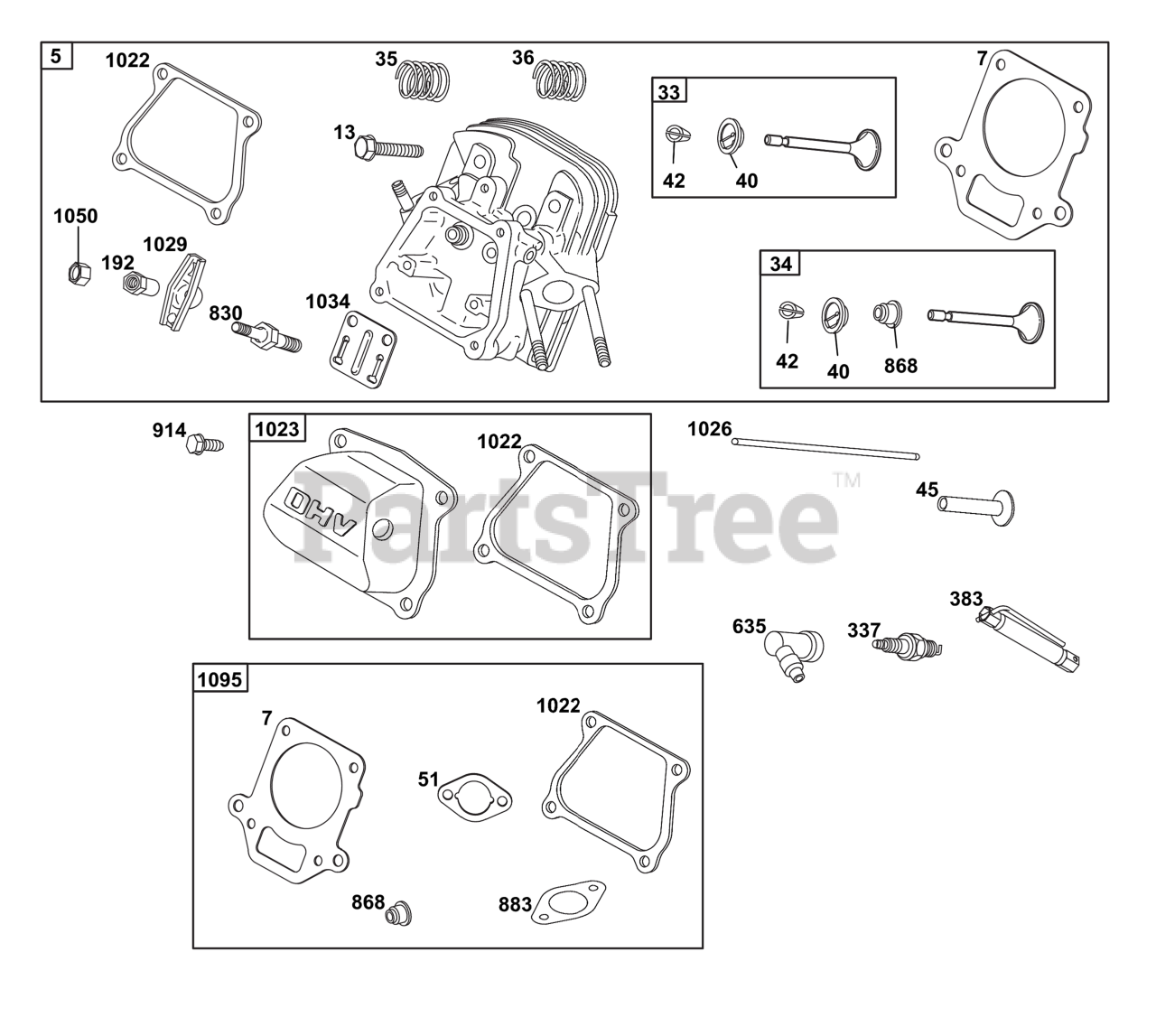

117432-0624-B1 - Briggs & Stratton Horizontal Engine Cylinder Head Group Parts Diagram

Horizontal Engine

Cylinder Head Group Parts Diagram

  • Title

5

Briggs & Stratton 715004

HEAD, Cylinder

$359.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 710021

GASKET, Cylinder Head

$14.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 710020

SCREW

Note: (Cylinder Head)

$7.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 715002

VALVE, Exhaust

$48.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 715003

VALVE, Intake

$31.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 710011

SPRING, Valve

Note: (Intake)

$6.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 710011

SPRING, Valve

Note: (Exhaust)

$6.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 710012

RETAINER, Valve

$5.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 715130

KEEPER, Valve
(Superseded to 716520)

Note: (No Longer Available)

$34.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 710008

TAPPET, Valve

$20.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 710060

GASKET, Intake

$4.49

$

In Stock, only 1 left!

0

192

Briggs & Stratton 710015

ADJUSTER. Rocker Arm

$8.49

$

In Stock, only 1 left!

0

337

Briggs & Stratton 792015

PLUG, Spark

$6.99

$

In Stock, Qty 8

0

383

Briggs & Stratton 19374

WRENCH, Spark Plug
(Superseded to 19576S)

$5.99

$

In Stock, only 3 left!

0

635

Briggs & Stratton 710634

BOOT, Spark Plug

$12.99

$

Usually ships in 2-12 days

0

830

Briggs & Stratton 710016

STUD, Rocker Arm

$7.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 711634

SEAL, Valve

$10.99

$

Usually ships in 2-12 days

0

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

914

Briggs & Stratton 710023

SCREW

Note: (Rocker Cover)

$3.99

$

In Stock, Qty 15

0

1022

Briggs & Stratton 710024

GASKET, Rocker Cover

$7.49

$

Usually ships in 2-12 days

0

1023

Briggs & Stratton 715005

COVER, Rocker

$52.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 710013

ROD, Push

$22.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 710014

ARM, Rocker

$49.99

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 710017

GUIDE, Push Rod

$12.99

$

Usually ships in 2-12 days

0

1050

Briggs & Stratton 710007

ADJUSTER. Rocker Arm

Note: (Rocker Arm)

$4.49

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 716118

GASKET SET, Valve

Note: (Service Kits can include parts not for this engine.)

$22.99

$

Usually ships in 2-12 days

0
