118-506C000 - MTD Walk-Behind Mower (1988) Parts01 Parts Diagram

Walk-Behind Mower

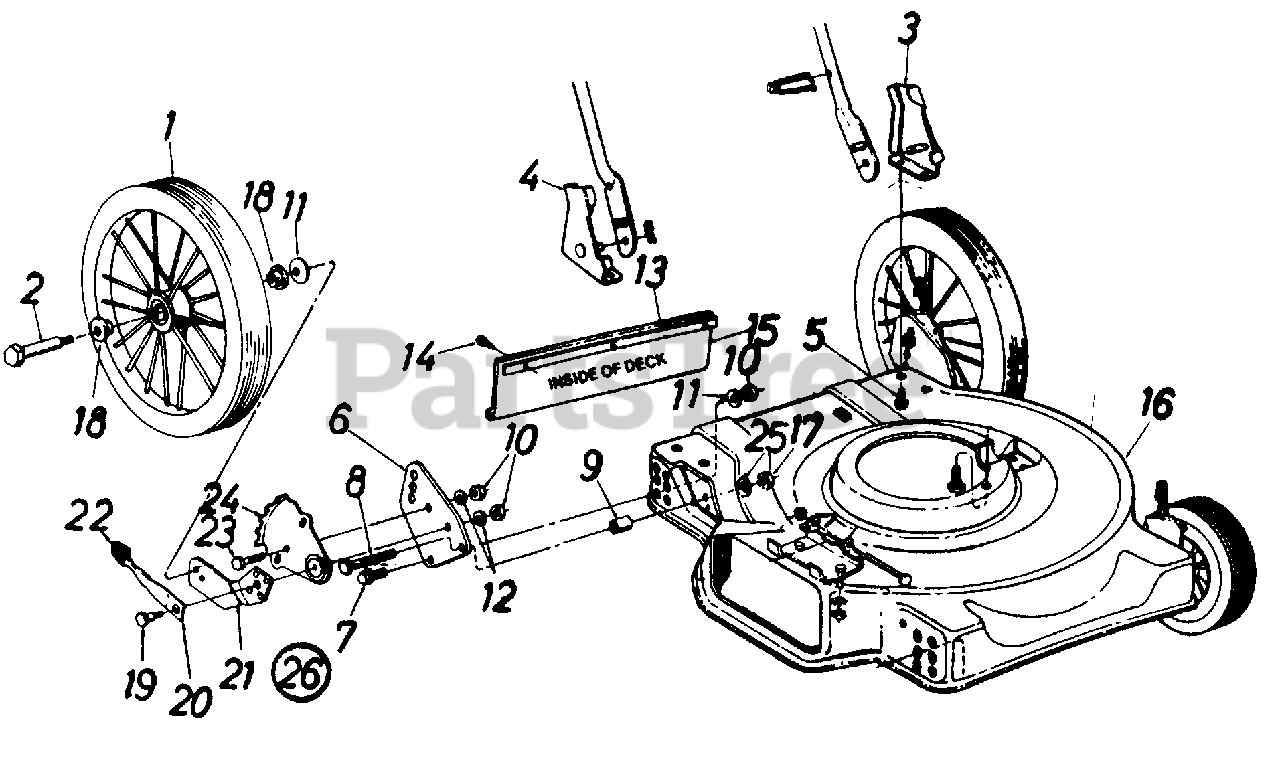

Parts01 Parts Diagram

  • Title

1

MTD 734-0244

Rear Wheel Ass'y. Comp.

$

$

Not available

2

MTD 738-0481

Rear Axle Bolt
(Superseded to 938-0481A)

$6.49

$

In Stock, Qty 19

0

3

MTD 12935

Handle Mount Brkt.-L.H.

$

$

Not available

4

MTD 12936

Handle Mount Brkt.-R.H.

$

$

Not available

5

MTD 710-0603

Hex B-Tap Scr. 5/16-18 x .5"

$4.49

$

Usually ships in 3-6 days

0

6

MTD 16645

Mounting Plate

$

$

Not available

7

MTD 710-0209

Hex Sems Bolt 3/8-16 x .62"

$

$

Not available

8

MTD 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

9

MTD 750-0699

Spacer

$

$

Currently unavailable

10

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

11

MTD 736-0105

Bell-Wash. .40" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

12

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

13

MTD 14836

Retaining Strip

$

$

Not available

14

MTD 710-0776

Hex AB-Tap Scr. 1/4" x .62"
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

15

MTD 731-0794

Rear Flap Ass'y.

$

$

Not available

16

MTD 16526

22" Deck Ass'y.

$

$

Currently unavailable

17

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

18

MTD 748-0147

Flange Bearing

$

$

Not available

19

MTD 738-0507

Shoulder Bolt
(Superseded to 938-0507B)

$4.49

$

In Stock, Qty 20+

0

20

MTD 732-0417

Spring Lever
(Superseded to 732-0417A)

$12.99

$

Usually ships in 3-6 days

0

21

MTD 14765

Pivot Bar-R.H.

$19.99

$

Usually ships in 3-6 days

0

MTD 14766

Pivot Bar-L.H.

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

22

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

23

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$3.99

$

In Stock, Qty 17

0

24

MTD 14764

Index Plate
(Superseded to 14764C)

$7.99

$

Usually ships in 3-6 days

0

25

MTD 736-0242

Bell-Wash. .345" I.D.

$3.99

$

In Stock, Qty 20+

0

26

MTD 16106

Rear Height Adj. Ass'y. Comp.-R.H.

$

$

Not available

MTD 16107

Rear Height Adj. Ass'y. Comp.-L.H.

Note: (Not Shown)

$

$

Not available
