118 R (121-118R100) - Cub Cadet Walk-Behind Mower (1991) Parts For Rotary Mower Part 2 Parts Diagram

Walk-Behind Mower

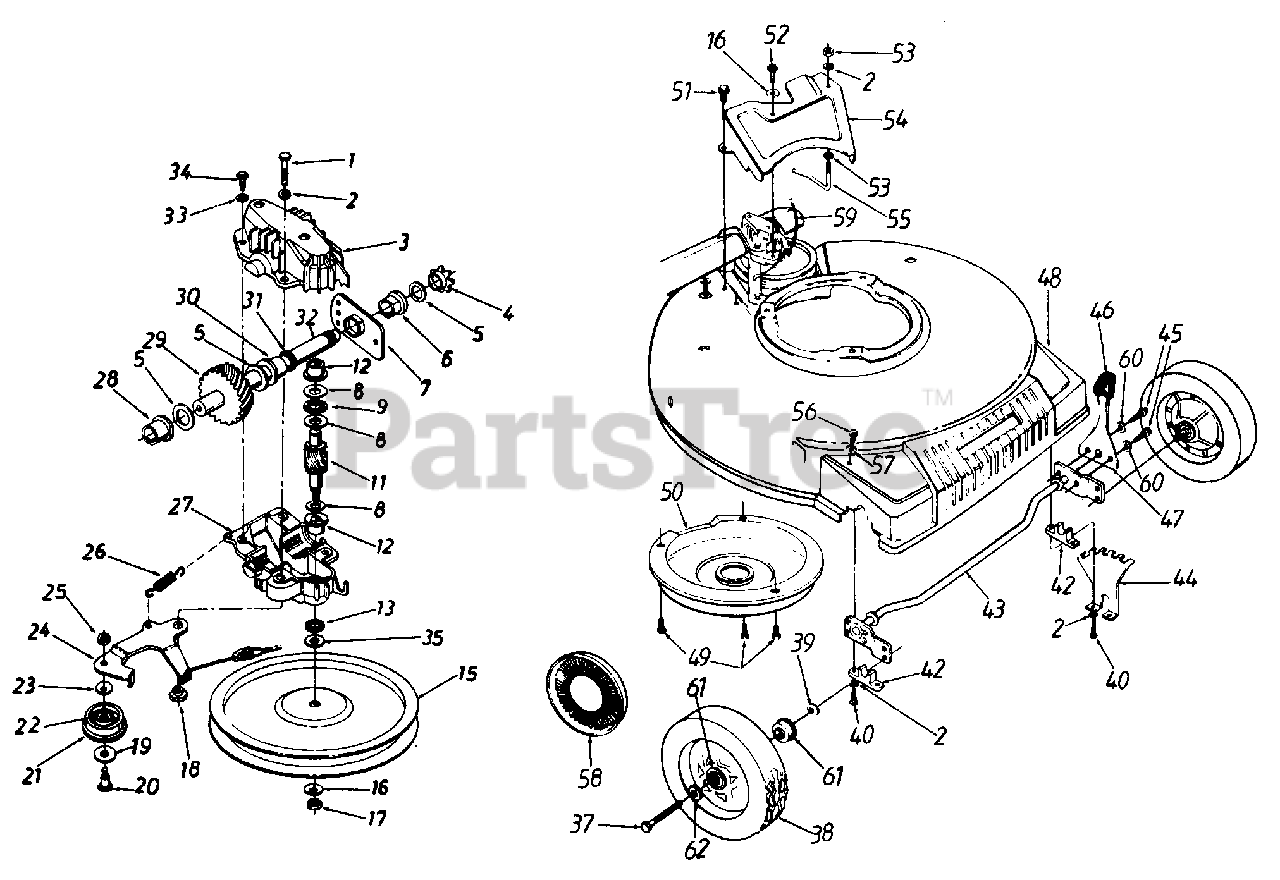

Parts For Rotary Mower Part 2 Parts Diagram

  • Title

1

Cub Cadet 710-1062

SCREW-HEX

$5.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

3

Cub Cadet 717-0418A

HOUSING HALF-UPPER

$

$

Not available

4

Cub Cadet 713-0400

SPROCKET-7T

$

$

Not available

5

Cub Cadet 736-0336

WASHER-FL
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 741-0413

BEARING-HEX FLANGE

$8.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 16500A

BEARING-CUP HEX
(Superseded to 16500A-0637)

Variations

Cub Cadet 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0314

WASHER-THRUST.382 X .684

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 741-0479

BEARING-THRUST

$10.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 717-1216

SHAFT-PINION 11 T
(Superseded to 917-1216)

$

$

Not available

12

Cub Cadet 748-0208A

BEARING-FLANGE

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 721-0212

SEAL-OIL-.375 ID

$

$

Not available

15

Cub Cadet 756-0330A

PULLEY

$

$

Not available

16

Cub Cadet 736-0270

WASHER-SPRING BELL

$3.99

$

In Stock, Qty 13

0

17

Cub Cadet 712-0351

NUT-LH THD-1/4 X 28
(Superseded to 712-04326)

$13.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 738-0440

SPACER-SHLD

$5.49

$

In Stock, Qty 6

0

19

Cub Cadet 736-0344

WASHER-FL .995 X .032

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 738-0826

SCREW-SHLD

$11.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 756-0558

PULLEY
(Superseded to 956-0558)

$11.99

$

In Stock, Qty 5

0

22

Cub Cadet 741-0556

BEARING-NEEDLE

$15.99

$

In Stock, only 4 left!

0

23

Cub Cadet 736-0270

BELL-WASH

$3.99

$

In Stock, Qty 13

0

24

Cub Cadet 17052A

BRACKET ASSY-IDLER

$

$

Not available

25

Cub Cadet 712-0138

NUT-HEX 1/4-28

$6.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-0357

SPRING-EXTENSION
(Superseded to 932-0357A)

$3.99

$

In Stock, Qty 5

0

27

Cub Cadet 717-0419A

HOUSING HALF-LOWER

$

$

Not available

28

Cub Cadet 741-0415

BEARING-FLANGE
(Superseded to 941-0415)

$9.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 717-0422A

SHAFT-ASSY W/GEAR
(Superseded to 717-0616A)

$

$

Not available

30

Cub Cadet 741-0414

BEARING-FLANGE

$9.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 721-0213

SEAL-OIL

$9.99

$

In Stock, Qty 9

0

32

Cub Cadet 738-0607A

SHAFT-ASSY W/GEAR
(Superseded to 717-0616A)

$

$

Not available

33

Cub Cadet 736-0722

WASHER-LOCK-#10

$6.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 710-0436

SCREW-HEX WASH HD TAP
(Superseded to 710-0651)

$3.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0410

WASHER-HEX
(Superseded to 936-0410)

$

$

Not available

Cub Cadet 717-0417B

TRANSMISSION-COMP
(Superseded to 917-0417B)

$234.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 738-0102

SCREW-SHLD .498 DIA X 1.450

$9.49

$

In Stock, Qty 11

0

38

Cub Cadet 734-1517A

WHEEL ASSY W/TIRE
(Superseded to 734-1517B)

$63.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet 710-0588

SCREW-HEX WASH SF TAPP
(Superseded to 710-0788)

$6.99

$

In Stock, only 4 left!

0

42

Cub Cadet 741-0492A

BUSHING-BLOCK

$5.99

$

In Stock, Qty 12

0

43

Cub Cadet 17733

AXLE ASSY-FR

$

$

Not available

44

Cub Cadet 17059

BRACKET-HGT-ADJ

$

$

Not available

45

Cub Cadet 710-0653

SCREW-TAP 1/4-20 X .38

$4.49

$

In Stock, Qty 16

0

46

Cub Cadet 720-0190

KNOB
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

47

Cub Cadet 732-0639

LEVER-SPRING

$

$

Not available

48

Cub Cadet 731-0865

FRONT END-PLASTIC
(Superseded to 931-0865C)

$

$

Not available

49

Cub Cadet 710-0352

SCREW-HEX B-TAP 1/4 X .38

$4.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 782-7522

COVER-BELT

$

$

Not available

51

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet 710-0896

SCREW-HEX B-TAP 1/4-.62

Note: (Special)

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

54

Cub Cadet 17058A

GUARD-BELT
(Superseded to 17058A-0637)

Variations

Cub Cadet 17058A-0637

GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

55

Cub Cadet 747-0549

GUARD-BELT

$

$

Not available

56

Cub Cadet 710-1001

SCREW-AB TAP
(Superseded to 710-1242)

$4.49

$

In Stock, Qty 19

0

57

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$3.99

$

In Stock, Qty 20+

0

58

Cub Cadet 731-0982A

HUB CAP
(Superseded to 731-0982C)

$10.99

$

In Stock, Qty 20+

0

59

Cub Cadet 746-0712A

CABLE-CLUTCH CONTROL

$

$

Not available

60

Cub Cadet 736-0222

WASHER-EXTERN L 1/4

$5.49

$

In Stock, only 3 left!

0

61

Cub Cadet 741-0180

BEARING-BALL
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 736-0232

WASHER-WAVE .530 X .780 X .013

$4.49

$

In Stock, Qty 18

0
