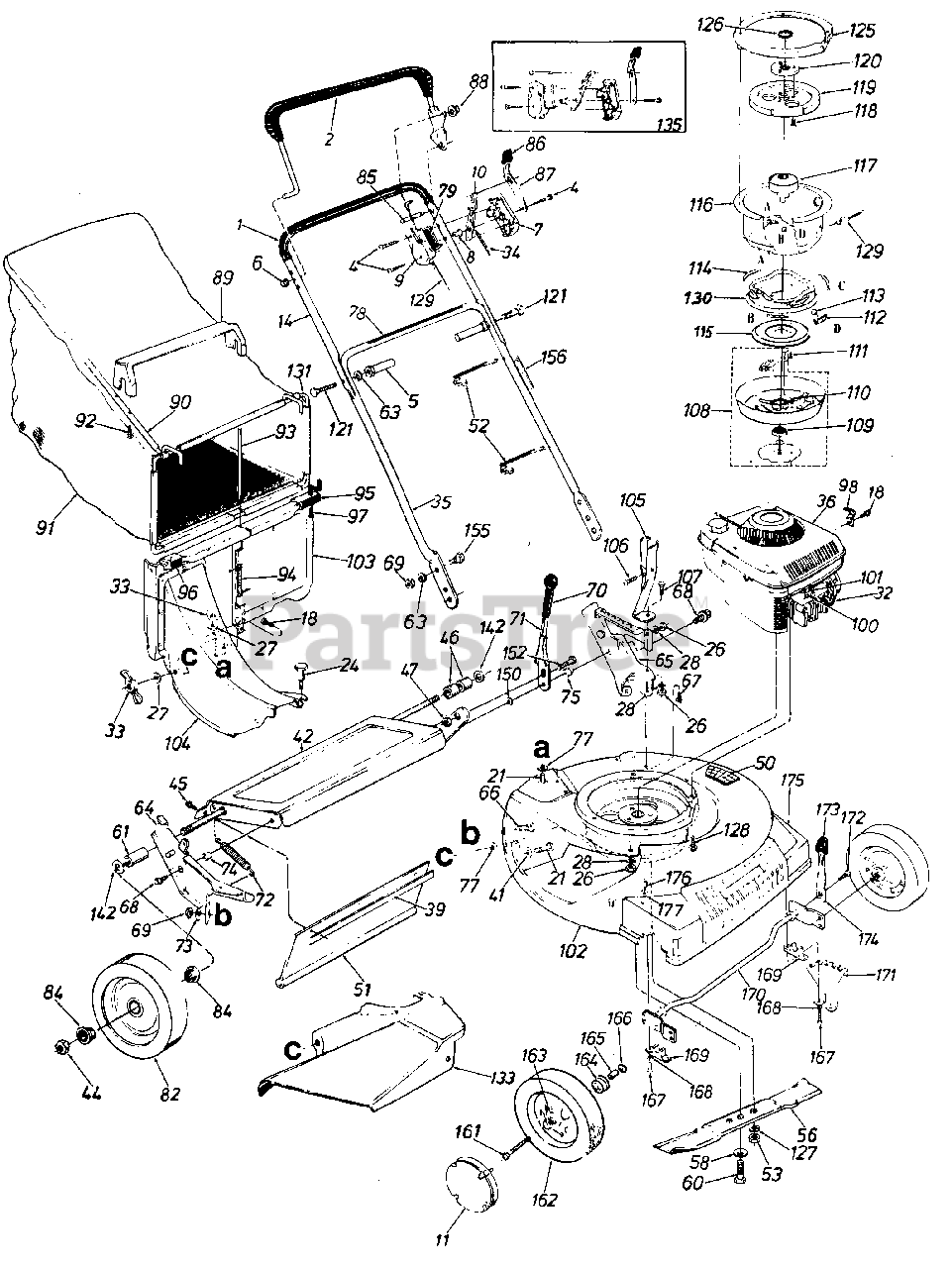

11864-8 - MTD Walk-Behind Mower (1988) > Parts Diagrams (1) > 21"

  • Title
718-0145

1

Grip

Part# 718-0145

OEM Warranty Repair Part for MTD

Currently unavailable

731-0609

2

Control Handle Ass'y. L.H.

Part# 731-0609

OEM Warranty Repair Part for MTD

Not available

710-0796

4

Truss Mach. Scr. #12 x 1.50" Lg.

Part# 710-0796

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.81

711-0807

5

Catcher Support Pin

Part# 711-0807

OEM Warranty Repair Part for MTD

Not available

726-0135

6

Push Cap

Part# 726-0135

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.76

731-0817

7

Control Panel Half

Part# 731-0817

OEM Warranty Repair Part for MTD

Not available

731-0524

8

Control Disc Pin

Part# 731-0524

OEM Warranty Repair Part for MTD

Not available

731-0816

9

Clutch Panel Half

Part# 731-0816

OEM Warranty Repair Part for MTD

Not available

731-0528

10

Throttle Control Lever

Part# 731-0528 (Superseded to 931-0972)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.02

731-0982

11

Hub Cap

Part# 731-0982 (Superseded to 731-0982C)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.74

749-0436

14

Upper Handle Chrome

Part# 749-0436 (Superseded to 749-0438D-0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $28.05

710-0429

18

Hex B-Tap Scr #10 x .38"

Part# 710-0429 (Superseded to 910-0429)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.57

710-0134

21

Carriage Bolt 1/4-20 x .62"

Part# 710-0134

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.98

738-0704

24

Shoulder Bolt .312 Dia. x .18 Lg. Special

Part# 738-0704 (Superseded to 938-0704)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.13

712-0287

26

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0270

27

Bell-Wash. 1/4" I.D.

Part# 736-0270

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0329

28

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

735-0639

32

Spark Plug Insulator

Part# 735-0639

OEM Warranty Repair Part for MTD

Not available

712-0109

33

Wing Nut

Part# 712-0109

OEM Warranty Repair Part for MTD

Not available

746-0672

34

Throttle Control Wire 58"

Part# 746-0672 (Superseded to 946-0674A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $13.58

749-0726

35

Lower Handle Chrome

Part# 749-0726

OEM Warranty Repair Part for MTD

Not available

36

Engine

Part#

Not available

14835

39

Retaining Strip

Part# 14835

OEM Warranty Repair Part for MTD

Not available

736-0204

41

Fl-Wash. .344" I.D. x .62"

Part# 736-0204

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.08

16131

42

Rear Axle Ass'y.

Part# 16131

OEM Warranty Repair Part for MTD

Not available

712-0346

44

Hex L-Nut 1/2-20 Thd.

Part# 712-0346 (Superseded to 912-0346)

OEM Warranty Repair Part for MTD

Not available

710-0776

45

Hex AB-Tap Scr. 1/4 x .62"

Part# 710-0776 (Superseded to 710-0896)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.06

711-0500

46

Spacer.526" I.D.

Part# 711-0500

OEM Warranty Repair Part for MTD

Not available

712-0296

47

Hex Patch L-Nut 3/8-24 Thd.

Part# 712-0296 (Superseded to 912-0296)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.71

731-0756

50

Rubber Foot Pad

Part# 731-0756

OEM Warranty Repair Part for MTD

Currently unavailable

731-0671

51

Rear Flap

Part# 731-0671

OEM Warranty Repair Part for MTD

Currently unavailable

726-0240

52

Cable Tie

Part# 726-0240 (Superseded to 725-0157)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.74

712-0328

53

Hex Nut 3/8-24 Thd. (Grade 8)

Part# 712-0328 (Superseded to 712-0241)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.10

742-0306

56

21" Blade

Part# 742-0306 (Superseded to 942-0621)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $25.36

736-0412

58

Bell-Wash. .460" I.D. x .880"

Part# 736-0412

OEM Warranty Repair Part for MTD

Not available

710-1002

60

Hex Bolt 7/16-20 x 2.0"

Part# 710-1002

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

711-0313

61

Sleeve .526" I.D.

Part# 711-0313

OEM Warranty Repair Part for MTD

Not available

736-0119

63

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.41

16136

64

R.H. Handle Wheel Brkt. Ass'y.

Part# 16136 (Superseded to 16136C-0637)

OEM Warranty Repair Part for MTD

Not available

16137

65

L.H. Handle Wheel Brkt. Ass'y.

Part# 16137 (Superseded to 16137C-0637)

OEM Warranty Repair Part for MTD

Not available

710-0260

66

Carriage Bolt 5/16-18 x .62"

Part# 710-0260 (Superseded to 710-0260A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.98

710-0603

67

Hex Wash. Hd. B-Tap Scr. 5/16-18

Part# 710-0603

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.34

710-0654

68

Hex Wash. Hd. TT-Tap Scr. 3/8-16

Part# 710-0654 (Superseded to 710-0654A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

712-0267

69

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Not available

720-0143

70

Grip

Part# 720-0143

OEM Warranty Repair Part for MTD

Not available

732-0473

71

Height Adj. Lever

Part# 732-0473 (Superseded to 732-0473B)

OEM Warranty Repair Part for MTD

Not available

732-0481

72

Extension Spring 3.80" Lg.

Part# 732-0481 (Superseded to 932-0481)

OEM Warranty Repair Part for MTD

Not available

736-0242

73

Bell-Wash. 5/16" I.D.

Part# 736-0242

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

750-0526

74

Spacer.385" I.D.

Part# 750-0526

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

750-0624

75

Shld. Spacer .5" Dia.

Part# 750-0624

OEM Warranty Repair Part for MTD

Not available

726-0233

77

Bolt Retainer 1/4 x .50" O.D.

Part# 726-0233

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.12

777-5815

78

Instruction Label

Part# 777-5815

OEM Warranty Repair Part for MTD

Currently unavailable

777-5813

79

Control Label

Part# 777-5813

OEM Warranty Repair Part for MTD

Currently unavailable

734-1517

82

Wheel Ass'y. Comp. Rear

Part# 734-1517 (Superseded to 734-1517B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $48.26

741-0180

84

Flange Bali Bearing 1/2" I.D.

Part# 741-0180 (Superseded to 941-0180)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $13.98

731-0607

85

Lock Pin .314" Dia. x 1.75"

Part# 731-0607

OEM Warranty Repair Part for MTD

Not available

720-0190

86

Spring Lever Knob

Part# 720-0190 (Superseded to 720-0426)

OEM Warranty Repair Part for MTD

Not available

732-0401

87

Lockout Spring

Part# 732-0401

OEM Warranty Repair Part for MTD

Not available

726-0245

88

Push Cap

Part# 726-0245

OEM Warranty Repair Part for MTD

Not available

731-0801

89

Bag Handle

Part# 731-0801

OEM Warranty Repair Part for MTD

Not available

749-0723

90

Rear Catcher Frame

Part# 749-0723

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available FRAME-CATC

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

764-0240

91

Grassbag

Part# 764-0240

OEM Warranty Repair Part for MTD

Not available

710-0969

92

Truss Mach. B-Tap Scr. #12 x 1.5" Lg.

Part# 710-0969

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

747-0547

93

Chute Rod .188" Dia.

Part# 747-0547

OEM Warranty Repair Part for MTD

Not available

732-0558

94

Torsion Spring

Part# 732-0558

OEM Warranty Repair Part for MTD

Currently unavailable

731-0882

95

Door Clip

Part# 731-0882

OEM Warranty Repair Part for MTD

Not available

731-0883

96

Panel Clip

Part# 731-0883

OEM Warranty Repair Part for MTD

Not available

710-0895

97

Hex AB-Tap Scr. 1/4 x .75" Lg.

Part# 710-0895

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.63

12894

98

Casing Clamp

Part# 12894

OEM Warranty Repair Part for MTD

Not available

710-0436

100

Hex B-Tap Scr. #10 x .62"

Part# 710-0436 (Superseded to 710-0651)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.53

751-0442

101

Casing Clamp

Part# 751-0442

OEM Warranty Repair Part for MTD

Not available

17050

102

21" Deck Ass'y.

Part# 17050

OEM Warranty Repair Part for MTD

Variations

MTD/TROY-BILT RED (0638)

No Longer Available DECK ASM

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for MTD

Not available

17062

103

Chute Door

Part# 17062

OEM Warranty Repair Part for MTD

Not available

731-0864

104

Top Discharge Chute Ass'y.

Part# 731-0864

OEM Warranty Repair Part for MTD

Not available

17061

105

Grass Catcher Bracket

Part# 17061

OEM Warranty Repair Part for MTD

Not available

710-0286

106

Truss Mach. Scr. 1/4-20 x .50" Lg.

Part# 710-0286

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.10

710-0289

107

Hex Bolt 1/4-20 x .50" Lg.

Part# 710-0289 (Superseded to 910-0289)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.53

14300

108

Clutch Blade Housing Ass'y.

Part# 14300

OEM Warranty Repair Part for MTD

Not available

741-0124

109

Ball Bearing

Part# 741-0124 (Superseded to 941-0600)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $18.53

732-0396

110

Compression Spring

Part# 732-0396

OEM Warranty Repair Part for MTD

Not available

710-0875

111

Hex Wash. TT-Tap Scr. 1/4-20 x.75" Lg.

Part# 710-0875

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.88

731-0520

112

Ball Block

Part# 731-0520

OEM Warranty Repair Part for MTD

Not available

741-0326

113

Steel Ball

Part# 741-0326

OEM Warranty Repair Part for MTD

Not available

732-0397

114

Ext. Spring 1.75" Lg.

Part# 732-0397

OEM Warranty Repair Part for MTD

Not available

14304

115

Clutching Cone

Part# 14304

OEM Warranty Repair Part for MTD

Not available

14306

116

Clutch Housing

Part# 14306

OEM Warranty Repair Part for MTD

Currently unavailable

756-0504

117

Fixed Pulley Adaptor

Part# 756-0504

OEM Warranty Repair Part for MTD

Not available

710-0618

118

Flat Hd. B-Scr. 1/4-20 x .62" Lg.

Part# 710-0618

OEM Warranty Repair Part for MTD

Not available

748-0319

119

Flywheel

Part# 748-0319

OEM Warranty Repair Part for MTD

Not available

748-0320

120

Flywheel Adaptor

Part# 748-0320

OEM Warranty Repair Part for MTD

Not available

710-0405

121

Curved Carr. Bolt 5/16-18 x 1.75" Lg.

Part# 710-0405 (Superseded to 710-1174)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.03

13773

125

Engine Mntg. Cover plate Ass'y.

Part# 13773

OEM Warranty Repair Part for MTD

Currently unavailable

736-0405

126

Serrated Wash. 1.0" I.D.

Part# 736-0405

OEM Warranty Repair Part for MTD

Not available

736-0169

127

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.64

710-1007

128

Hex Wash. Hd. Tap Scr. 3/8-16 x 1.51" Lg.

Part# 710-1007

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.53

746-0405

129

Control Cable-46"

Part# 746-0405 (Superseded to 946-0405)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $50.50

14305

130

Brake Cup Cone

Part# 14305

OEM Warranty Repair Part for MTD

Currently unavailable

747-0541

131

Front Catcher Frame

Part# 747-0541

OEM Warranty Repair Part for MTD

Not available

731-0885

133

Side Chute Deflector Ass'y.

Part# 731-0885

OEM Warranty Repair Part for MTD

Not available

753-0431

135

Kit Control Housing Comp.

Part# 753-0431

OEM Warranty Repair Part for MTD

Not available

736-0108

142

Fl-Wash. .510" I.D. x .75"

Part# 736-0108 (Superseded to 936-0108)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.87

736-0258

150

Fl-Wash. 3/8" I.D. x 1.0"

Part# 736-0258

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-0180

152

Hex Bolt 3/8-24 x .75" Lg.

Part# 710-0180

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.76

710-0323

155

Truss Mach. Scr. 5/16-18 x .75" Lg.

Part# 710-0323

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.23

731-0759

156

Plastic Tubing

Part# 731-0759

OEM Warranty Repair Part for MTD

Not available

710-0347

161

Hex Bolt 3/8-16 x 1.75" Lg.

Part# 710-0347

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.52

734-1517

162

Wheel Ass'y. Comp. 8 x 2

Part# 734-1517 (Superseded to 734-1517B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $48.26

741-0267

163

Flange Ball Brg. 3/8" I.D.

Part# 741-0267

OEM Warranty Repair Part for MTD

Not available

741-0484

164

Flange Ball Brg. .501" I.D.

Part# 741-0484 (Superseded to 941-0484)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.46

750-0434

165

Spacer

Part# 750-0434

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

736-0105

166

Bell-Wash. .400" I.D. x .88

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-0588

167

Hex Wash. Hd. B-Tap Scr. 1/4 -20

Part# 710-0588 (Superseded to 710-0788)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.97

736-0329

168

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

741-0492

169

Block Bushing

Part# 741-0492 (Superseded to 741-0492A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.34

17060

170

Axle Ass'y.

Part# 17060

OEM Warranty Repair Part for MTD

Not available

17059

171

Height Adj. Bracket

Part# 17059

OEM Warranty Repair Part for MTD

Not available

710-0642

172

Hex Wash. Hd. B-Tap Scr. 1/4-20 x .75" Lg.

Part# 710-0642

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.21

720-0190

173

Knob

Part# 720-0190 (Superseded to 720-0426)

OEM Warranty Repair Part for MTD

Not available

732-0553

174

Spring Lever

Part# 732-0553

OEM Warranty Repair Part for MTD

Currently unavailable

731-0865

175

Plastic Front End

Part# 731-0865 (Superseded to 931-0865C)

OEM Warranty Repair Part for MTD

Not available

710-1001

176

Truss B-Tap Scr. 5/16 x .75" Lg.

Part# 710-1001 (Superseded to 710-1242)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0271

177

Bell-Wash. 5/16" I.D. x 5/8

Part# 736-0271 (Superseded to 936-0271)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

8869-400-8

Hardware Pack

Part# 8869-400-8

OEM Warranty Repair Part for MTD

Currently unavailable
